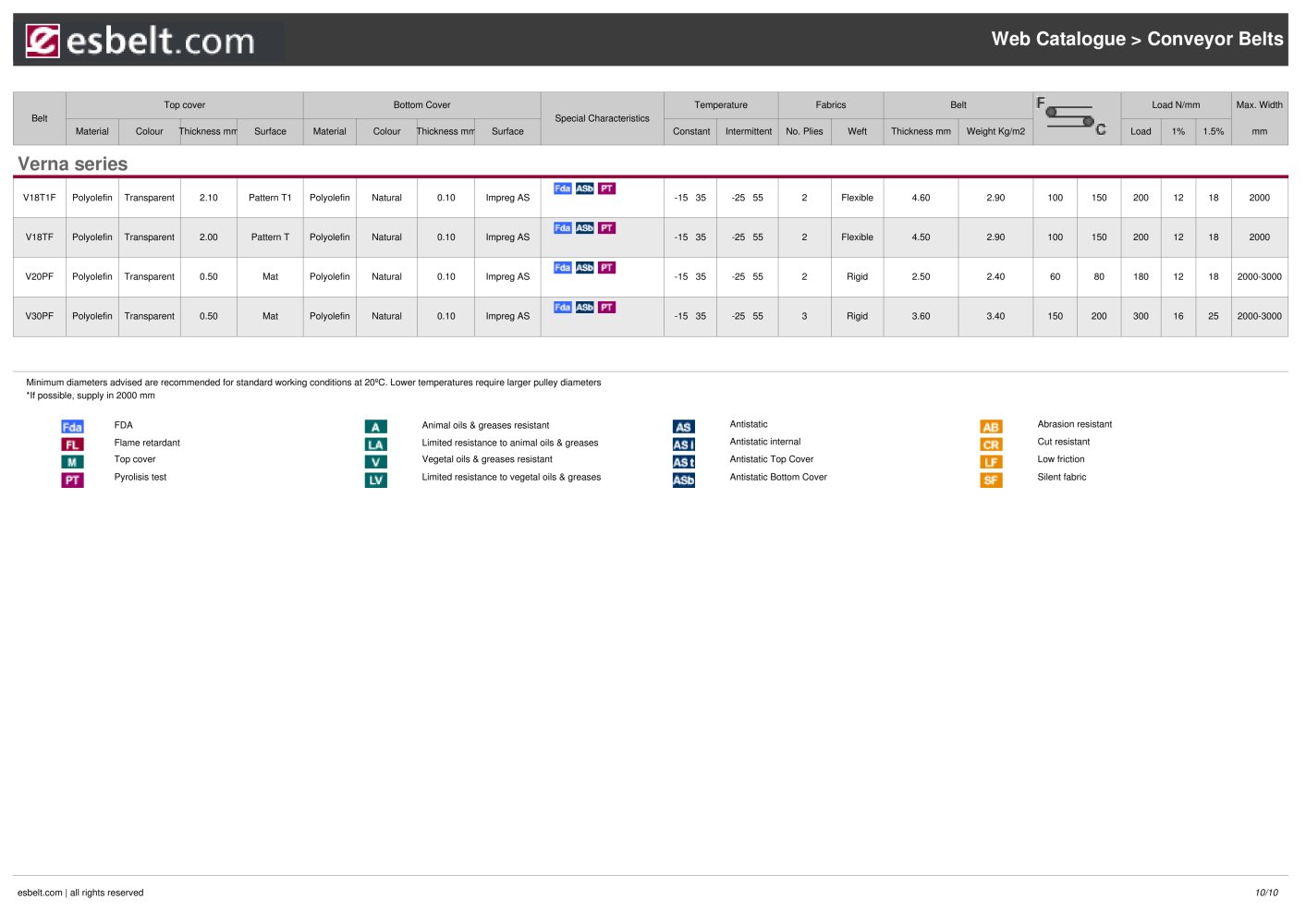

Web Catalogue > Conveyor Belts

Top cover Bottom Cover Temperature Fabrics Belt Load N/mm Max. Widthmm Belt Special Characteristics Material Colour Thickness mm Surface Material Colour Thickness mm Surface Constant Intermittent No. Plies Weft Thickness mm Weight Kg/m2 Load 1% 1.5%

Verna series

V18T1F Polyolefin Transparent 2.10 Pattern T1 Polyolefin Natural 0.10 Impreg AS -15 35 -25 55 2 Flexible 4.60 2.90 100 150 200 12 18 2000 V18TF Polyolefin Transparent 2.00 Pattern T Polyolefin Natural 0.10 Impreg AS -15 35 -25 55 2 Flexible 4.50 2.90 100 150 200 12 18 2000 V20PF Polyolefin Transparent 0.50 Mat Polyolefin Natural 0.10 Impreg AS -15 35 -25 55 2 Rigid 2.50 2.40 60 80 180 12 18 2000-3000 V30PF Polyolefin Transparent 0.50 Mat Polyolefin Natural 0.10 Impreg AS -15 35 -25 55 3 Rigid 3.60 3.40 150 200 300 16 25 2000-3000 Minimum diameters advised are recommended for standard working conditions at 20ºC. Lower temperatures require larger pulley diameters*If possible, supply in 2000 mm FDA Animal oils & greases resistant Antistatic Abrasion resistant Flame retardant Limited resistance to animal oils & greases Antistatic internal Cut resistant Top cover Vegetal oils & greases resistant Antistatic Top Cover Low friction Pyrolisis test Limited resistance to vegetal oils & greases Antistatic Bottom Cover Silent fabric esbelt.com | all rights reserved 10/10
