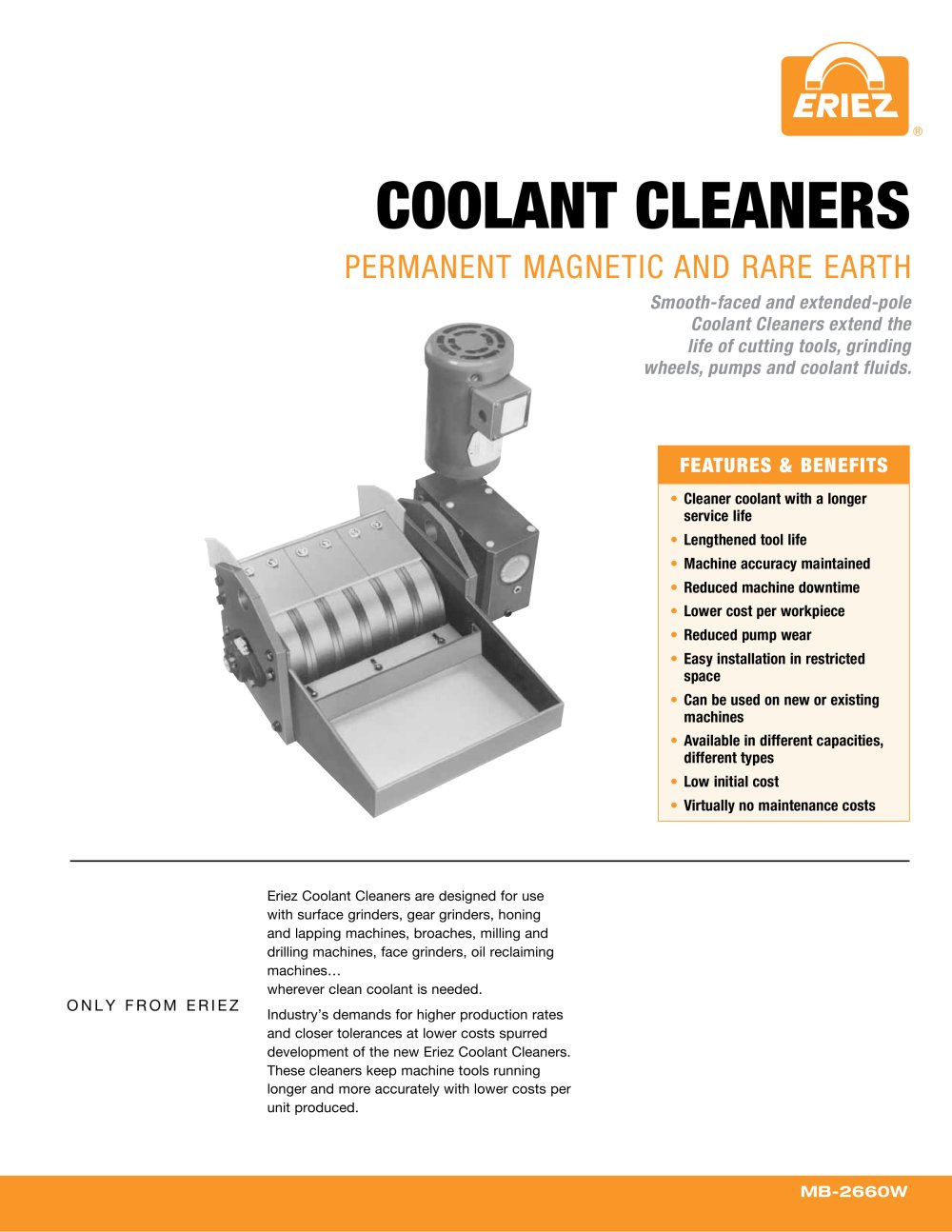

Eriez Coolant Cleaners are designed for use with surface grinders, gear grinders, honing and lapping machines, broaches, milling and drilling machines, face grinders, oil reclaiming machines… wherever clean coolant is needed. Industry’s demands for higher production rates and closer tolerances at lower costs spurred development of the new Eriez Coolant Cleaners. These cleaners keep machine tools running longer and more accurately with lower costs per unit produced. MB-2660W • Cleaner coolant with a longer service life • Lengthened tool life • Machine accuracy maintained • Reduced machine downtime • Lower cost per workpiece • Reduced pump wear • Easy installation in restricted space • Can be used on new or existing machines • Available in different capacities, different types • Low initial cost • Virtually no maintenance costs Only from Erie z FEATURES & Benef its ® COOLANT CLEANERS PERMANENT MAGNETIC AND RARE EARTH Smooth-faced and extended-pole Coolant Cleaners extend the life of cutting tools, grinding wheels, pumps and coolant fluids.

 Open the catalogue to page 1

® 2 This page intentionally left blank

 Open the catalogue to page 2

® 3 Permanent-Magnetic Coolant Cleaners INDEXING MODELS IS AND IE Indexing Coolant Cleaners from Eriez, available with either a smooth-faced or extended-pole roll, are used when both ferrous and non-ferrous contaminants are present. No replaceable filter medium is required. The magnetic roll, under which the coolant flows, rotates intermittently. The magnetically attracted material builds up a mass of fine hair-like particles between the magnetic roll and the housing. This accumulation serves as a filter medium to entrap fine non-magnetic particles such as grinding wheel scale or other coolant...

 Open the catalogue to page 3

® 4 For optimum separation derate by 20-25% Type Coolant NR–Not Recommended Water Oil Oil Soluble 40 SSU 100 SSU MODEL GPM LPM GPM LPM GPM LPM CS5-7 21 79 13 49 11 42 CS5-10 30 114 19 72 16 61 CS5-13 39 148 25 95 21 79 CS5-20 60 227 38 144 32 121 CS5-27 81 307 51 193 43 163 CE5-7 17 64 11 42 7 26 CE5-10 24 91 15 57 10 38 CE5-13 31 117 20 76 13 49 CE5-20 48 182 30 114 20 76 CE5-27 65 246 41 155 27 102 IS5-7 11 42 7 26 NR IS5-10 15 57 10 38 NR IS5-13 20 76 13 49 NR IS5-20 30 114 20 76 NR IS5-27 41 155 27 102 NR IE5-7 8 30 6 23 NR IE5-10 12 45 8 30 NR IE5-13 16 61 10 38 NR IE5-20 24 91 16 61 NR IE5-27...

 Open the catalogue to page 4

® 5 Dimension WEIGHTS Model A Model CS Model CE Model IS Model IE Number in mm lb kg lb kg lb kg lb kg 7 7 178 110 50 116 53 135 61 141 64 10 10-1/2 267 130 59 138 63 155 70 163 74 13 13-3/4 349 150 68 161 73 175 79 186 84 20 20-1/2 521 195 88 212 96 220 100 237 108 27 27-1/4 692 235 107 257 117 260 118 282 128 Power Requirements: 1/4 HP, 230/460V, 3 PH, 60 cy; 0.65 amp @ 460V. Control (for Models IS and IE only): NEMA 12 enclosure, 10” x 12” x 5” (254 x 305 x 127 mm); Weight: 25 lbs (11 kg). Specify voltage for models IS and IE. Dimensions and specifications are subject to change without notice....

 Open the catalogue to page 5

® 6 SPECIFICATIONS / SERIES 8 – SINGLE ROLL Dimension WEIGHTS Model A Model CS Model CE Model IS Model IE Number in mm lb kg lb kg lb kg lb kg 21 22 559 360 163 370 168 385 175 395 179 35 36 914 550 249 560 254 575 261 585 265 NOTE: Motor can be mounted in either the 3, 9 or 12 o’clock position on all Series 5 and Series 8 Coolant Cleaners. Motors normally mounted as shown can be mounted on opposite side – optional. Scraper normally mounted as shown can be mounted at 30° downslope. Also, 45° downslope option for Series 8. Motorized automatic scraper is availablefor all units. Power Requirements:...

 Open the catalogue to page 6

® 7 Dimension WEIGHTS Model A B C Model CS Model CE Model IS Model IE Number in mm in mm in mm lb kg lb kg lb kg lb kg 49 59 1499 28-3/4 730 21-3/4 552 775 351 790 358 800 361 815 370 70 80 2023 35-3/4 908 35-3/4 908 1075 487 1100 499 1100 499 1125 510 Power Requirements: 1/4 HP, 230/460V, 3 PH, 60 cy; .65 amp @ 460V. Control (for Models IS and IE only): NEMA 12 enclosure, 10” x 12” x 5” (254 x 305 x 127 mm); Weight: 25 lbs (11 kg). Specify voltage for models IS and IE Dimensions and specifications are subject to change without notice. MODELS CS8, CE8, IS8 and IE8 Continuous or Indexing Adjustable...

 Open the catalogue to page 7

® 8 This page intentionally left blank

 Open the catalogue to page 8

® 9 FEATURES • Unique radial-circuit design • Deep magnetic field • Removes particles as small as 3-microns • Field strengths in excess of 5,000 gauss • Improved separation effectiveness • Adjustable discharge mechanism • Self-cleaning • Continuous operation • Low maintenance Rare-Earth Coolant Cleaners Eriez Xtractor Rare-Earth Coolant Cleaner utilizes a powerful magnetic field designed to maximize capture and remove fine ferrous particles from a coolant. Its unique magnetic-circuit design makes the separator much stronger than all other conventional permanent-magnetic separators, which use alnico...

 Open the catalogue to page 9

10 Rare-Earth Coolant Cleaners SPECIFICATIONS ® *Model Drum **Flow Shipping Number Width Drive Rate Weight A B C D E F G H J K 11 in 1/4 hp 30 gpm 250 lb in 12-7/8 27-3/8 15-1/8 12-7/8 8-7/8 6-7/16 — — — 25-1/8 RES-11 280 mm .19 kw 114 lpm 114 kg mm 327 695 384 327 225 164 — — — 638 25 in 1/4 hp 60 gpm 365 lb in 26-7/8 41-3/8 29-1/8 26-7/8 22-7/8 6-15/16 1 13 13 25-1/8 RES-25 635 mm .19 kw 227 lpm 166 kg mm 683 1051 740 683 581 176 1 330 330 638 36 in 1/3 hp 90 gpm 470 lb in 37-7/8 52-3/8 40-1/8 37-7/8 33-7/8 6-15/16 2 12 24 25-1/8 RES-36 915 mm .25 kw 341 lpm 213 kg mm 962 1330 1019 962 860 176...

 Open the catalogue to page 10

® 11 Eriez products represent quality, durability, and a long-standing commitment to leadership in thechnology. A major expression of that commitment is the Eriez Technical Center, industry’s most complete magnetic and vibratory testing facility. Located in Erie, Pennsylvania, adjacent to Eriez world headquarters, the Technical Center is equipped with more than 100 types of permanent magnetic electromagnetic, vibratory, screening, electronic metal detection equipment and eddy current separator. This equipment is used to separate, purify, concentrate, move, feed, and recover a variety of materials....
