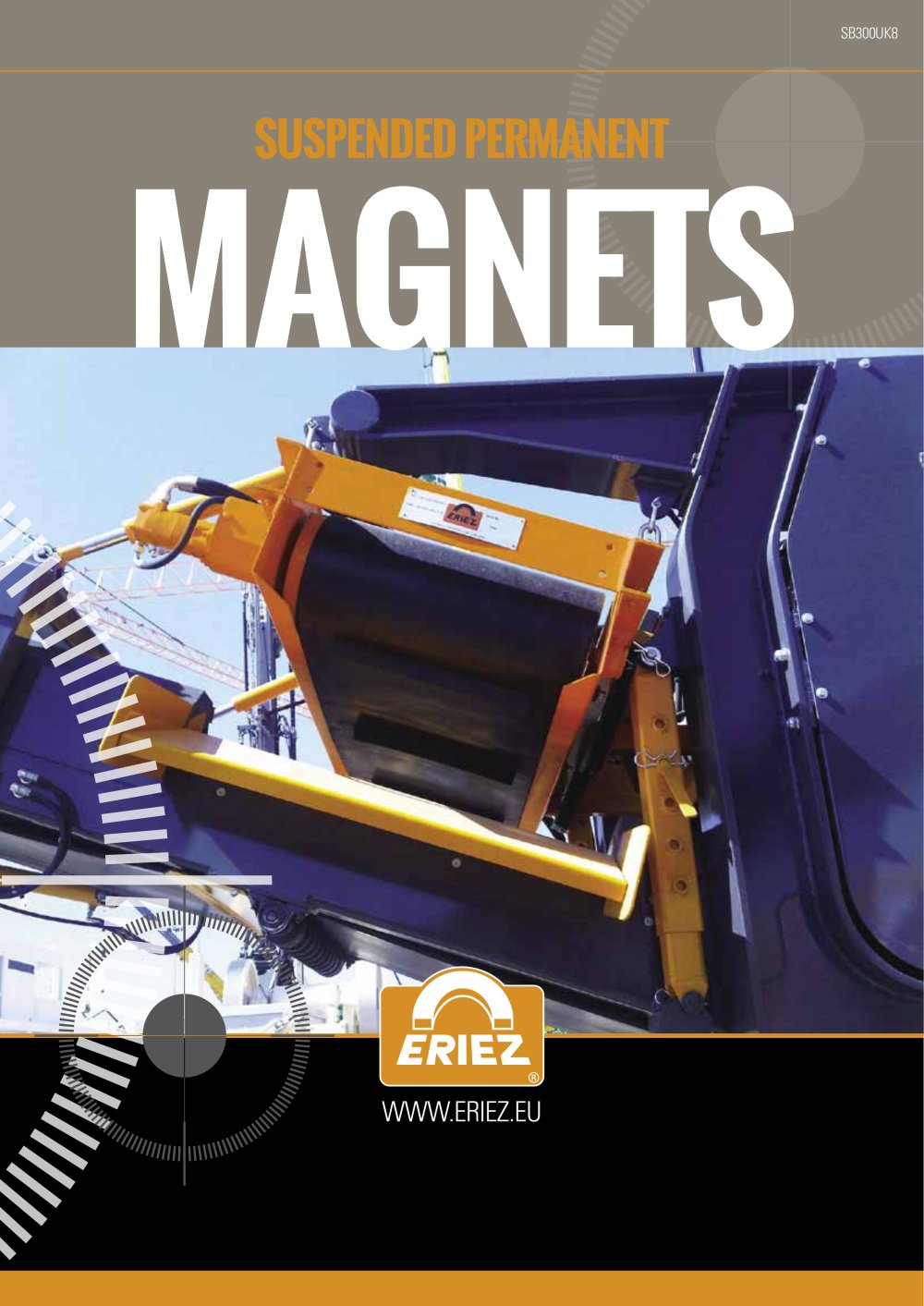

SB300 UK5 Suspended Permanent Magnets Models CP, OP and TP Suspended permanent magnetic separators or overband magnets are positioned over moving conveyor belts or in a chute for the purpose of removing ferrous contaminants from bulk product flows. Applications Quarry industry Recycling industry Any other industry where dry ferrous contamination is found on a conveyor belt or chute system Magnet Strength Eriez offers three permanent magnetic field configurations, CP, OP and TP, providing different field strengths and field profiles. Our highly trained Application Engineering staff will recommend the best model for each specific model. CP ~ ideal for mobile crushers and steel can separation. OP ~ suitable for separating smaller tramp metal. TP ~ designed for applications such as removing nails from conveyed shredded wood. Eriez also offers an extensive range of Suspended Electromagnetic Separators (ref SB 320). Magnet Selection The model of magnetic separator to be selected is dependent upon the specific application. Eriez Engineers would need the following information to determine the optimal size and configuration for a particular requirement: • Material type • Material bulk density • Material condition • Material size • Type and minimum size of tramp iron • Maximum lump size • Conveyor belt/chute width • Conveyor belt speed • Conveyor belt/chute dimensions and incline • Angle of 'troughing' idlers • Machinery to be protected • Head pulley diameter • Head pulley material ®
