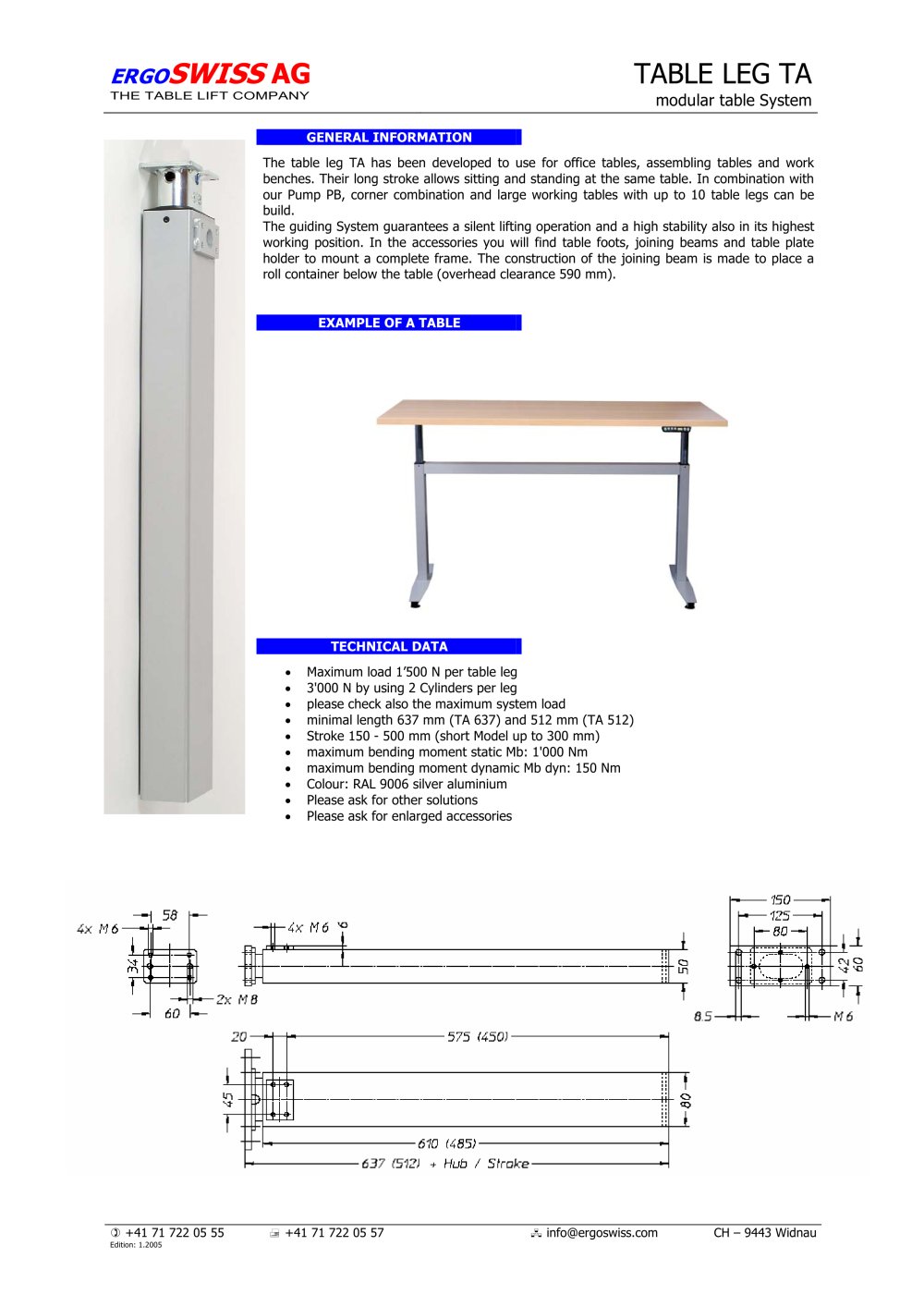

ERGOSWISS AG GENERAL INFORMATION TABLE LEG TA modular table System THE TABLE LIFT COMPANY The table leg TA has been developed to use for office tables, assembling tables and work benches. Their long stroke allows sitting and standing at the same table. In combination with our Pump PB, corner combination and large working tables with up to 10 table legs can be build. The guiding System guarantees a silent lifting operation and a high stability also in its highest working position. In the accessories you will find table foots, joining beams and table plate holder to mount a complete frame. The construction of the joining beam is made to place a roll container below the table (overhead clearance 590 mm). EXAMPLE OF A TABLE TECHNICAL DATA · · · · · · · · · · Maximum load 1'500 N per table leg 3'000 N by using 2 Cylinders per leg please check also the maximum system load minimal length 637 mm (TA 637) and 512 mm (TA 512) Stroke 150 - 500 mm (short Model up to 300 mm) maximum bending moment static Mb: 1'000 Nm maximum bending moment dynamic Mb dyn: 150 Nm Colour: RAL 9006 silver aluminium Please ask for other solutions Please ask for enlarged accessories +41 71 722 05 55 Edition: 1.2005 +41 71 722 05 57 info@ergoswiss.com CH ­ 9443 Widnau
