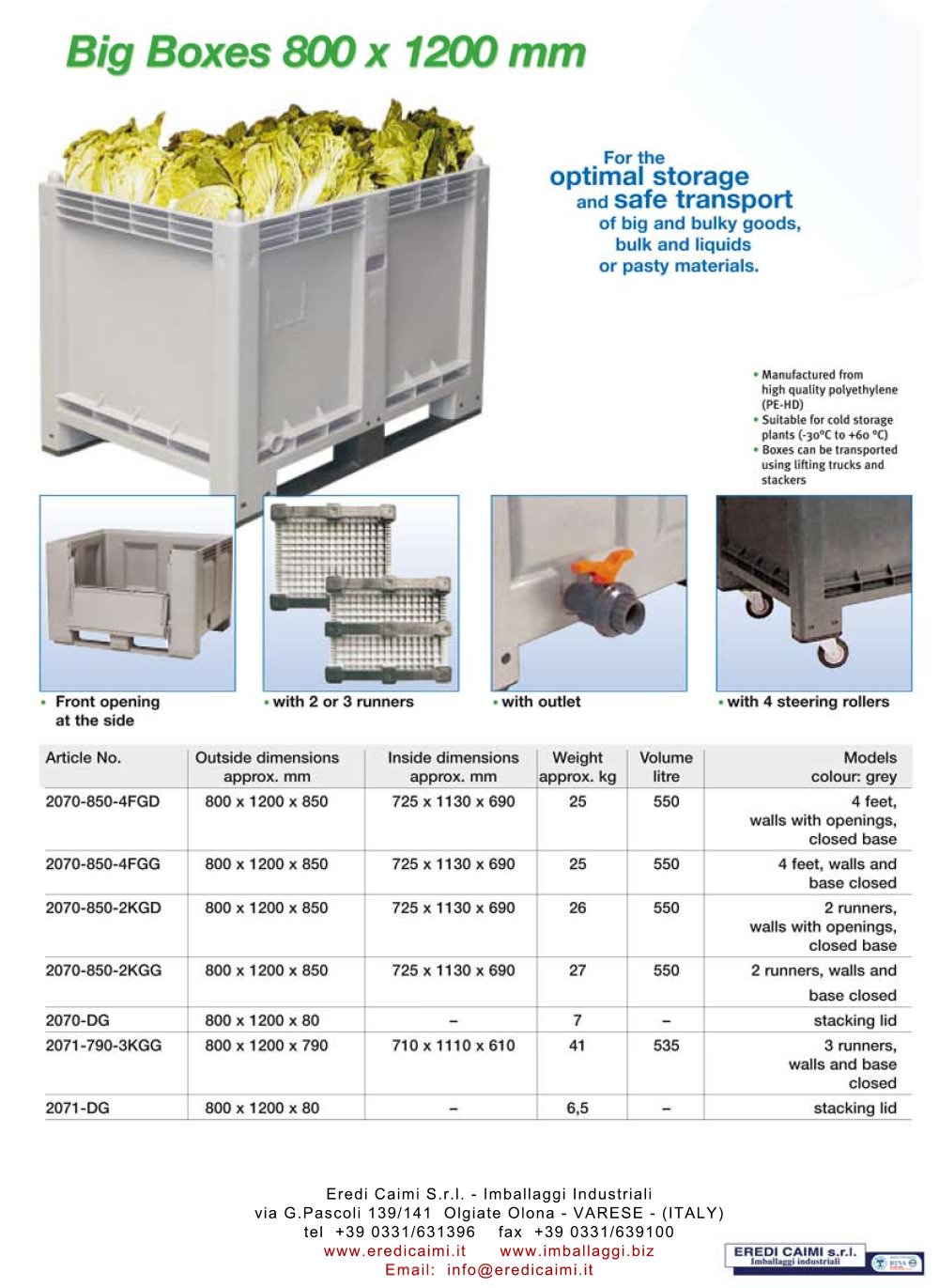

Big Boxes 800 x 1200 mm

•' ^;'^: •" A

For the

optimal storage and safe transport

of big and bulky goods,

bulk and liquids or pasty materials.

■ Manufactured from

high quality polyethylene

■ Suitable Tor cold storage planls i-jt^Z to +60 "Q

- Boms can be transported using lifting trucks and slackers


' Front opening at the side	• with 2 or 3 runners ■ with outlet				• with 4 steering rollers
Àmble No.	Outside dimensions apprax. mm	Inside dimensions approx. mm	Weight appro*, kg	Volume litre	Models colour; grey
2070-B50-4FGD	800x1200x850	725x1130 x 690	25	550	4 feet, walls with openings, closed base
2070-850-4FGG	800x1200 x 650	725x1130 x 690	25	550	4 feet, walls and base closed
2070-850-2KGD	800x1200 x 850	725 x 1130x690	26	550	2 runners, walls with openings, closed base
2070-850-2KGG	800x1200 x 850	725 x 1130 x 690	27	550	2 runners, walls and base closed
2070-DG	800x1200 x 80	-	7	-	stacking lid
2071-790-3KGG	800x1200x790	710 x 1110x610	41	535	3 runners, walls end base closed
2071-DG	800x1200x80	-	6.5	-	stacking lid

Eredi Caimi S.r.l. - Imballaggi Industriali via G.Pascoli 139/141 Olgiate Olona - VARESE - (ITALY) tei +39 0331/631396 fax +39 0331/639100
