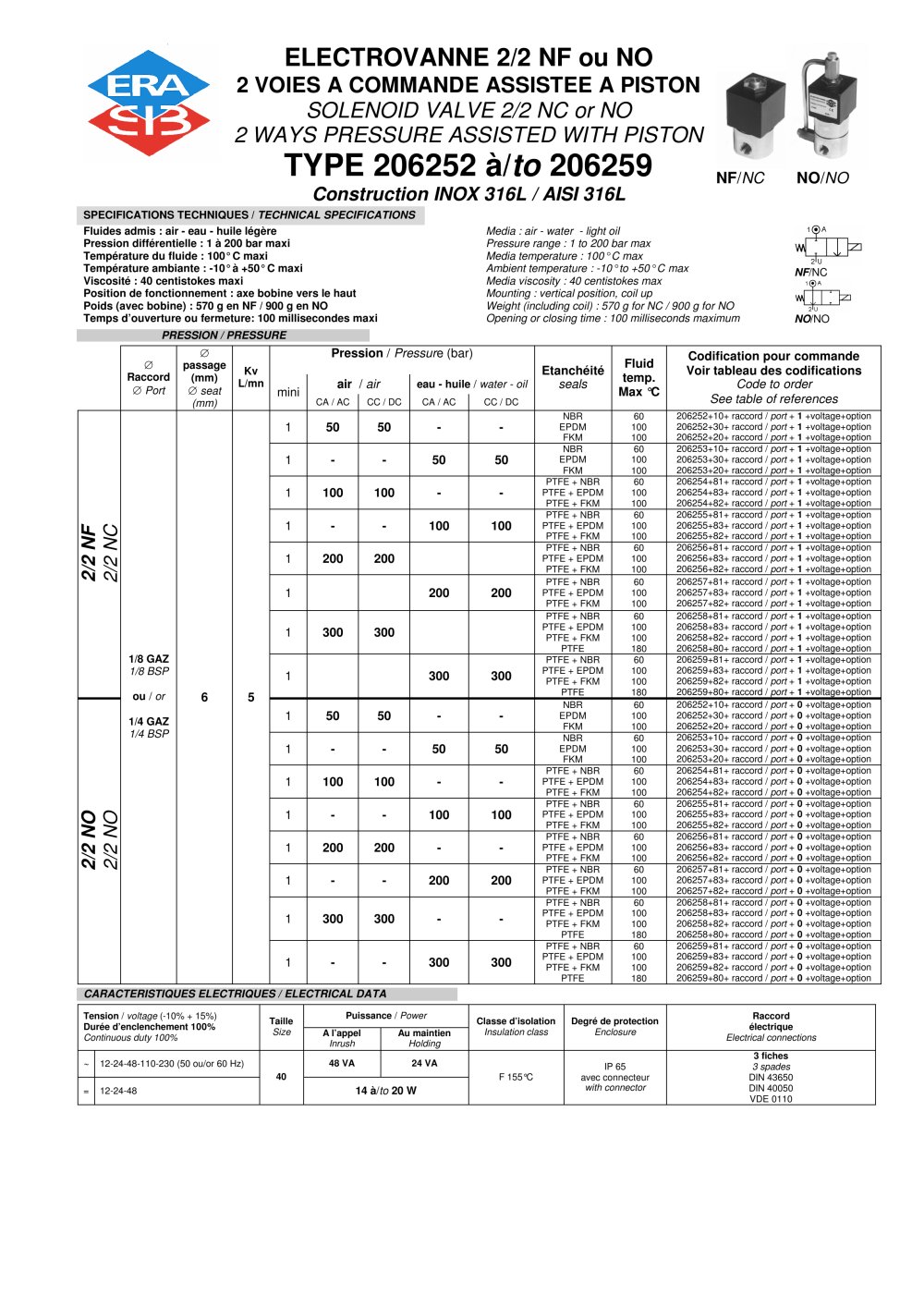

ELECTROVANNE 2/2 NF ou NO 2 VOIES A COMMANDE ASSISTEE A PISTON
SOLENOID VALVE 2/2 NC or NO 2 WAYS PRESSURE ASSISTED WITH PISTON
TYPE 206252 à/to 206259
Construction INOX 316L /AÏS! 316L
NF/A/C
NO/NO
SPECIFICATIONS TECHNIQUES / technical specifications
Fluides admis : air - eau - huile légère
Pression différentielle : 1 à 200 bar maxi
Température du fluide : 100° C maxi
Température ambiante : -10° à +50° C maxi
Viscosité : 40 centistokes maxi
Position de fonctionnement : axe bobine vers le haut
Poids (avec bobine) : 570 g en NF / 900 g en NO
Temps d'ouverture ou fermeture: 100 millisecondes maxi
pression / pressure
Media : air - water - light oil
Pressure range : 1 to 200 bar max
Media temperature : 100° C max
Ambient temperature : -10° to +50° C max
Media viscosity : 40 centistokes max
Mounting : vertical position, coil up
Weight (including coil) : 570 g for NC / 900 g for NO
Opening or closing time : 100 milliseconds maximum
no/no
0
Raccord
Port
0
passage (mm)
seat (mm)
Kv L/mn
mini
Pres air
CA/AC
sion / Pre
/ air
CC/DC
ìssure (bar
eau - huile
CA/AC
)
/ water - oil CC/DC
Etanchéité
seals
Fluid temp. Max°C
Codification pour commande Voir tableau des codifications
Code to order See table of références
50
50
-
-
NBR EPDM FKM
60 100 100
206252+10+ raccord/ port + 1 +voltage+option 206252+30+ raccord / port + 1 +voltage+option 206252+20+ raccord / port + 1 +voltage+option
-
-
50
50
NBR EPDM FKM
60 100 100
206253+10+ raccord/ port + 1 +voltage+option 206253+30+ raccord / port + 1 +voltage+option 206253+20+ raccord / port + 1 +voltage+option
100
100
-
-
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206254+81+ raccord / port + 1 +voltage+option 206254+83+ raccord / port + 1 +voltage+option 206254+82+ raccord / port + 1 +voltage+option
-
-
100
100
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206255+81+ raccord / port + 1 +voltage+option 206255+83+ raccord / port + 1 +voltage+option 206255+82+ raccord / port + 1 +voltage+option
200
200
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206256+81+ raccord / port + 1 +voltage+option 206256+83+ raccord / port + 1 +voltage+option 206256+82+ raccord / port + 1 +voltage+option
200
200
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206257+81+ raccord / port + 1 +voltage+option 206257+83+ raccord / port + 1 +voltage+option 206257+82+ raccord / port + 1 +voltage+option
300
300
PTFE + NBR PTFE + EPDM PTFE + FKM PTFE
60
100 100 180
206258+81+ raccord / port + 1 +voltage+option 206258+83+ raccord / port + 1 +voltage+option 206258+82+ raccord / port + 1 +voltage+option 206258+80+ raccord / port + 1 +voltage+option
300
300
PTFE + NBR PTFE + EPDM PTFE + FKM PTFE
60
100 100
180
206259+81+ raccord / port + 1 +voltage+option 206259+83+ raccord / port + 1 +voltage+option 206259+82+ raccord / port + 1 +voltage+option 206259+80+ raccord / port + 1 +voltage+option
50
50
-
-
NBR EPDM FKM
60
100
100
206252+10+ raccord / port + 0 +voltage+option 206252+30+ raccord / port + 0 +voltage+option 206252+20+ raccord / port + 0 +voltage+option
-
-
50
50
NBR EPDM FKM
60
100
100
206253+10+ raccord / port + 0 +voltage+option 206253+30+ raccord / port + 0 +voltage+option 206253+20+ raccord / port + 0 +voltage+option
100
100
-
-
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206254+81+ raccord / port + 0 +voltage+option 206254+83+ raccord / port + 0 +voltage+option 206254+82+ raccord / port + 0 +voltage+option
-
-
100
100
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206255+81+ raccord / port + 0 +voltage+option 206255+83+ raccord / port + 0 +voltage+option 206255+82+ raccord / port + 0 +voltage+option
200
200
-
-
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206256+81+ raccord / port + 0 +voltage+option 206256+83+ raccord / port + 0 +voltage+option 206256+82+ raccord / port + 0 +voltage+option
-
-
200
200
PTFE + NBR PTFE + EPDM PTFE + FKM
60
100
100
206257+81+ raccord / port + 0 +voltage+option 206257+83+ raccord / port + 0 +voltage+option 206257+82+ raccord / port + 0 +voltage+option
300
300
-
-
PTFE + NBR PTFE + EPDM PTFE + FKM PTFE
60
100 100
180
206258+81+ raccord / port + 0 +voltage+option 206258+83+ raccord / port + 0 +voltage+option 206258+82+ raccord / port + 0 +voltage+option 206258+80+ raccord / port + 0 +voltage+option
-
-
300
300
PTFE + NBR PTFE + EPDM PTFE + FKM PTFE
60
100 100 180
206259+81+ raccord / port + 0 +voltage+option 206259+83+ raccord / port + 0 +voltage+option 206259+82+ raccord / port + 0 +voltage+option 206259+80+ raccord / port + 0 +voltage+option
1/8 GAZ
1/8 BSP
ou / or
o o
SN
1/4 GAZ
1/4 BSP
caractéristiques électriques/electrical data
Tension / voltage (-10% + 15%) Durée d'enclenchement 100%
Continuous duty 100%
Taille
Size
Puissance / Power
Classe d'isolation
Insulation class
Degré de protection
Enclosure
Raccord électrique
Electrical connections
A l'appel
Inrush
Au maintien
Holding
12-24^8-110-230 (50 ou/or 60 Hz)
40
48 VA
24 VA
F155°C
IP 65 avec connecteur with connector
3 fiches
3 spades DIN 43650 DIN 40050 VDE 0110
=
12-24^8
14à/to 20 W
