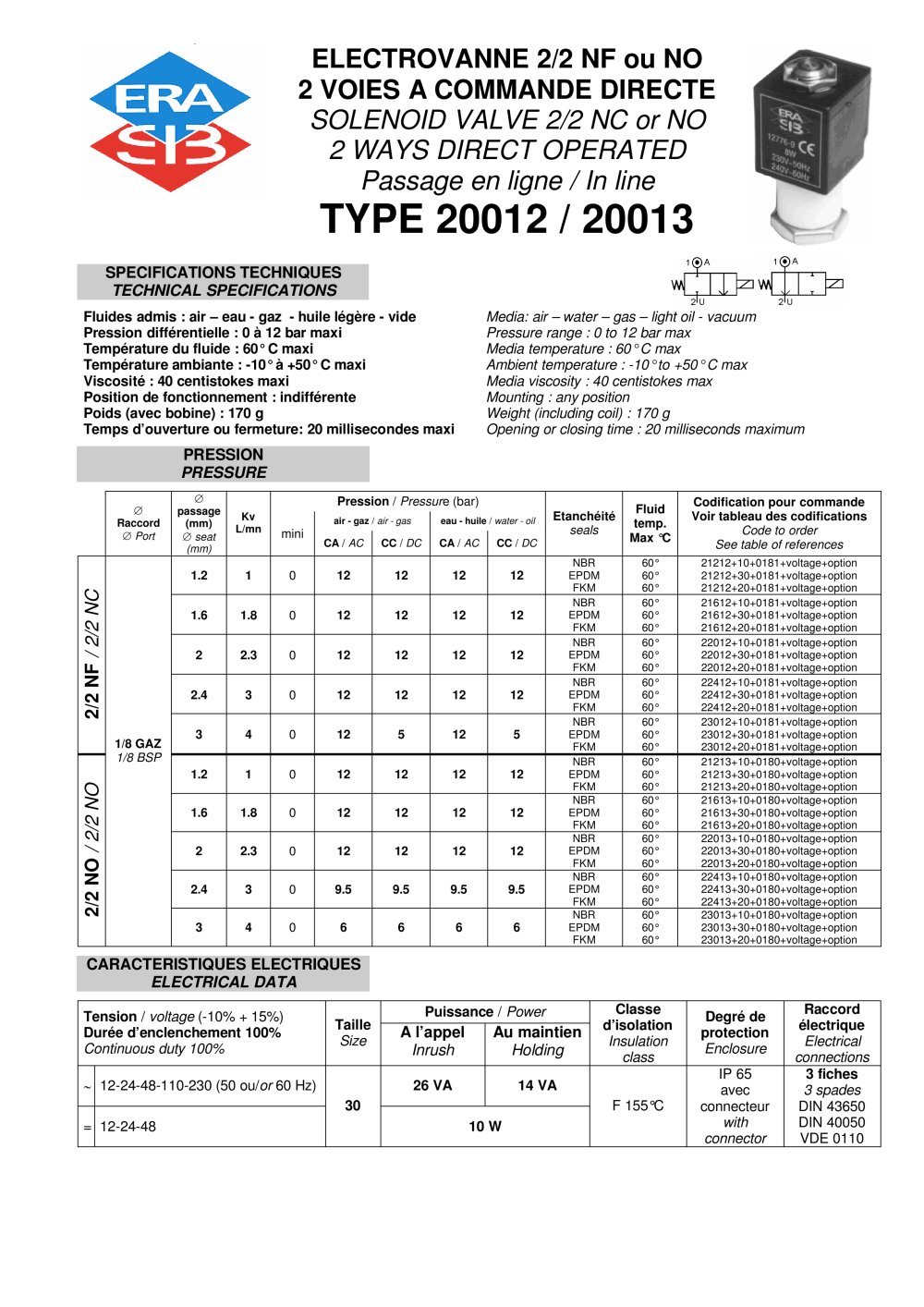

ELECTROVANNE 2/2 NF ou NO 2 VOIES A COMMANDE DIRECTE
SOLENOID VALVE 2/2 NC or NO 2 WAYS DIRECT OPERATED Passage en ligne / In line
TYPE 20012/20013
SPECIFICATIONS TECHNIQUES technical specifications
Fluides admis : air - eau - gaz - huile légère - vide Pression différentielle : 0 à 12 bar maxi Température du fluide : 60° C maxi Température ambiante : -10° à +50° C maxi Viscosité : 40 centistokes maxi Position de fonctionnement : indifférente Poids (avec bobine) : 170 g
Temps d'ouverture ou fermeture: 20 millisecondes maxi
PRESSION pressure
Media: air-water- gas - light oil - vacuum
Pressure range : 0to 12 bar max
Media temperature : 60° C max
Ambient temperature : -10° to +50° C max
Media viscosity : 40 centistokes max
Mounting : any position
Weight (including coil) : 170 g
Opening or closing time : 20 milliseconds maximum
li­eg
0
Raccord
Port
0
passage (mm)
seat (mm)
Kv L/mn
mini
Press
air - gaz CA / AC
on / Press
/ air-gas CC / DC
ure (bar)
eau - huile CA / AC
/ water - oil CC / DC
Etanchéité
seals
Fluid temp. Max°C
Codification pour commande Voir tableau des codifications
Code to order See table of references
1.2
1
0
12
12
12
12
NBR EPDM FKM
60° 60° 60°
21212+10+0181+voltage+option 21212+30+0181+voltage+option 21212+20+0181+voltage+option
1.6
1.8
0
12
12
12
12
NBR EPDM FKM
60° 60° 60°
21612+10+0181+voltage+option 21612+30+0181+voltage+option 21612+20+0181+voltage+option
2
2.3
0
12
12
12
12
NBR EPDM FKM
60° 60° 60°
22012+10+0181+voltage+option 22012+30+0181+voltage+option 22012+20+0181+voltage+option
2.4
3
0
12
12
12
12
NBR EPDM FKM
60° 60° 60°
22412+10+0181+voltage+option 22412+30+0181+voltage+option 22412+20+0181+voltage+option
3
4
0
12
5
12
5
NBR EPDM
FKM
60° 60°
60°
23012+10+0181+voltage+option 23012+30+0181+voltage+option 23012+20+0181+voltage+option
1.2
1
0
12
12
12
12
NBR
EPDM
FKM
60°
60°
60°
21213+10+0180+voltage+option 21213+30+0180+voltage+option 21213+20+0180+voltage+option
1.6
1.8
0
12
12
12
12
NBR
EPDM
FKM
60°
60°
60°
21613+10+0180+voltage+option 21613+30+0180+voltage+option 21613+20+0180+voltage+option
2
2.3
0
12
12
12
12
NBR
EPDM
FKM
60°
60°
60°
22013+10+0180+voltage+option 22013+30+0180+voltage+option 22013+20+0180+voltage+option
2.4
3
0
9.5
9.5
9.5
9.5
NBR
EPDM
FKM
60°
60°
60°
22413+10+0180+voltage+option 22413+30+0180+voltage+option 22413+20+0180+voltage+option
3
4
0
6
6
6
6
NBR
EPDM FKM
60°
60° 60°
23013+10+0180+voltage+option 23013+30+0180+voltage+option 23013+20+0180+voltage+option
1/8 GAZ
1/8 BSP
O
CARACTERISTIQUES ELECTRIQUES electrical data
Tension / voltage (-10% + 15%) Durée d'enclenchement 100%
Continuous duty 100%
Taille
Size
Puissance / Power
Classe d'isolation
Insulation class
Degré de protection
Enclosure
Raccord électrique
Electrical connections
A l'appel
Inrush
Au maintien
Holding
12-24-48-110-230 (50 ou/or 60 Hz)
30
26 VA
14 VA
F155°C
IP 65
avec connecteur
with connector
3 fiches
3 spades DIN 43650 DIN 40050 VDE 0110
=
12-24-48
10 W

pageCatalog pdf di En 2012-02-07-16
