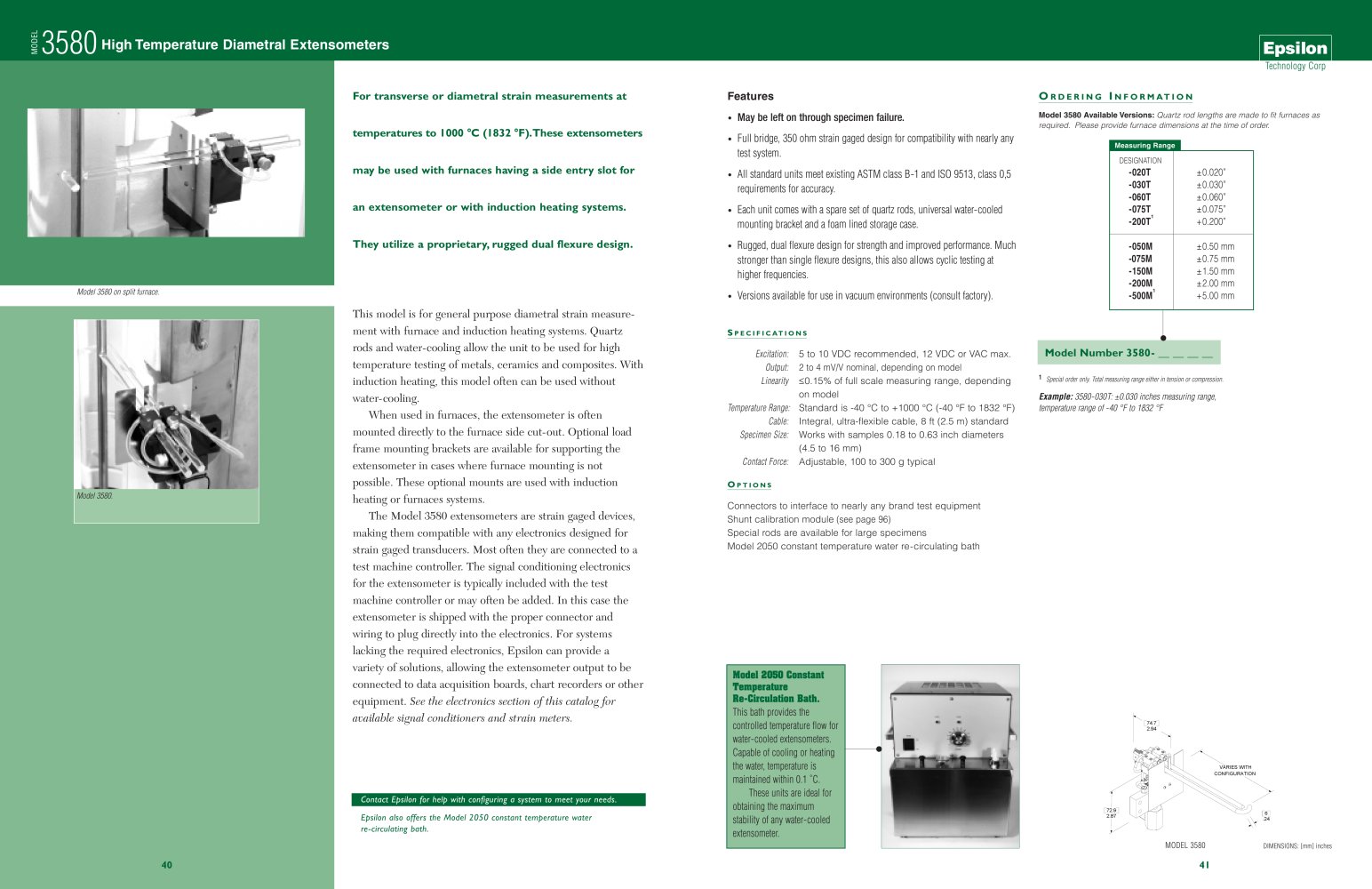

Model 3580 Diametral High Temperature Extensometers - 33099 3580

High Temperature Diametral Extensometers Epsilon

Technology Corp

For transverse or diametral strain measurements attemperatures to 1000 °C (1832 °F).These extensometers may be used with furnaces having a side entry slot for an extensometer or with induction heating systems. They utilize a proprietary,rugged dual flexure design.

See the electronics section of this catalog foravailable signal conditioners and strain meters.

Features O

RDERING

I

NFORMATION •

May be left on through specimen failure.

Model 3580 Available Versions: Quartz rod lengths are made to fit furnaces asrequired.Please provide furnace dimensions at the time of order. •

Full bridge, 350 ohm strain gaged design for compatibility with nearly anytest system.

Measuring Range DESIGNATION •

All standard units meet existing ASTM class B-1 and ISO 9513, class 0,5 requirements for accuracy.

-020T ±0.020” -030T ±0.030” -060T ±0.060”
•

Each unit comes with a spare set of quartz rods, universal water-cooled mounting bracket and a foam lined storage case.

-075T
1 ±0.075” -200T +0.200”
•

Rugged, dual flexure design for strength and improved performance. Much stronger than single flexure designs, this also allows cyclic testing at higher frequencies.

-050M ±0.50 mm -075M ±0.75 mm -150M ±1.50 mm -200M
Model 3580 on split furnace. 1 ±2.00 mm
•

Versions available for use in vacuum environments (consult factory).

-500M +5.00 mm

This model is for general purpose diametral strain measure-ment with furnace and induction heating systems. Quartz rods and water-cooling allow the unit to be used for high temperature testing of metals, ceramics and composites. With induction heating, this model often can be used without water-cooling.When used in furnaces, the extensometer is oftenmounted directly to the furnace side cut-out. Optional load frame mounting brackets are available for supporting the extensometer in cases where furnace mounting is not possible. These optional mounts are used with induction heating or furnaces systems.The Model 3580 extensometers are strain gaged devices,making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

S PECIFICATIONS Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Model Number 3580-________

•

Output: 2 to 4 mV/V nominal, depending on model Linearity ≤ 0.15% of full scale measuring range, dependingon model 1 Special order only. Total measuring range either in tension or compression. Example: 3580-030T: ±0.030 inches measuring range,temperature range of -40 °F to 1832 °F Temperature Range: Standard is -40 °C to +1000 °C (-40 °F to 1832 °F) Cable: Integral, ultra-flexible cable, 8 ft (2.5 m) standard Specimen Size: Works with samples 0.18 to 0.63 inch diameters (4.5 to 16 mm) Contact Force: Adjustable, 100 to 300 g typical O PTIONS Model 3580. Connectors to interface to nearly any brand test equipment Shunt calibration module (see page 96) Special rods are available for large specimens Model 2050 constant temperature water re-circulating bath Model 2050 ConstantTemperature Re-Circulation Bath.

This bath provides thecontrolled temperature flow for water-cooled extensometers. Capable of cooling or heating the water, temperature is maintained within 0.1 ËšC.These units are ideal forobtaining the maximum stability of any water-cooled extensometer.

2.9474.7VARIES WITHCONFIGURATION6.242.8772.9

•

Contact Epsilon for help with configuring a system to meet your needs. Epsilon also offers the Model 2050 constant temperature water re-circulating bath. MODEL 3580 DIMENSIONS:[mm] inches 40 41
