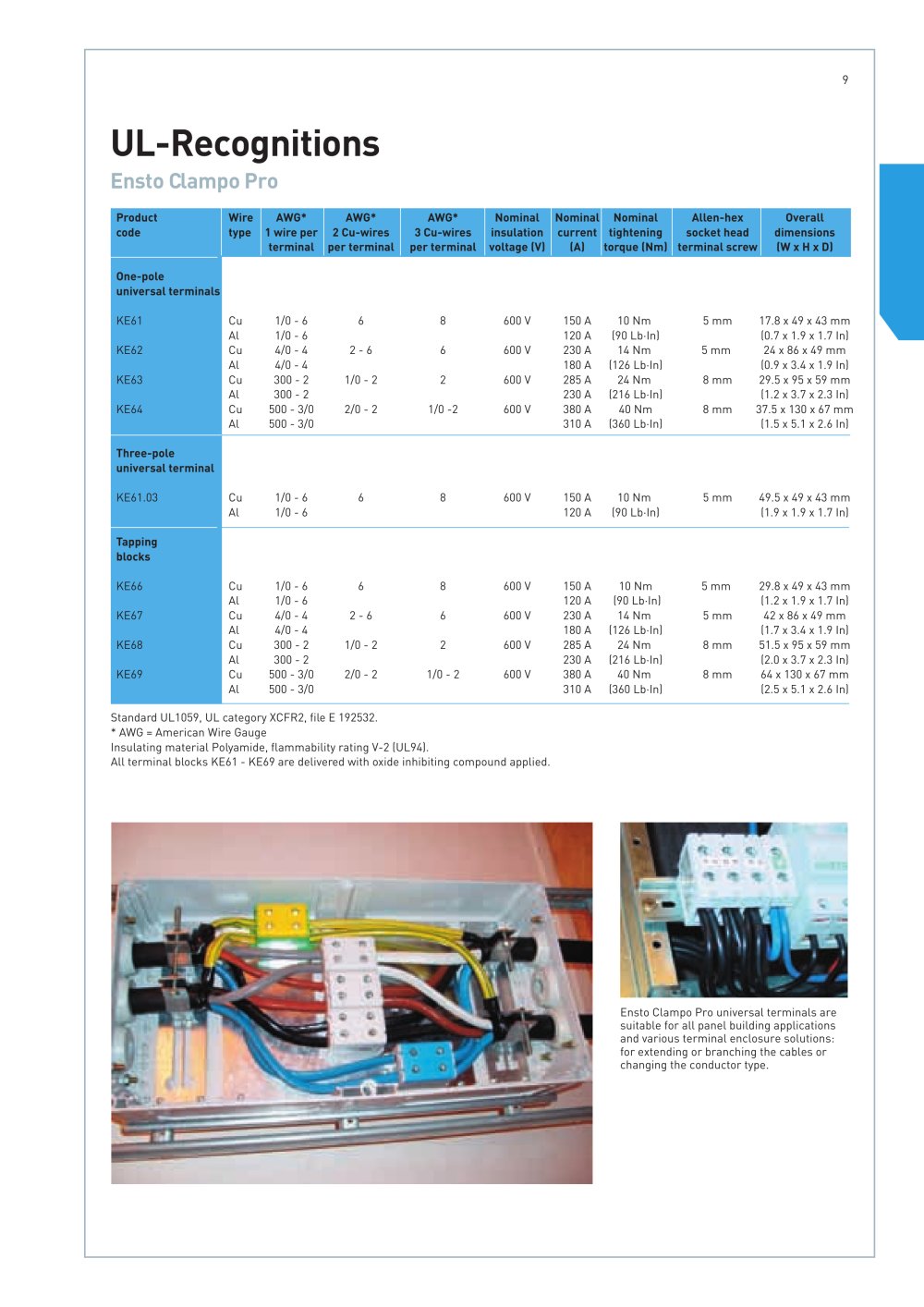

9

UL-Recognitions

Ensto Clampo Pro


	Product	Wire	AWG*	AWG*	AWG*	Nominal	Nominal	Nominal	Allen-hex	Overall
	code	type	1 wire per	2 Cu-wires	3 Cu-wires	insulation	current	tightening	socket head	dimensions
			terminal	per terminal	perterminal	voltage (V)	(A)	torque INm]	terminalscrew	(WxHxD)
	One-pole
	universal terminals
	KE61	Cu	1/0 - 6	6	8	600 V	150 A	10 Nm	5 mm	7.8x49 x43 mm
		Al	1/0 - 6				120A	(90 Lb-ln]		[0.7x1.9x1.7 In]
	KE62	Cu	4/0-4	2 - 6	6	600 V	230 A	14 Nm	5 mm	24x 86 x49 mm
		Al	4/0-4				180A	(126 Lb-ln]		[0.9x3.4x1.9 In]
	KE63	Cu	300 - 2	1/0 - 2	2	600 V	285 A	24 Nm	8mm 29.5 x 95 x 59 mm
		Al	300 - 2				230 A	[216 Lb-ln]		(1.2x3.7x2.3 In]
	KE64	Cu	500 - 3/0	2/0 - 2	1/0 -2	600 V	380 A	40 Nm	8 mm 37.5 x 130 x 67 mm
		Al	500 - 3/0				310A	[360 Lb-ln]		[1.5x5.1 x2.6 In]
	Three-pole
	universal terminal
	KE61.03	Cu	1/0 - 6	6	8	600 V	150 A	10 Nm	5 mm 49.5 x49 x43 mm
		Al	1/0 - 6				120A	[90 Lb-ln]		(1.9x1.9x1.7 In]
	Tapping
	blocks
	KE66	Cu	1/0 - 6	6	8	600 V	150 A	10 Nm	5 mm 29.8x49 x43 mm
		Al	1/0 - 6				120A	[90 Lb-ln]		[1.2x1.9x1.7 In]
	KE67	Cu	4/0-4	2 - 6	6	600 V	230 A	14 Nm	5 mm	42 x 86 x49 mm
		Al	4/0-4				180A	[126 Lb-ln]		[1.7x3.4x1.9 In]
	KE68	Cu	300 - 2	1/0 - 2	2	600 V	285 A	24 Nm	8 mm	51.5 x 95 x 59 mm
		Al	300 - 2				230 A	[216 Lb-ln]		[2.0x3.7x2.3 In]
	KE69	Cu	500 - 3/0	2/0 - 2	1/0 - 2	600 V	380 A	40 Nm	8 mm	64 x 130 x 67 mm
		Al	500 - 3/0				310A	[360 Lb-ln]		[2.5x5.1 x2.6 In]

Standard UL1059, UL categoryXCFR2, file E 192532. * AWG = American Wire Gauge

Insulating material Polyamide, flammability rating V-2 [UL94].

All terminal blocks KE61 - KE69 are delivered with oxide inhibiting compound applied.
