37

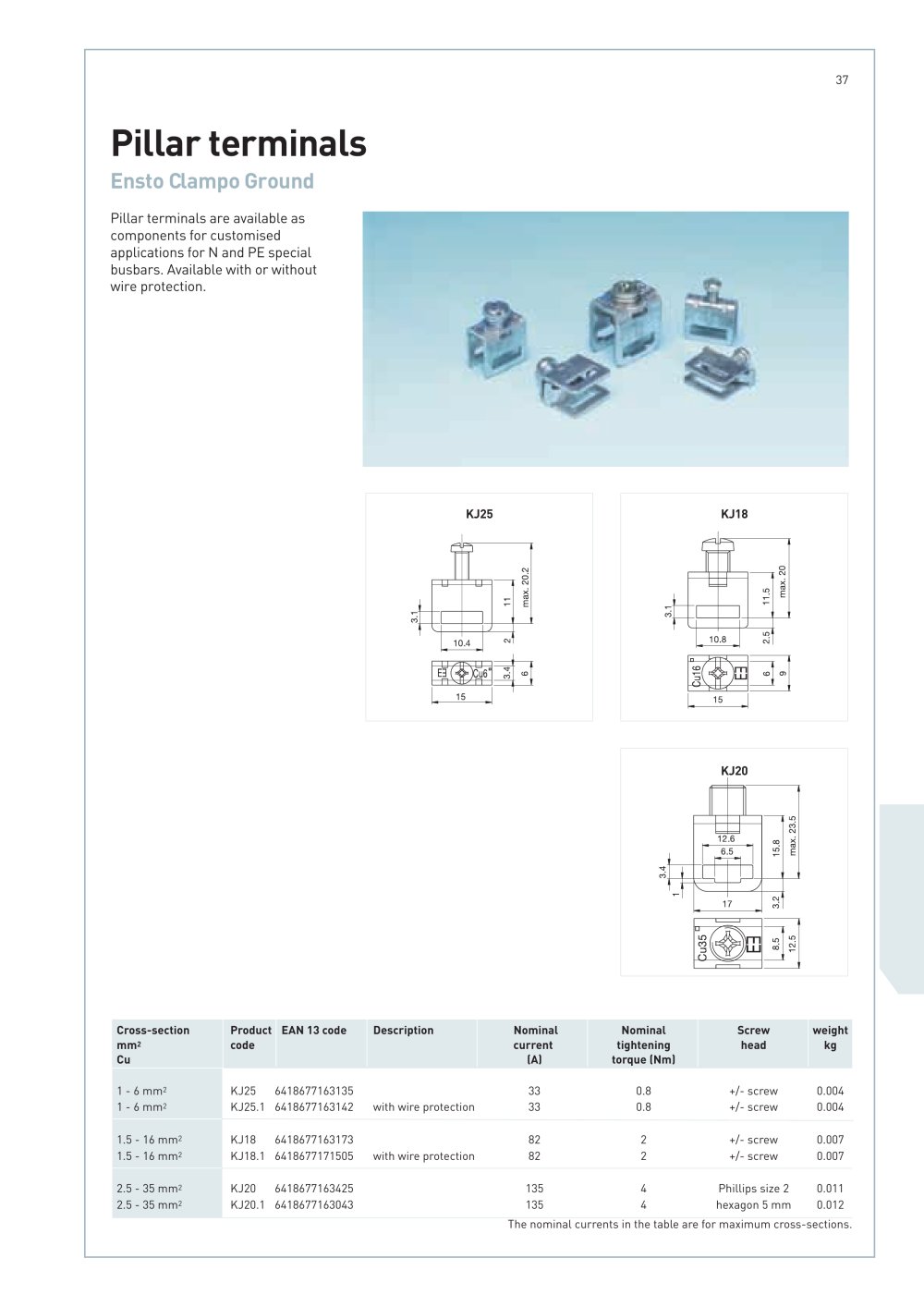

Pillar terminals
Ensto Clampo Ground
Pillar terminals are available as components for customised applications for N and PE special busbars. Available with or without wire protection.
~~f " <ol a>
u VLi-f
15
KJ20
Cross-section
mm?
Cu
Product code
EAN 13code
Description
Nominal current (A)
Nominal tightening torque (Nm)
Screw head
weight kg
1 - 6 mm? 1 - 6 mm?
KJ25 KJ25.1
5418677163135 5418677163142
with wire protection
33 33
0.8 0.8
+/- screw +/- screw
0.004 0.004
1.5-16 mm? 1.5-16 mm?
KJ18 KJ18.1
5418677163173 5418677171505
with wire protection
82 82
2 2
+/- screw +/- screw
0.007 0.007
2.5 - 35 mm? 2.5 - 35 mm?
KJ20 KJ20.1
5418677163425 5418677163043
135 135
4 4
Phillips size 2 hexagon 5 mm
0.011 0.012
