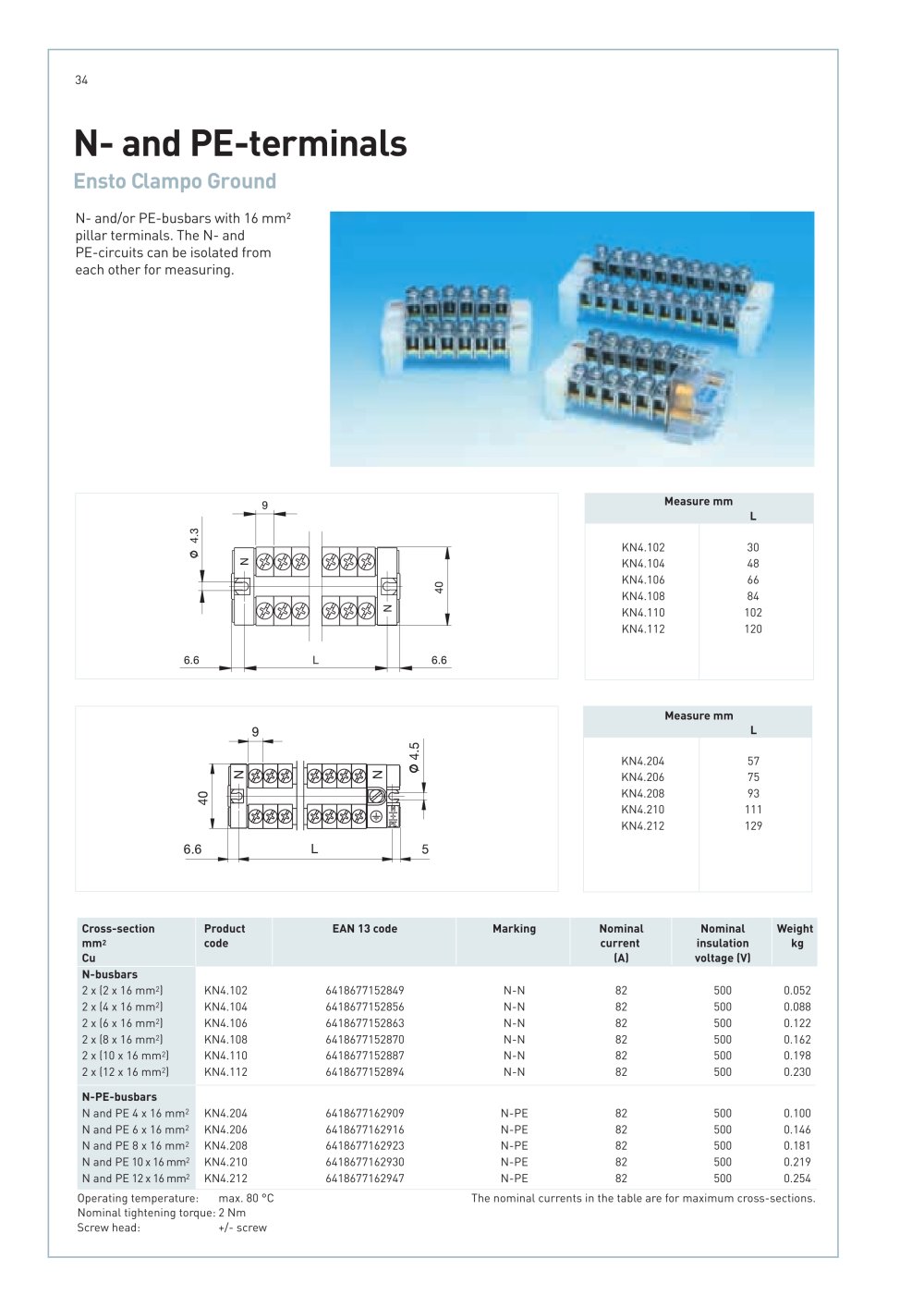

34

N- and PE-terminals

Ensto Clampo Ground

N- and/or PE-busbars with 16 mm²pillar terminals. The N- and PE-circuits can be isolated from each other for measuring.


	Measure mm
		L
	KN4.102	30
	KN4.104	48
	KN4.106	66
	KN4.108	84
	KN4.110	102
	KN4.112	120


	Measure mm		L
	KN4.204		57
	KN4.206		75
	KN4.208		93
	KN4.210		111
	KN4.212		129


	Cross-section	Product	EAN 13 code	Marking	Nominal	Nominal	Weight
	mm²	code			current	insulation	kg
	Cu				(A)	voltage (V)
	N-busbars
	2x\|2x16mm²]	KN4.102	6418677152849	N-N	82	500	0.052
	2x\|4x16 mm²]	KN4.104	6418677152856	N-N	82	500	0.088
	2x\|6x16 mm²]	KN4.106	6418677152863	N-N	82	500	0.122
	2x\|8x16mm²l	KN4.108	6418677152870	N-N	82	500	0.162
	2x\|10x16mm²)	KN4.110	6418677152887	N-N	82	500	0.198
	2x\|12x16mm²]	KN4.112	6418677152894	N-N	82	500	0.230
	N-PE-busbars
	N and PE4x16 mm²	KN4.204	6418677162909	N-PE	82	500	0.100
	N and PE6x16 mm²	KN4.206	6418677162916	N-PE	82	500	0.146
	N and PE8x16 mm²	KN4.208	6418677162923	N-PE	82	500	0.181
	N and PE 10x16mm²	KN4.210	6418677162930	N-PE	82	500	0.219
	N and PE 12x16mm²	KN4.212	6418677162947	N-PE	82	500	0.254

Operating temperature: max. 80 °C The nominal currents in the table are for maximum cross-sections.

Nominal tightening torque: 2 Nm Screwhead: +/-screw
