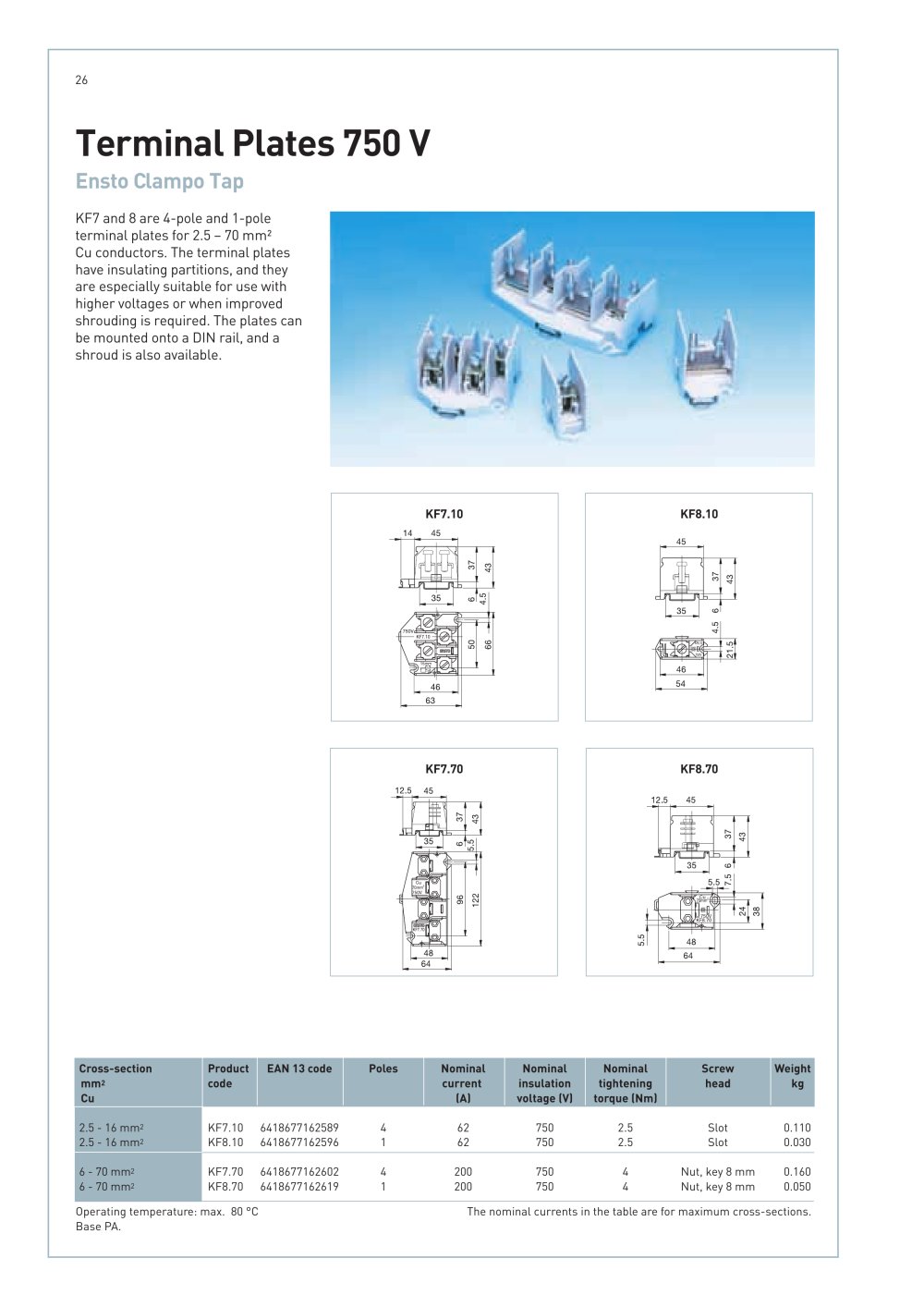

| | | Terminal Plates 750 V Ensto Clampo Tap | | |
| | | |
| | | KF7 and 8 are 4-pole and 1-pole terminal plates for 2.5 - 70 mm2 Cu conductors. The terminal plates have insulating industrial partitions, and they are especially suitable for use with higher voltages or when improved shrouding is required. The plates can be mounted onto a DIN rail, and a shroud is also available. | | |
| | | |
| | | | | | | | | | | | | | | | | Cross-section | Product | EAN 13code | Poles | Nominal | Nominal | Nominal | Screw | Weight | | | | mm? | code | | | current | insulation | tightening | head | kg | | | | Cu | | | | (A) | voltage (V) | torque (Nm) | | | | | | 2.5 - 16 mm? | KF7.10 | 6418677162589 | 4 | 62 | 750 | 2.5 | Slot | 0.110 | | | | 2.5 - 16 mm' | KF8.10 | 6418677162596 | 1 | 62 | 750 | 2.5 | Slot | 0.030 | | | | 6 - 70 mm? | KF7.70 | 6418677162602 | 4 | 200 | 750 | 4 | Nut, key 8 mm | 0.160 | | | | 6 - 70 mm? | KF8.70 | 6418677162619 | 1 | 200 | 750 | 4 | Nut, key 8 mm | 0.050 | | | | | | | | | | | | | | | | |
| | | |
| | | Operating temperature: max. 80 °C The nominal currents in the table are for maximum cross-sections. Base PA. | | |
| | | |
| | | | | | | | | | | | |
