| | | 4 | | |
| | | |
| | | | | |
| | | |

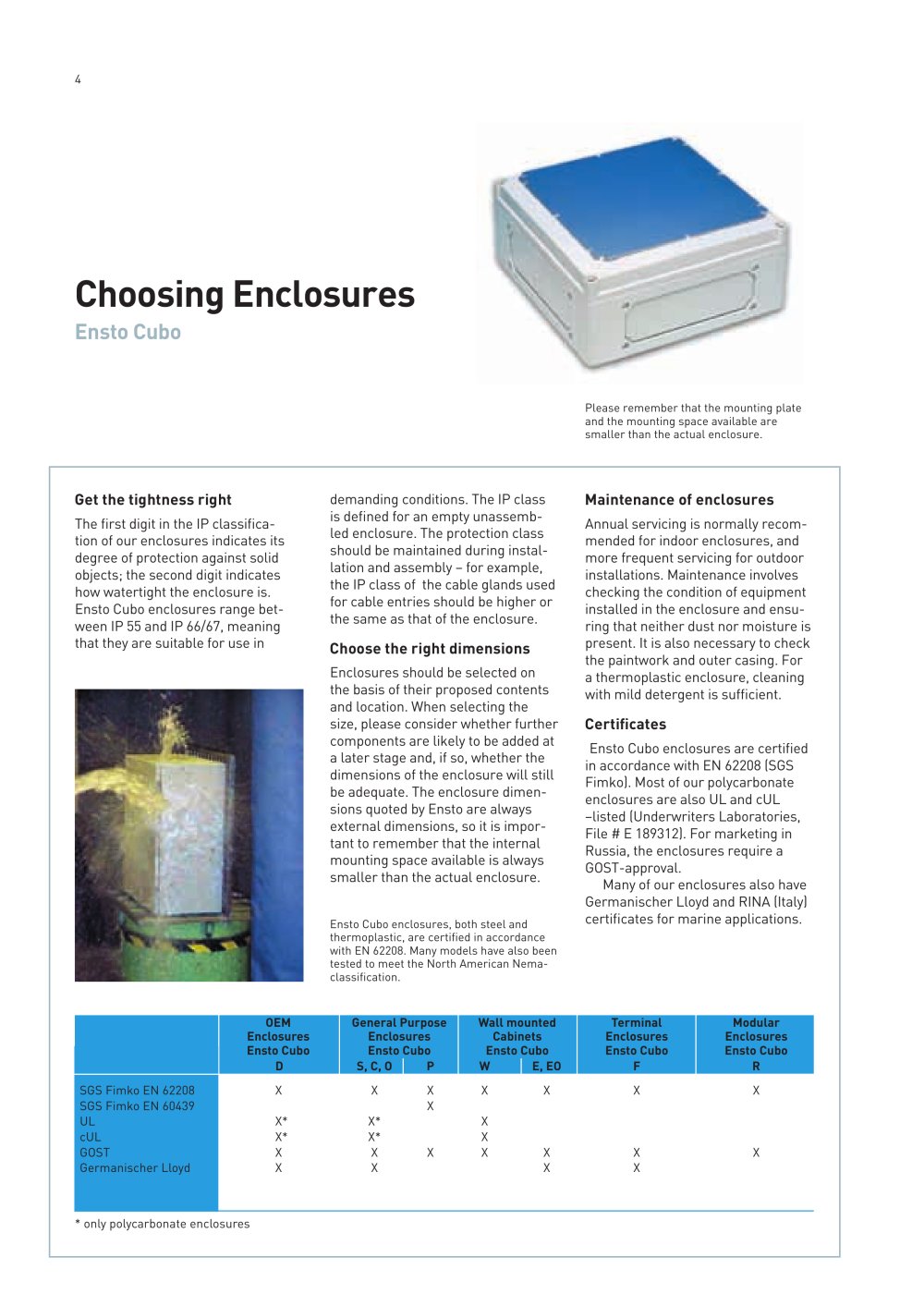

| | | Please rememberthat the mounting plate and the mounting space available are smallerthantheactual enclosure. | | |
| | | |
| | | demanding conditions. The IP class is defined for an empty unassembled enclosure. The protection class should be maintained during installation and assembly - for example, the IP class of the cable glands used for cable entries should be higher or the same as that of the enclosure. Choose the right dimensions Enclosures should be selected on the basis of their proposed contents and location. When selecting the size, please considerwhetherfurther components are likely to be added at a later stage and.ifso, whether the dimensions of the enclosure will still be adequate. The enclosure dimensions quoted by Ensto are always external dimensions, so it is important to remember that the internal mounting space available is always smaller than the actual enclosure. | | |
| | | Get the tightness right The first digit in the IP classification of our enclosures indicates its degree of protection against solid objects; the second digit indicates howwatertight the enclosure is. Ensto Cubo enclosures range between IP55 and IP 66/67, meaning that they are suitable for use in | | | Maintenance of enclosures Annual servicing is normally recommended for indoor enclosures, and more frequent servicing for outdoor installations. Maintenance involves checking the condition of equipment installed in the enclosure and ensuring that neither dust nor moisture is present. It is also necessary to check the paintwork and outer casing. For a thermoplastic enclosure, cleaning with mild detergent is sufficient. Certificates Ensto Cubo enclosures are certified in accordance with EN 62208 (SGS Fimko). Most of our polycarbonate enclosures are also UL and cUL -listed (Underwriters Laboratories, File # E 189312). Formarketing in Russia, the enclosures require a GOST-approval. Many of our enclosures also have Germanischer Lloyd and RINA [Italy] certificates for marine applications. | | |
| | | |
| | | |
| | | Ensto Cubo enclosures, both steel and thermoplastic, are certified in accordance with EN 62208. Many models have also been tested to meet the North American Nema-classification. | | |
| | | |
| | | |
| | | OEM Enclosures Ensto Cubo D X X* X* X X | | General Purpose Enclosures Ensto Cubo S,C,0 P | | | | X | | Modular Enclosures Ensto Cubo R X | | |
| | | |
| | | SGS Fimko EN 62208 SGS Fimko EN 60439 UL cUL GOST Germanischer Lloyd | | | X X* X* X X | | X | | |
| | | |
| | | X | | X | | |
| | | |
| | | |
| | | |
| | | * only polycarbonate enclosures | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
