CLRG-Series, High Tonnage Cylinders

Hydraulic Technology Worldwide

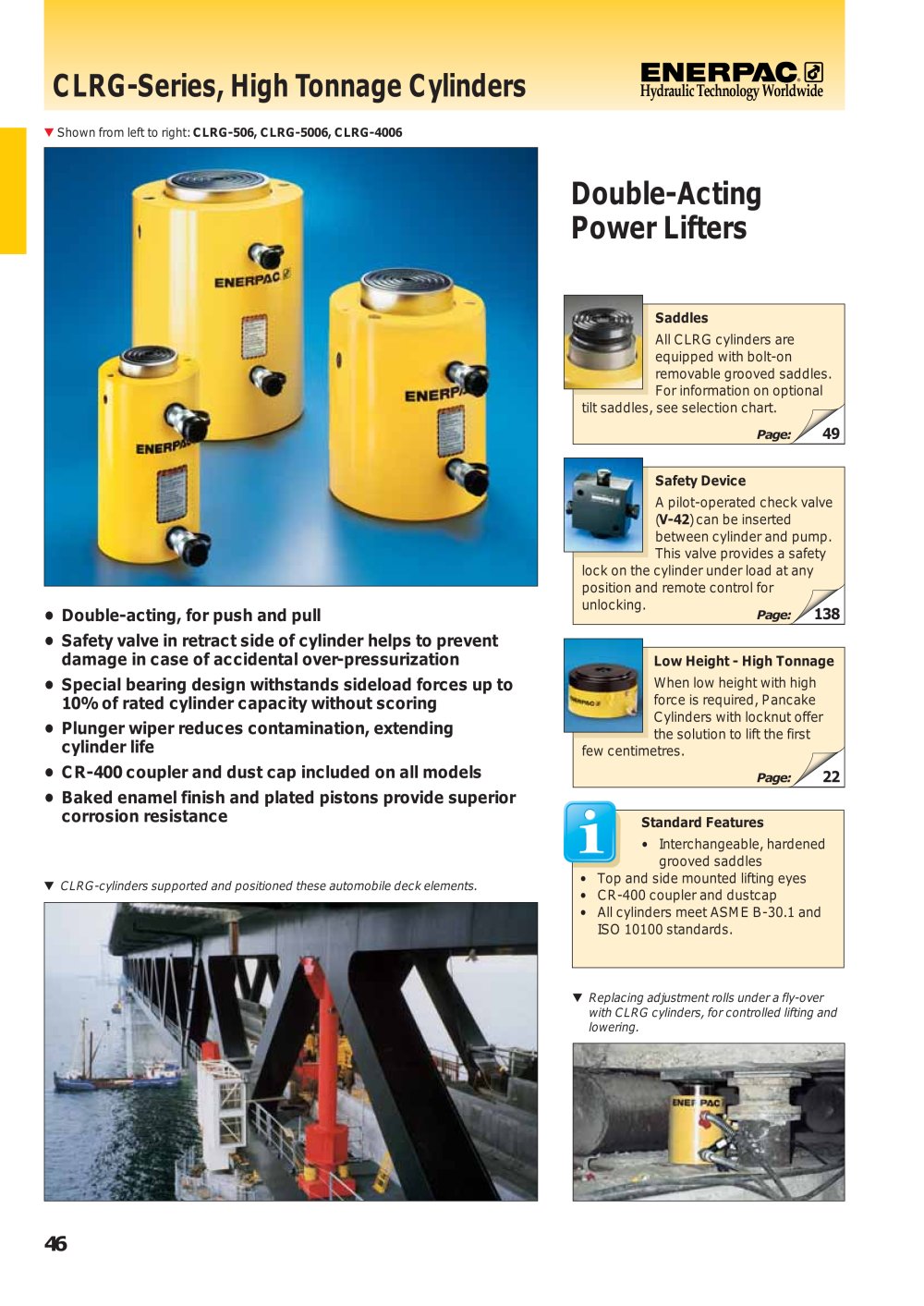

Shown from left to right: CLRG-506, CLRG-5006, CLRG-4006

Double-ActingPower Lifters

Saddles All CLRG cylinders areequipped with bolt-on removable grooved saddles. For information on optionaltilt saddles, see selection chart.
Page:

49 138 22

Safety Device A pilot-operated check valve( V-42 ) can be insertedbetween cylinder and pump.This valve provides a safetylock on the cylinder under load at any position and remote control for unlocking.

Double-acting, for push and pullSafety valve in retract side of cylinder helps to preventdamage in case of accidental over-pressurizationSpecial bearing design withstands sideload forces up to10 of rated cylinder capacity without scoringPlunger wiper reduces contamination, extending cylinder lifeCR-400 coupler and dust cap included on all models Baked enamel finish and plated pistons provide superiorcorrosion resistance

Page: Low Height - High Tonnage When low height with highforce is required, PancakeCylinders with locknut offer the solution to lift the firstfew centimetres.
Page: Standard Features ?Interchangeable, hardened grooved saddles?Top and side mounted lifting eyes ?CR-400 coupler and dustcap ?All cylinders meet ASME B-30.1 andISO 10100 standards.
