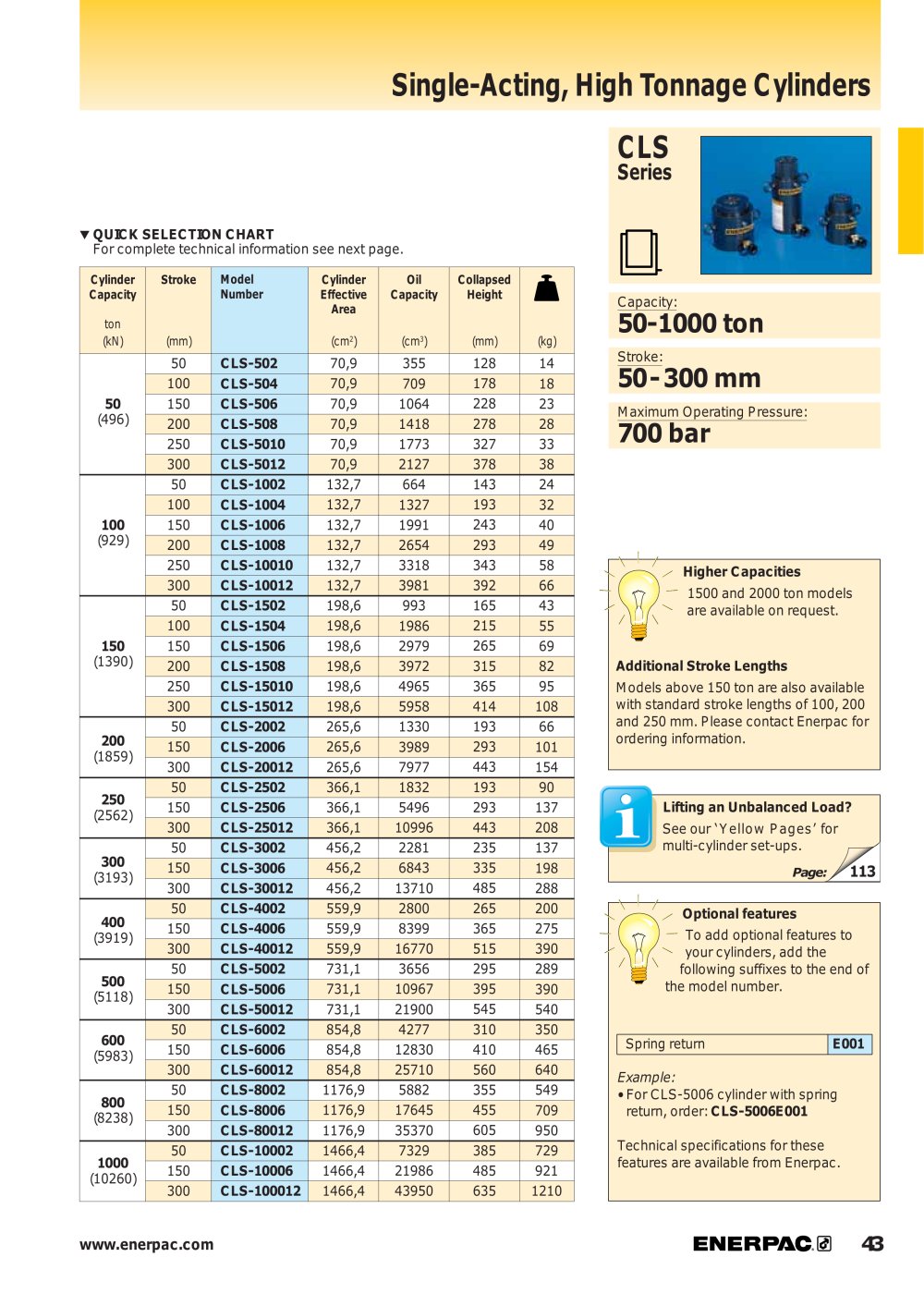

Single-Acting, High Tonnage Industrial cylinders

С LS

Series

T QUICK SELECTION CHART

For complete technical information see next page.


Cylinder Capacity ton	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed Height	A
(kN)	(mm)		(cm²)	(cm³)	(mm)	(kg)
	50	CLS-502	70,9	355	128	14
	100	CLS-504	70,9	709	178	18
50	150	CLS-506	70,9	1064	228	23
(496)	200	CLS-508	70,9	1418	278	28
	250	CLS-5010	70,9	1773	327	33
	300	CLS-5012	70,9	2127	378	38
	50	CLS-1002	132,7	664	143	24
	100	CLS-1004	132,7	1327	193	32
100	150	CLS-1006	132,7	1991	243	40
(929)	200	CLS-1008	132,7	2654	293	49
	250	CLS-10010	132,7	3318	343	58
	300	CLS-10012	132,7	3981	392	66
	50	CLS-1502	198,6	993	165	43
	100	CLS-1504	198,6	1986	215	55
150	150	CLS-1506	198,6	2979	265	69
(1390)	200	CLS-1508	198,6	3972	315	82
	250	CLS-15010	198,6	4965	365	95
	300	CLS-15012	198,6	5958	414	108
200 (1859)	50	CLS-2002	265,6	1330	193	66
	150	CLS-2006	265,6	3989	293	101
	300	CLS-20012	265,6	7977	443	154
250 (2562)	50	CLS-2502	366,1	1832	193	90
	150	CLS-2506	366,1	5496	293	137
	300	CLS-25012	366,1	10996	443	208
300 (3193)	50	CLS-3002	456,2	2281	235	137
	150	CLS-3006	456,2	6843	335	198
	300	CLS-30012	456,2	13710	485	288
400 (3919)	50	CLS-4002	559,9	2800	265	200
	150	CLS-4006	559,9	8399	365	275
	300	CLS-40012	559,9	16770	515	390
500 (5118)	50	CLS-5002	731,1	3656	295	289
	150	CLS-5006	731,1	10967	395	390
	300	CLS-50012	731,1	21900	545	540
600 (5983)	50	CLS-6002	854,8	4277	310	350
	150	CLS-6006	854,8	12830	410	465
	300	CLS-60012	854,8	25710	560	640
800 (8238)	50	CLS-8002	1176,9	5882	355	549
	150	CLS-8006	1176,9	17645	455	709
	300	CLS-80012	1176,9	35370	605	950
1000 (10260)	50	CLS-10002	1466,4	7329	385	729
	150	CLS-10006	1466,4	21986	485	921
	300	CLS-100012	1466,4	43950	635	1210

Capacity:

50-1000 ton

Stroke:

50-300 mm

Maximum Operating Pressure:

700 bar

Higher Capacities

1500 and 2000 ton models are available on request.

Additional Stroke Lengths

Models above 150 ton are also available with standard stroke lengths of 100, 200 and 250 mm. Please contact Enerpac for ordering information.

Lifting an Unbalanced Load

See our ellow Pages for multi-cylinder set-ups.

Page:

113

Optional features

- To add optional features to ~- your cylinders, add the

following suffixes to the end of the model number.

Spring return

E001

a e

• For CLS-5006 cylinder with spring return, order: CLS-5006E001

Technical specifications forthese features are available from Enerpac.

ENERPAC. В

www.enerpac.com
