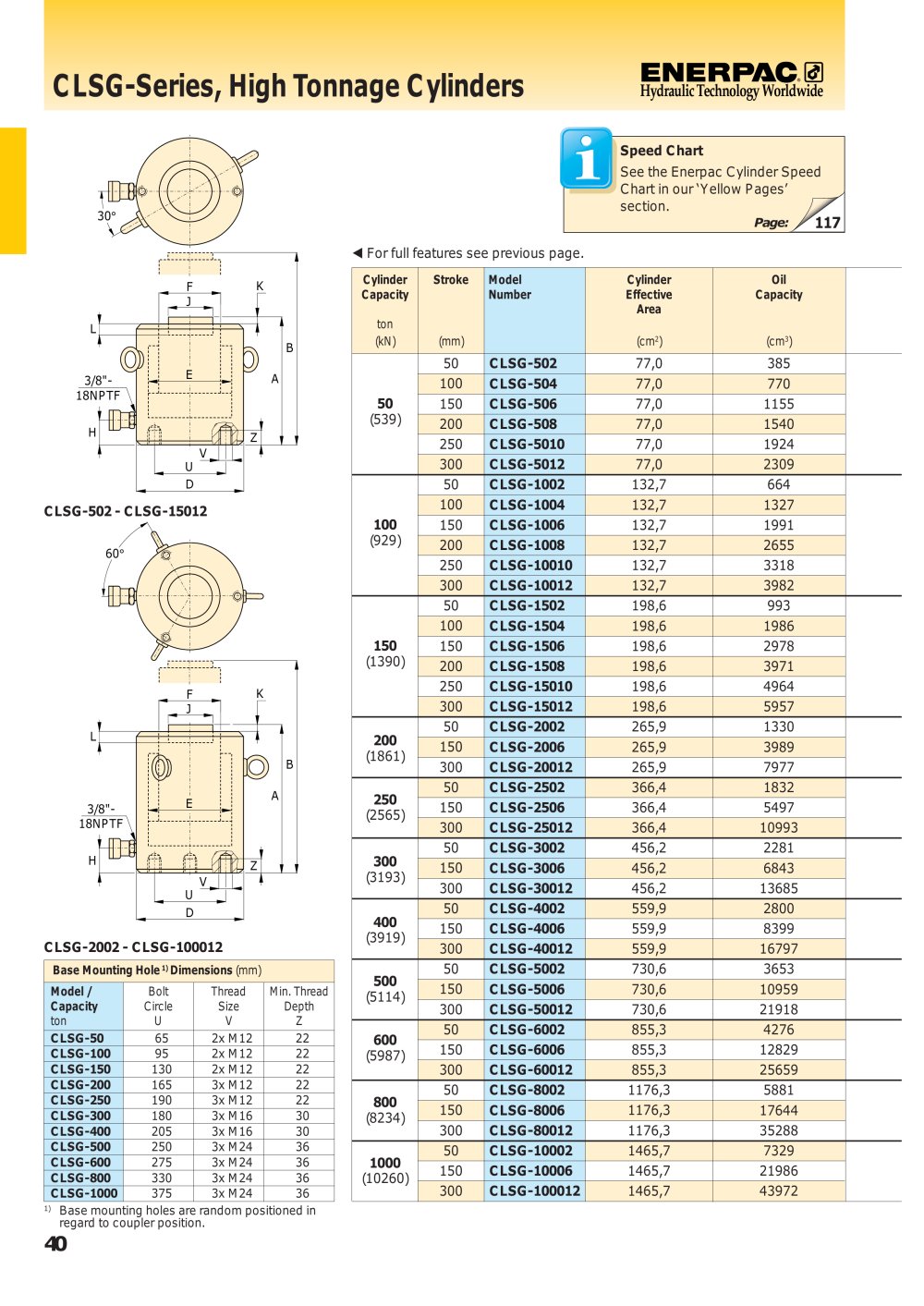

CLSG-Series, High Tonnage Cylinders

Hydraulic Technology Worldwide

Speed Chart

See the Enerpac Cylinder Speed Chart in our ellow Pages section.

■4 For full features see previous page.


	Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Cylinder Effective Area (cm²)	Oil Capacity (cm³)
	50 (539)	50	CLSG-502	77,0	385
		100	CLSG-504	77,0	770
		150	CLSG-506	77,0	1155
		200	CLSG-508	77,0	1540
		250	CLSG-5010	77,0	1924
		300	CLSG-5012	77,0	2309
	100 (929)	50	CLSG-1002	132,7	664
		100	CLSG-1004	132,7	1327
		150	CLSG-1006	132,7	1991
		200	CLSG-1008	132,7	2655
		250	CLSG-10010	132,7	3318
		300	CLSG-10012	132,7	3982
	150 (1390)	50	CLSG-1502	198,6	993
		100	CLSG-1504	198,6	1986
		150	CLSG-1506	198,6	2978
		200	CLSG-1508	198,6	3971
		250	CLSG-15010	198,6	4964
		300	CLSG-15012	198,6	5957
	200 (1861)	50	CLSG-2002	265,9	1330
		150	CLSG-2006	265,9	3989
		300	CLSG-20012	265,9	7977
	250 (2565)	50	CLSG-2502	366,4	1832
		150	CLSG-2506	366,4	5497
		300	CLSG-25012	366,4	10993
	300 (3193)	50	CLSG-3002	456,2	2281
		150	CLSG-3006	456,2	6843
		300	CLSG-30012	456,2	13685
	400 (3919)	50	CLSG-4002	559,9	2800
		150	CLSG-4006	559,9	8399
		300	CLSG-40012	559,9	16797
	500 (5114)	50	CLSG-5002	730,6	3653
		150	CLSG-5006	730,6	10959
		300	CLSG-50012	730,6	21918
	600 (5987)	50	CLSG-6002	855,3	4276
		150	CLSG-6006	855,3	12829
		300	CLSG-60012	855,3	25659
	800 (8234)	50	CLSG-8002	1176,3	5881
		150	CLSG-8006	1176,3	17644
		300	CLSG-80012	1176,3	35288
	1000 (10260)	50	CLSG-10002	1465,7	7329
		150	CLSG-10006	1465,7	21986
		300	CLSG-100012	1465,7	43972

CLSG-502-CLSG-15012

3 8 18NPTF\

CLSG-2002 - CLSG-100012


	Base Mounting Hole¹' Dimensions (mm)
	Model/	Bolt	Thread	Min. Thread
	Capacity	Circle	Size	Depth
	ton	U	V	Z
	CLSG-50	65	2x M12	22
	CLSG-100	95	2x M12	22
	CLSG-150	130	2x M12	22
	CLSG-200	165	3x M12	22
	CLSG-250	190	3x M12	22
	CLSG-300	180	3x M16	30
	CLSG-400	205	3x M16	30
	CLSG-500	250	3x M24	36
	CLSG-600	275	3x M24	36
	CLSG-800	330	3x M24	36
	CLSG-1000	375	3x M24	36

'> Base mounting holes are random positioned in regard to coupler position.
