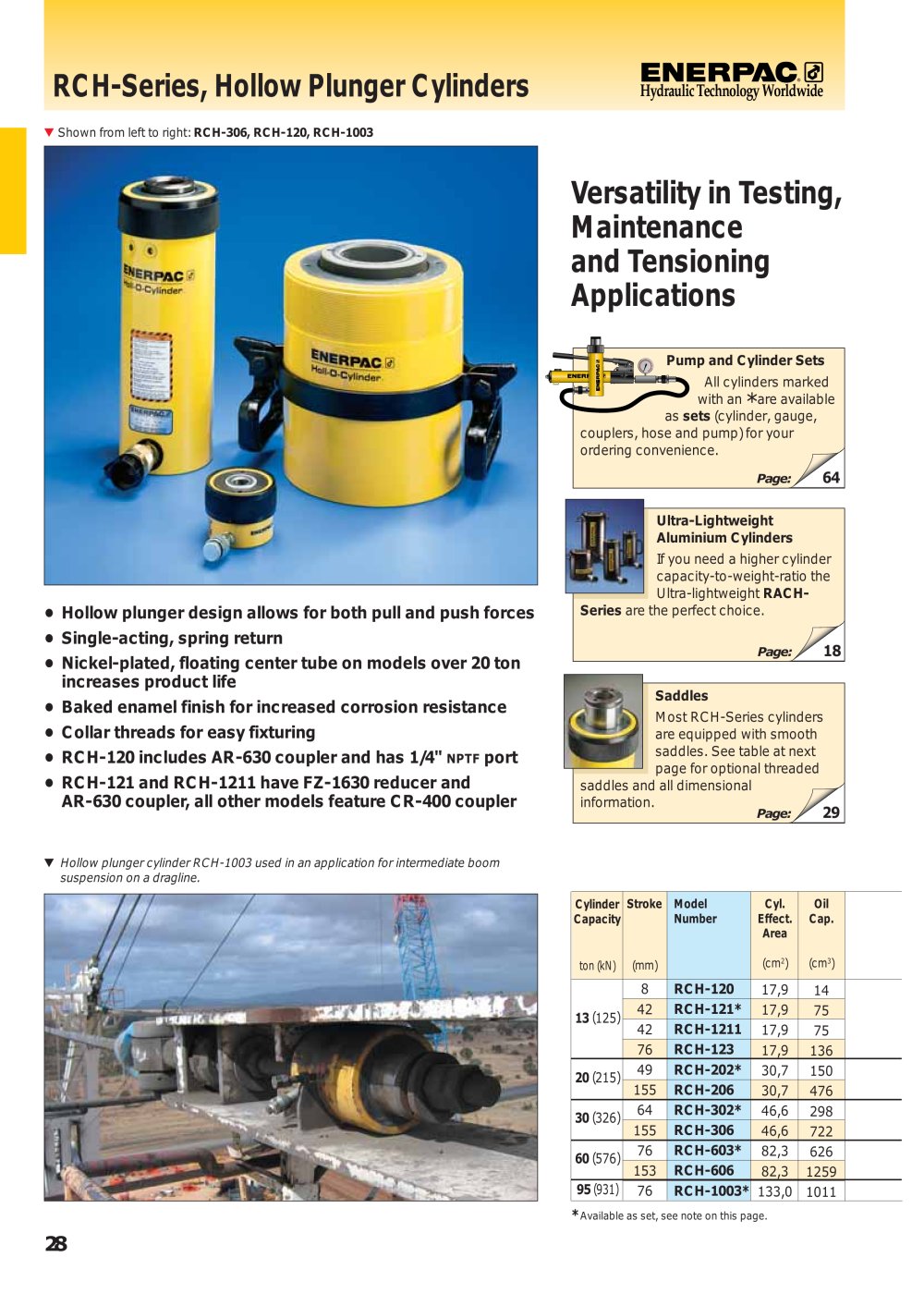

RCH-Series, Hollow Plunger Industrial cylinders
Hydraulic Technology Worldwide
t Shown from left to right: RCH-306, RCH-120, RCH-1003
Versatility in Testing, Maintenance and Tensioning Applications
Pump and Cylinder Sets
All cylinders marked with an are available as sets (cylinder, gauge, couplers, hose and pump)foryour ordering convenience.
64
Page:
Ultra-Lightweight Aluminium Cylinders
If you need a higher cylinder capacity-to-weight-ratio the Ultra-lightweight RACH-Series are the perfect choice.
Hollow plunger design allows for both pull and push forces Single-acting, spring return
Nickel-plated, floating center tube on models over 20 ton increases product life
Baked enamel finish for increased corrosion resistance Collar threads for easy fixturing
RCH-120 includes AR-630 coupler and has 1/4 nptf port
RCH-121 and RCH-1211 have FZ-1630 reducer and AR-630 coupler, all other models feature CR-400 coupler
18
Page:
Saddles
Most RCH-Series cylinders are equipped with smooth saddles. See table at next page for optional threaded saddles and all dimensional information.
Page:
29
