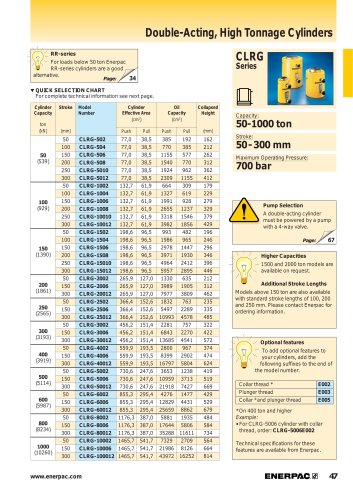

Double-Acting, High Tonnage Cylinders
CLRG
Series
RR-series
For loads below 50 ton Enerpac RR-series cylinders are a good alternative.
Page:
34
T QUICK SELECTION CHART
For complete technical information see next page.
Cylinder Capacity
ton (kN)
Stroke
(mm)
Model Number
Cylinder Effective Area
(cm2)
Oil Capacity
(cm3)
Collapsed Height
(mm)
Push
Pull
Push
Pull
50
(539)
50
CLRG-502
77,0
38,5
385
192
162
100
CLRG-504
77,0
38,5
770
385
212
150
CLRG-506
77,0
38,5
1155
577
262
200
CLRG-508
77,0
38,5
1540
770
312
250
CLRG-5010
77,0
38,5
1924
962
362
300
CLRG-5012
77,0
38,5
2309
1155
412
100
(929)
50
CLRG-1002
132,7
61,9
664
309
179
100
CLRG-1004
132,7
61,9
1327
619
229
150
CLRG-1006
132,7
61,9
1991
928
279
200
CLRG-1008
132,7
61,9
2655
1237
329
250
CLRG-10010
132,7
61,9
3318
1546
379
300
CLRG-10012
132,7
61,9
3982
1856
429
150
(1390)
50
CLRG-1502
198,6
96,5
993
482
196
100
CLRG-1504
198,6
96,5
1986
965
246
150
CLRG-1506
198,6
96,5
2978
1447
296
200
CLRG-1508
198,6
96,5
3971
1930
346
250
CLRG-15010
198,6
96,5
4964
2412
396
300
CLRG-15012
198,6
96,5
5957
2895
446
200
(1861)
50
CLRG-2002
265,9
127,0
1330
635
212
150
CLRG-2006
265,9
127,0
3989
1905
312
300
CLRG-20012
265,9
127,0
7977
3809
462
250
(2565)
50
CLRG-2502
366,4
152,6
1832
763
235
150
CLRG-2506
366,4
152,6
5497
2289
335
300
CLRG-25012
366,4
152,6
10993
4578
485
300
(3193)
50
CLRG-3002
456,2
151,4
2281
757
322
150
CLRG-3006
456,2
151,4
6843
2270
422
300
CLRG-30012
456,2
151,4
13685
4541
572
400
(3919)
50
CLRG-4002
559,9
193,5
2800
967
374
150
CLRG-4006
559,9
193,5
8399
2902
474
300
CLRG-40012
559,9
193,5
16797
5804
624
500
(5114)
50
CLRG-5002
730,6
247,6
3653
1238
419
150
CLRG-5006
730,6
247,6
10959
3713
519
300
CLRG-50012
730,6
247,6
21918
7427
669
600
(5987)
50
CLRG-6002
855,3
295,4
4276
1477
429
150
CLRG-6006
855,3
295,4
12829
4431
529
300
CLRG-60012
855,3
295,4
25659
8862
679
800
(8234)
50
CLRG-8002
1176,3
387,0
5881
1935
484
150
CLRG-8006
1176,3
387,0
17644
5806
584
300
CLRG-80012
1176,3
387,0
35288
11611
734
1000
(10260)
50
CLRG-10002
1465,7
541,7
7329
2709
564
150
CLRG-10006
1465,7
541,7
21986
8126
664
300
CLRG-100012
1465,7
541,7
43972
16252
814
Capacity:
50-1000 ton
Stroke:
50-300 mm
Maximum Operating Pressure:
700 bar
Pump Selection
A double-acting cylinder must be powered by a pump with a 4-way valve.
Page:
Higher Capacities
- 1500 and 2000 ton models are
- available on request.
Additional Stroke Lengths
Models above 150 ton are also available with standard stroke lengths of 100, 200 and 250 mm. Please contact Enerpac for ordering information.
Optional features
To add optional features to " your cylinders, add the
following suffixes to the end of the model number.
Collar thread
E002
Plunger thread
E003
Collar and plunger thread
E005
On 400 ton and higher a e
• For CLRG-5006 cylinder with collar thread, order: CLRG-5006E002
Technical specifications forthese features are available from Enerpac.
