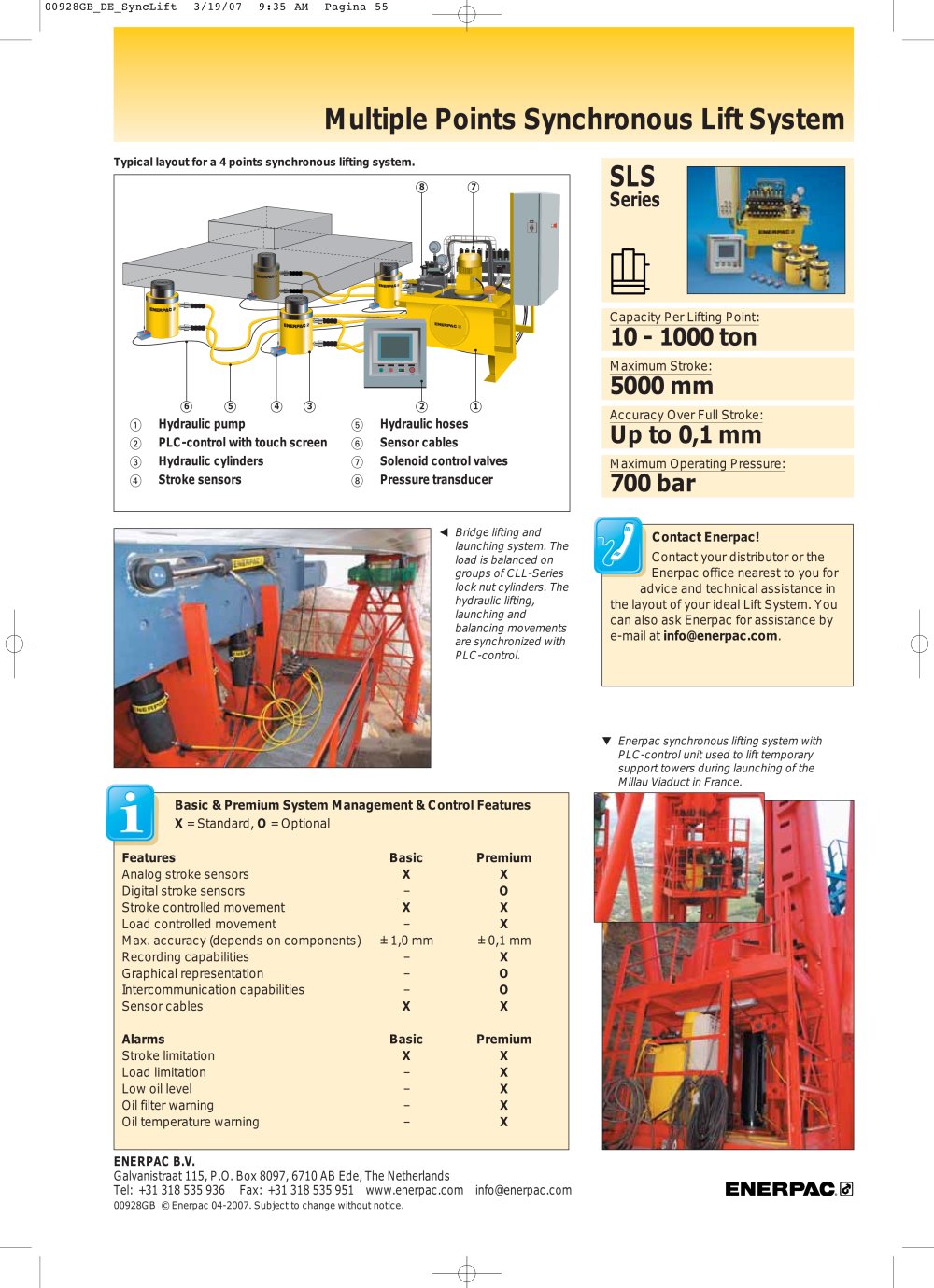

Enerpac Synchronous Liftsystem - 14336 Multiple Points Synchronous Lift System

Typical layout for a 4 points synchronous lifting system. 8 7

SLS

Series

Capacity Per Lifting Point:

10 - 1000 ton

Maximum Stroke:
6 5 4 3 2 1

5000 mm

Hydraulic pump Hydraulic hoses Accuracy Over Full Stroke: PLC-control with touch screen Sensor cables

Up to 0,1 mm

Hydraulic cylinders Solenoid control valves Maximum Operating Pressure: Stroke sensors Pressure transducer

700 bar

Bridge lifting andlaunching system. The load is balanced on groups of CLL-Series lock nut cylinders. The hydraulic lifting, launching and balancing movements are synchronized with PLC-control. Contact Enerpac! Contact your distributor or theEnerpac office nearest to you foradvice and technical assistance inthe layout of your ideal Lift System. You can also ask Enerpac for assistance bye-mail at info@enerpac.com .
Enerpac synchronous lifting system withPLC-control unit used to lift temporary support towers during launching of the Millau Viaduct in France. Basic & Premium System Management & Control Features X = Standard, O = Optional FeaturesBasic Premium Analog stroke sensors XX Digital stroke sensors– O Stroke controlled movement XX Load controlled movement– X X Max. accuracy (depends on components)±1,0 mm±0,1 mm Recording capabilities– Graphical representation– O Intercommunication capabilities– O Sensor cables XX AlarmsBasicPremium Stroke limitation XX Load limitation– X Low oil level– X Oil filter warning– X Oil temperature warning– X ENERPAC B.V. Galvanistraat 115, P.O. Box 8097, 6710 AB Ede, The Netherlands Tel: +31 318 535 936 Fax: +31 318 535 951 www.enerpac.com info@enerpac.com
