Multivariable measurementMaximum process safety Immune to vibration and pipe load stress

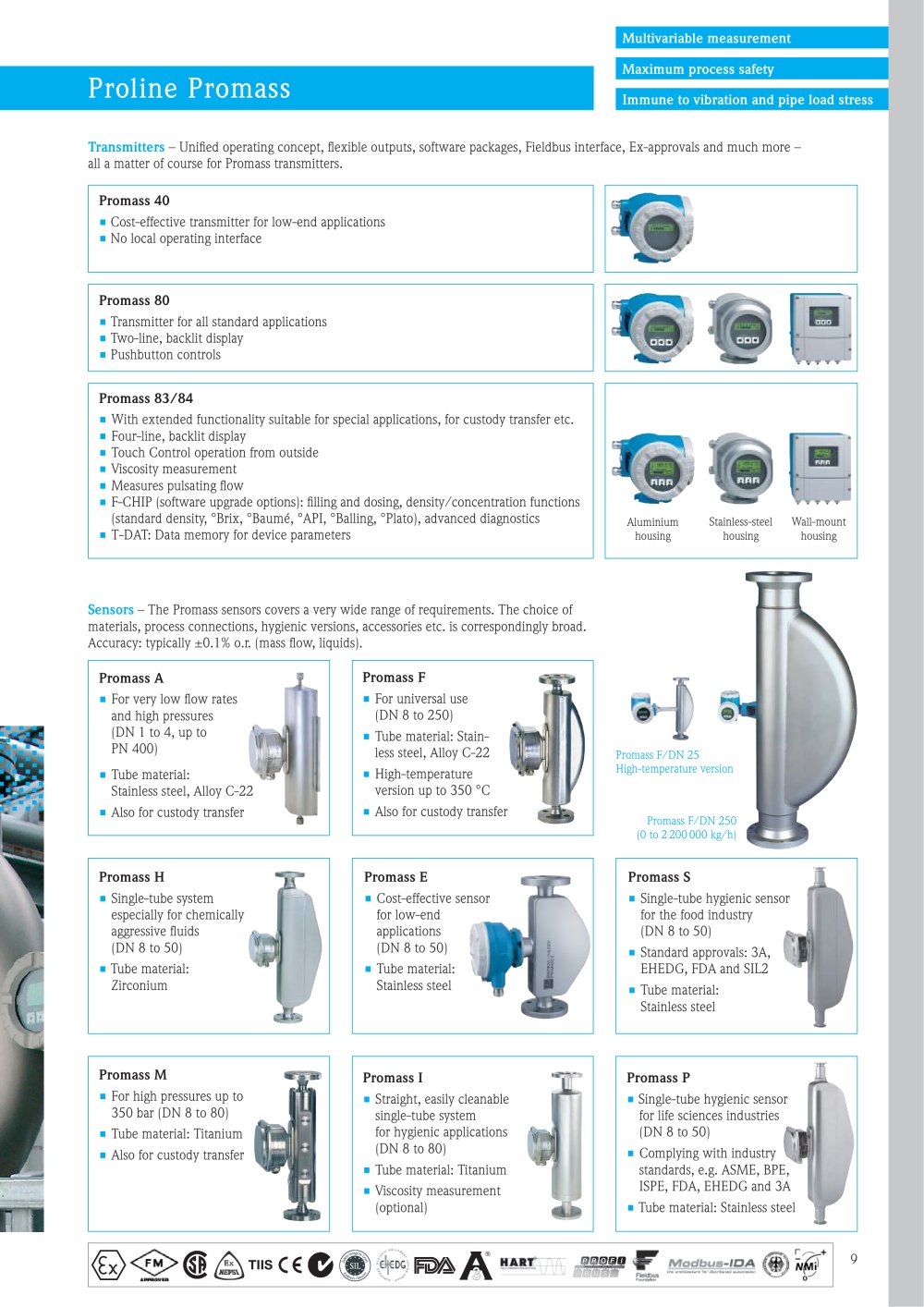

Flow Measurement - 4726 Proline Promass

Transmitters – Uni ed operating concept, exible outputs, software packages, Fieldbus interface, Ex-approvals and much more –all a matter of course for Promass transmitters. Promass 40 • Cost-effective transmitter for low-end applications • No local operating interface Promass 80 • Transmitter for all standard applications • Two-line, backlit display • Pushbutton controls Promass 83/84 • With extended functionality suitable for special applications, for custody transfer etc. • Four-line, backlit display • Touch Control operation from outside • Viscosity measurement • Measures pulsating ow • F-CHIP (software upgrade options): lling and dosing, density/concentration functions (standard density, °Brix, °Baumé, °API, °Balling, °Plato), advanced diagnostics
Aluminium housingStainless-steel housingWall-mount housing • T-DAT: Data memory for device parameters Sensors – The Promass sensors covers a very wide range of requirements. The choice of materials, process connections, hygienic versions, accessories etc. is correspondingly broad. Accuracy: typically ±0.1% o.r. (mass ow, liquids). Promass A Promass F • For very low ow rates and high pressures (DN 1 to 4, up to PN 400) • For universal use (DN 8 to 250) • Tube material: Stain- less steel, Alloy C-22
Promass F/DN 25High-temperature versionPromass F/DN 250 (0 to 2 200 000 kg/h) • Tube material: Stainless steel, Alloy C-22 • High-temperature version up to 350 °C • Also for custody transfer • Also for custody transfer Promass H Promass E Promass S • Single-tube system especially for chemically aggressive uids (DN 8 to 50) • Cost-effective sensor for low-end applications (DN 8 to 50) • Single-tube hygienic sensor for the food industry (DN 8 to 50) • Standard approvals: 3A, EHEDG, FDA and SIL2 • Tube material: Zirconium • Tube material: Stainless steel • Tube material: Stainless steel Promass M Promass I Promass P • For high pressures up to 350 bar (DN 8 to 80) • Straight, easily cleanable single-tube system for hygienic applications (DN 8 to 80) • Single-tube hygienic sensor for life sciences industries (DN 8 to 50) • Tube material: Titanium • Also for custody transfer • Complying with industry standards, e.g. ASME, BPE, ISPE, FDA, EHEDG and 3A • Tube material: Titanium • Viscosity measurement (optional) • Tube material: Stainless steel
TIIS 9
