Pre-assembled measuring unitApplication-speci c con gurationUp to 400 bar / 1000 °C

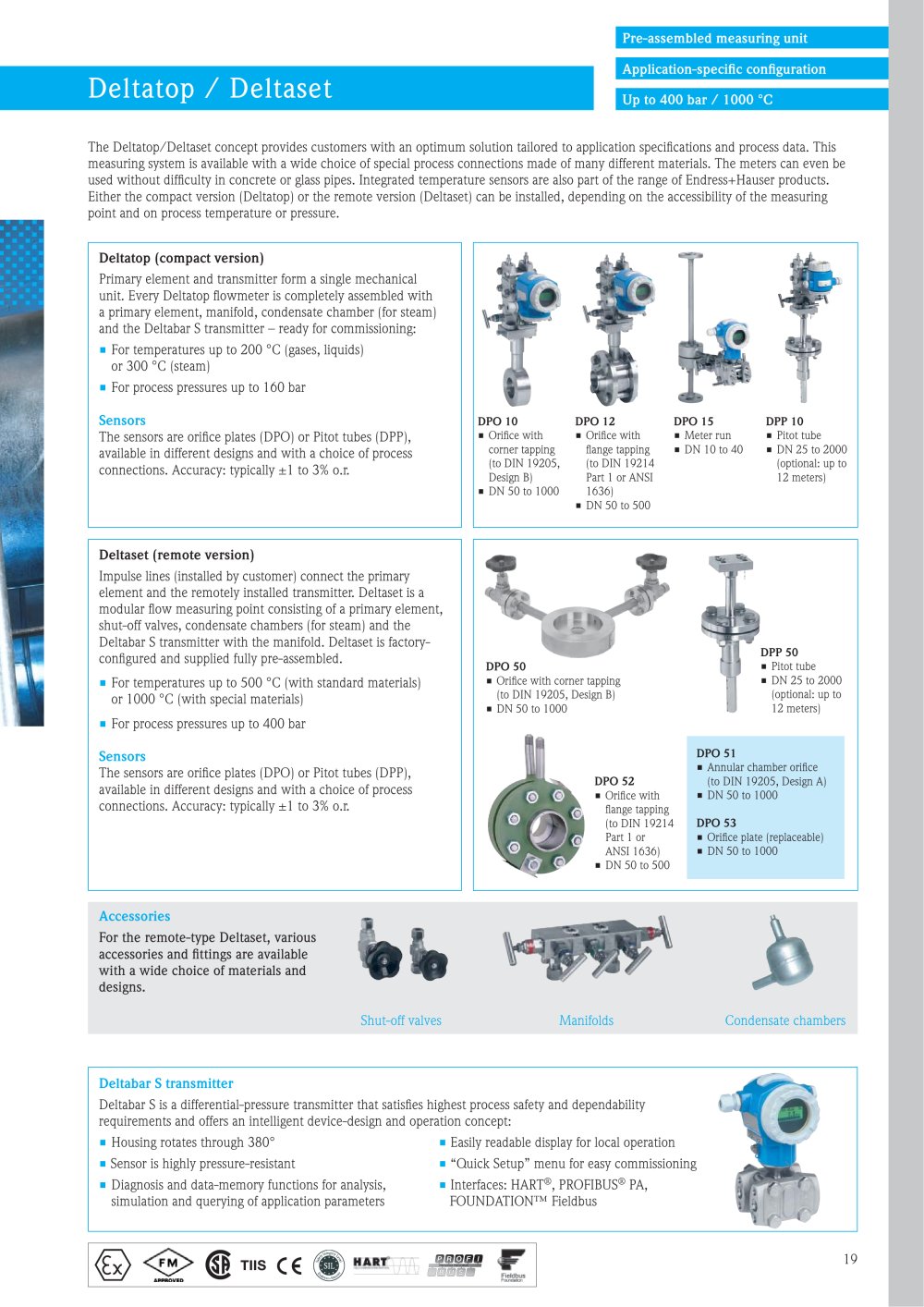

Flow Measurement - 4726 Deltatop / Deltaset

The Deltatop/Deltaset concept provides customers with an optimum solution tailored to application speci cations and process data. This measuring system is available with a wide choice of special process connections made of many different materials. The meters can even be used without dif culty in concrete or glass pipes. Integrated temperature sensors are also part of the range of Endress+Hauser products.Either the compact version (Deltatop) or the remote version (Deltaset) can be installed, depending on the accessibility of the measuring point and on process temperature or pressure.
DPP 10 • Pitot tube • DN 25 to 2000 (optional: up to 12 meters) DPO 15 • Meter run • DN 10 to 40 Deltatop (compact version) Primary element and transmitter form a single mechanical unit. Every Deltatop owmeter is completely assembled with a primary element, manifold, condensate chamber (for steam) and the Deltabar S transmitter – ready for commissioning:
DPO 12 • Ori ce with ange tapping (to DIN 19214 Part 1 or ANSI 1636) • DN 50 to 500 • For temperatures up to 200 °C (gases, liquids) or 300 °C (steam)
DPP 50 • For process pressures up to 160 bar
• Pitot tube • DN 25 to 2000 (optional: up to 12 meters) Sensors
DPO 10 The sensors are ori ce plates (DPO) or Pitot tubes (DPP), available in different designs and with a choice of process connections. Accuracy: typically ±1 to 3% o.r.
• Ori ce with corner tapping (to DIN 19205, Design B) • DN 50 to 1000 Deltaset (remote version) Impulse lines (installed by customer) connect the primary element and the remotely installed transmitter. Deltaset is a modular ow measuring point consisting of a primary element, shut-off valves, condensate chambers (for steam) and the Deltabar S transmitter with the manifold. Deltaset is factory- con gured and supplied fully pre-assembled.
DPO 52 • Ori ce with ange tapping (to DIN 19214 Part 1 or ANSI 1636) • DN 50 to 500 DPO 50 • For temperatures up to 500 °C (with standard materials) or 1000 °C (with special materials)
• Ori ce with corner tapping (to DIN 19205, Design B) • DN 50 to 1000 DPO 51 • Annular chamber ori ce (to DIN 19205, Design A) • DN 50 to 1000 DPO 53 • For process pressures up to 400 bar
• Ori ce plate (replaceable) • DN 50 to 1000 Sensors The sensors are ori ce plates (DPO) or Pitot tubes (DPP), available in different designs and with a choice of process connections. Accuracy: typically ±1 to 3% o.r. Accessories For the remote-type Deltaset, various accessories and ttings are available with a wide choice of materials and designs. Shut-off valvesManifoldsCondensate chambers Deltabar S transmitter Deltabar S is a differential-pressure transmitter that satis es highest process safety and dependability requirements and offers an intelligent device-design and operation concept: • Housing rotates through 380° • Easily readable display for local operation • Sensor is highly pressure-resistant • “Quick Setup” menu for easy commissioning • Diagnosis and data-memory functions for analysis, • Interfaces: HART
® , PROFIBUS
® PA, simulation and querying of application parameters FOUNDATION™ Fieldbus TIIS 19
