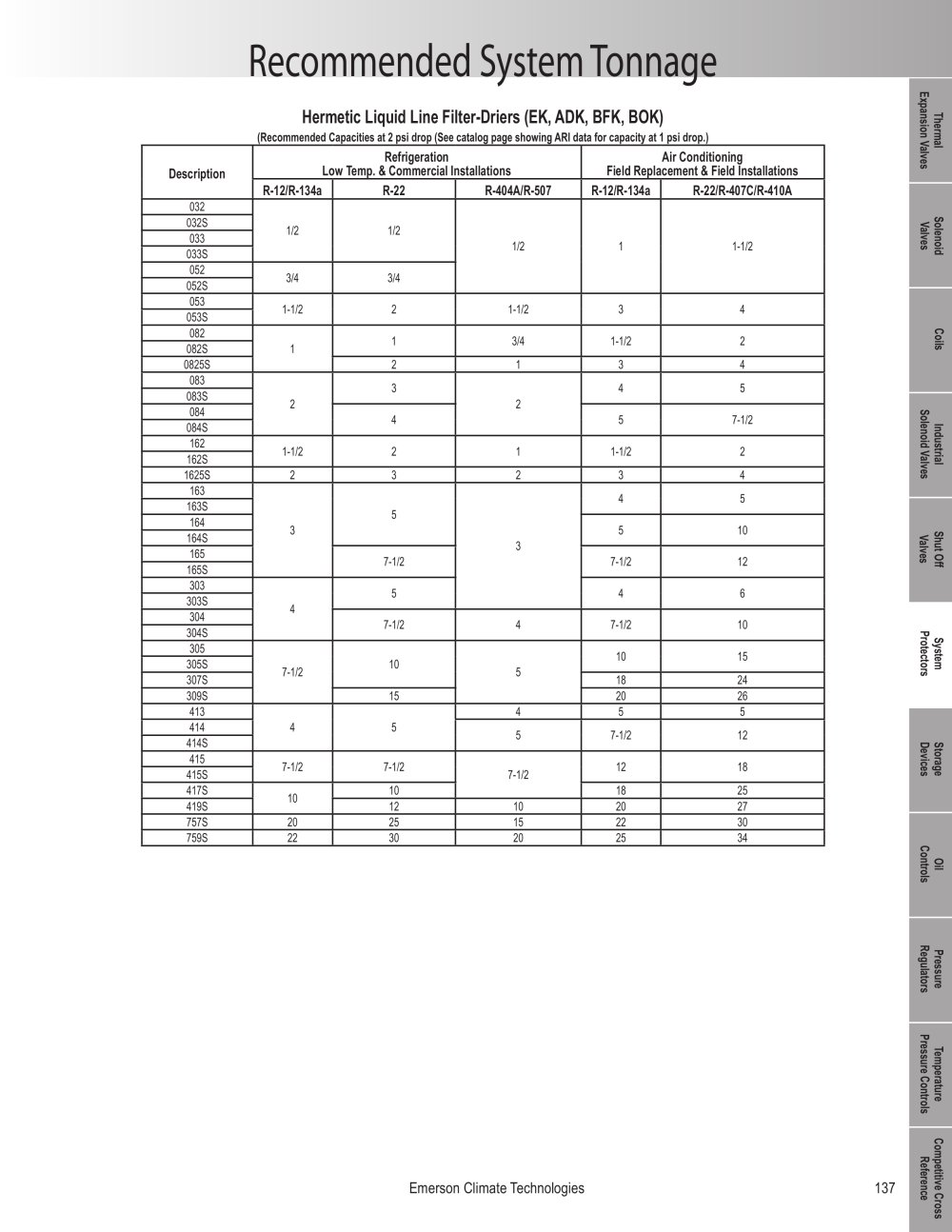

Recommended System Tonnage

Hermetic Liquid Line Filter-Driers (EK, ADK, BFK, BOK)


Description	Refrigeration Low Temp. & Commercial Installations			Air Conditioning Field Replacement & Field Installations
Description	R-12/R-134a	R-22	R-404A/R-507	R-12/R-134a	R-22/R-407C/R-410A
032	1/2	1/2	1/2	1	1-1/2
032S
033
033S
052	3/4	3/4
052S	3/4	3/4
053	1-1/2	2	1-1/2	3	4
053S	1-1/2	2	1-1/2	3	4
082	1	1	3/4	1-1/2	2
082S		1	3/4	1-1/2	2
0825S		2	1	3	4
083	2	3	2	4	5
083S		3		4	5
084		4		5	7-1/2
084S		4		5	7-1/2
162	1-1/2	2	1	1-1/2	2
162S	1-1/2	2	1	1-1/2	2
1625S	2	3	2	3	4
163	3	5	3	4	5
163S				4	5
164				5	10
164S				5	10
165		7-1/2		7-1/2	12
165S		7-1/2		7-1/2	12
303	4	5		4	6
303S		5		4	6
304		7-1/2	4	7-1/2	10
304S		7-1/2	4	7-1/2	10
305	7-1/2	10	5	10	15
305S				10	15
307S				18	24
309S		15		20	26
413	4	5	4	5	5
414			5	7-1/2	12
414S			5	7-1/2	12
415	7-1/2	7-1/2	7-1/2	12	18
415S	7-1/2	7-1/2		12	18
417S	10	10		18	25
419S	10	12	10	20	27
757S	20	25	15	22	30
759S	22	30	20	25	34

Emerson Climate Technologies

137
