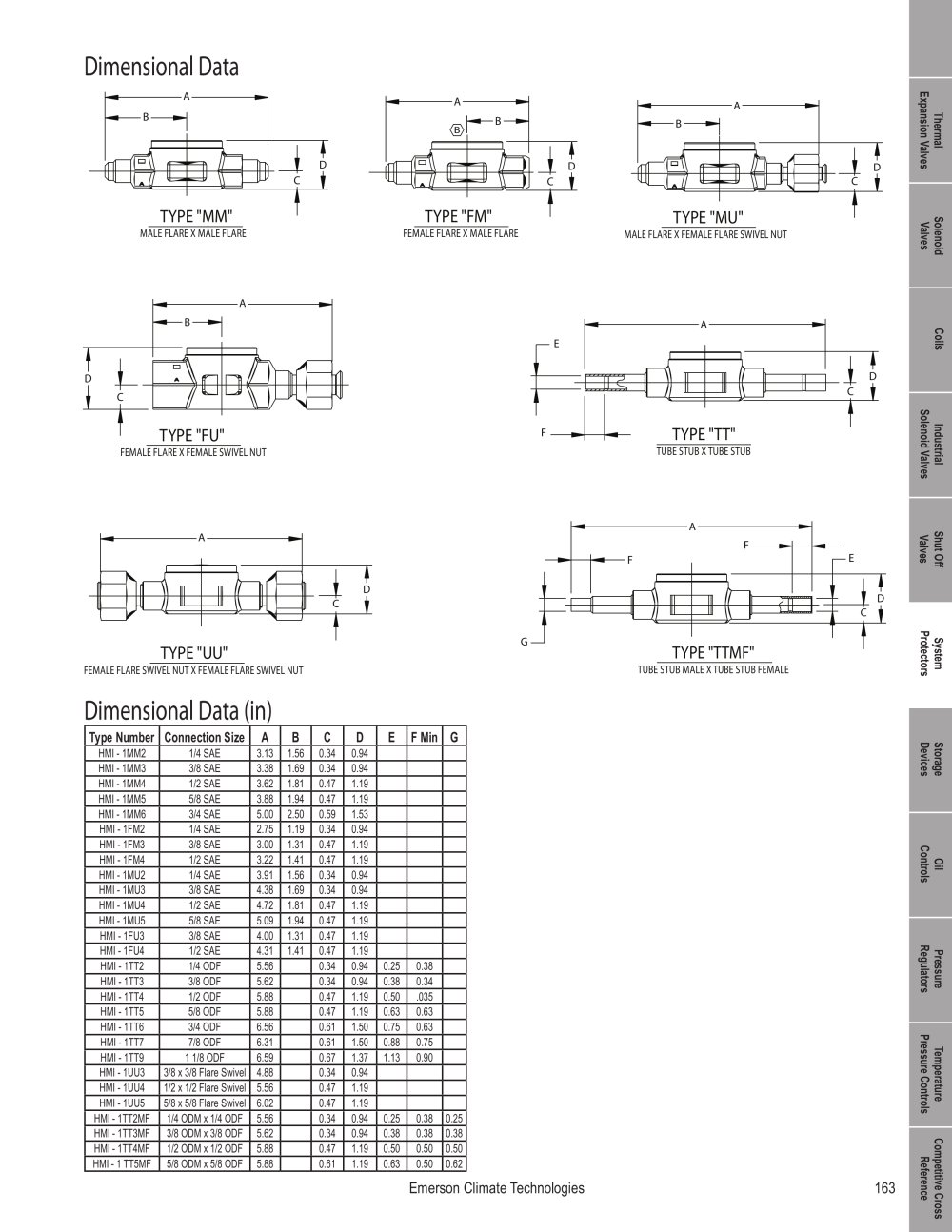

Dimensional Data Dimensional Data (in)

A DC
B DC D

TYPE "MM" TYPE "FM" TYPE "MU"

Solenoid ValvesTemperature Pressure ControlsCoilsIndustrial Solenoid ValvesShut Off ValvesSystem ProtectorsStorage DevicesOil ControlsPressureRegulatorsCompetitive Cross ReferenceThermalExpansion Valves MALE FLARE X MALE FLARE FEMALE FLARE X MALE FLARE MALE FLARE X FEMALE FLARE SWIVEL NUT AB ABDC FC A ABDCB E

TYPE "FU" TYPE "TT"

FEMALE FLARE X FEMALE SWIVEL NUT TUBE STUB X TUBE STUB A GFEFDC ADC

TYPE "UU" TYPE "TTMF"

FEMALE FLARE SWIVEL NUT X FEMALE FLARE SWIVEL NUT TUBE STUB MALE X TUBE STUB FEMALE

Type NumberConnection SizeABCDEF MinG

HMI - 1MM21/4 SAE3.13 1.56 0.340.94HMI - 1MM33/8 SAE3.38 1.69 0.340.94 HMI - 1MM41/2 SAE3.62 1.81 0.471.19HMI - 1MM55/8 SAE3.88 1.94 0.471.19HMI - 1MM63/4 SAE5.00 2.50 0.591.53HMI - 1FM21/4 SAE2.75 1.19 0.340.94 HMI - 1FM33/8 SAE3.00 1.31 0.471.19 HMI - 1FM41/2 SAE3.22 1.41 0.471.19HMI - 1MU21/4 SAE3.91 1.56 0.340.94HMI - 1MU33/8 SAE4.38 1.69 0.340.94 HMI - 1MU41/2 SAE4.72 1.81 0.471.19 HMI - 1MU55/8 SAE5.09 1.94 0.471.19HMI - 1FU33/8 SAE4.00 1.31 0.471.19HMI - 1FU41/2 SAE4.31 1.41 0.471.19HMI - 1TT21/4 ODF5.56 0.340.940.250.38 HMI - 1TT33/8 ODF5.62 0.340.940.380.34 HMI - 1TT41/2 ODF5.88 0.471.190.50.035 HMI - 1TT55/8 ODF5.88 0.471.190.630.63HMI - 1TT63/4 ODF6.56 0.611.500.750.63HMI - 1TT77/8 ODF6.31 0.611.500.880.75 HMI - 1TT91 1/8 ODF6.59 0.671.371.130.90HMI - 1UU33/8 x 3/8 Flare Swivel4.88 0.340.94 HMI - 1UU41/2 x 1/2 Flare Swivel5.56 0.471.19HMI - 1UU55/8 x 5/8 Flare Swivel6.02 0.471.19HMI - 1TT2MF1/4 ODM x 1/4 ODF5.56 0.340.940.250.380.25 HMI - 1TT3MF3/8 ODM x 3/8 ODF5.62 0.340.940.380.380.38 HMI - 1TT4MF1/2 ODM x 1/2 ODF5.88 0.471.190.500.500.50HMI - 1 TT5MF5/8 ODM x 5/8 ODF5.88 0.611.190.630.500.62
