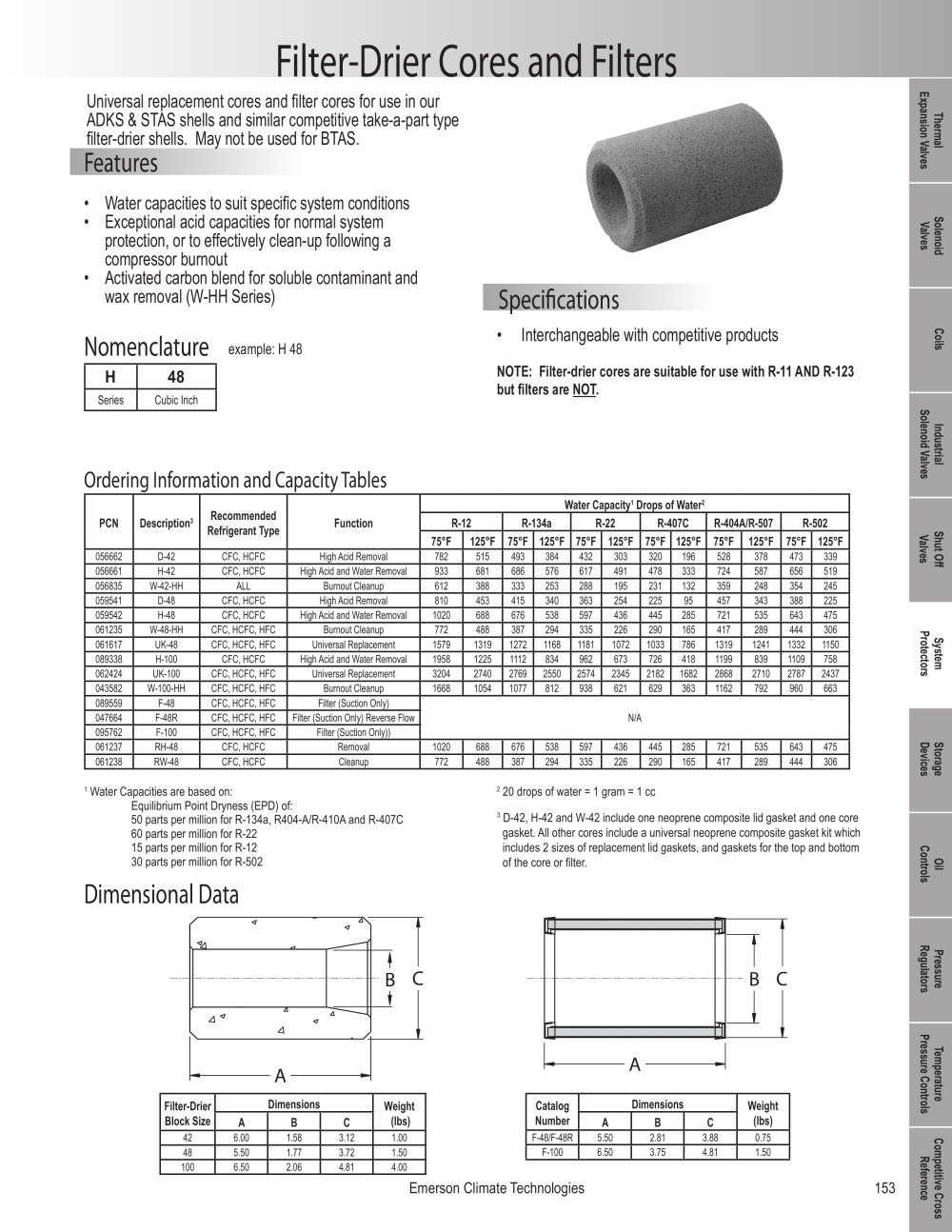

Filter-Drier Cores and Filters

X "o

tu i

^o<

CD CA

Universal replacement cores and filter cores for use in our ADKS & STAS shells and similar competitive take-a-part type filter-drier shells. May not be used for BTAS.

Features

• Water capacities to suit specific system conditions

• Exceptional acid capacities for normal system protection, or to effectively clean-up following a compressor burnout

• Activated carbon blend for soluble contaminant and wax removal (W-HH Series)

—i

^al ^ole ^s ^oi

Specifications

• Interchangeable with competitive products

NOTE: Filter-drier cores are suitable for use with R-11 AND R-123 but filters are NOT.

Nomenclature

example: H 48


	H	48
	Series	Cubic Inch

ⁿt ^al

Ordering Information and Capacity Tables


PCN	Description³	Recommended Refrigerant Type				Function	Water Capacity¹ Drops of Water²
							R-12		R-134a		R-22		R-407C		R-404A/R-507			R-502
							75°F	125°F	75°F	125°F	75°F	125°F	75°F	125°F	75°F	125°F		75°F	125°F
056662	D-42	CFC, H		CFC		High Acid Removal	782	515	493	384	432	303	320	196	528	378		473	339
056661	H-42	CFC, H		CFC		High Acid and Water Removal	933	681	686	576	617	491	478	333	724	587		656	519
056835	W-42-HH	AL		L		Burnout Cleanup	612	388	333	253	288	195	231	132	359	2	8	354	245
059541	D-48	CFC, H		CFC		High Acid Removal	810	453	415	340	363	254	225	95	457	3	3	388	225
059542	H-48	CFC, H		CFC		High Acid and Water Removal	1020	688	676	538	597	436	445	285	721	5	5	643	475
061235	W-48-HH	CFC, HCFC, HFC				Burnout Cleanup	772	488	387	294	335	226	290	165	417	289		444	306
061617	UK-48	CFC, HCFC, HFC				Universal Replacement	1579	1319	1272	1168	1181	1072	1033	786	1319	1241		1332	1150
089338	H-100	CFC, HCFC				High Acid and Water Removal	1958	1225	1112	834	962	673	726	418	1199	839		1109	758
062424	UK-100	CFC, ^	CFC,		FC	Universal Replacement	3204	2740	2769	2550	2574	2345	2182	1682	2868	2710		2787	2437
043582	W-100-HH	CFC, [	CFC,		FC	Burnout Cleanup	1668	1054	1077	812	938	621	629	363	1162	792		960	663
089559	F-48	CFC, [	CFC,		FC	Filter (Suction Only)	N/A
047664	F-48R	CFC, [	CFC,		FC	Filter (Suction Only) Reverse Flow
095762	F-100	cfc, ^	CFC, f		1FC	Filter (Suction Only))
061237	RH-48	CFC, HCFC				Removal	1020	688	676	538	597	436	445	285	721	535		643	475
061238	RW-48	CFC, HCFC				Cleanup	772	488	387	294	335	226	290	165	417	289		444	306

< ^-CD O

^{P o}

^et _te

^or

^ces ^ge

CA CD

¹ Water Capacities are based on:

Equilibrium Point Dryness (EPD) of:

50 parts per million for R-134a, R404-A/R-410A and R-407C

60 parts per million for R-22

15 parts per million for R-12

30 parts per million for R-502

² 20 drops of water = 1 gram = 1 cc

³ D-42, H-42 and W-42 include one neoprene composite lid gasket and one core gasket. All other cores include a universal neoprene composite gasket kit which includes 2 sizes of replacement lid gaskets, and gaskets for the top and bottom of the core or filter.

o t

^ol ^s

i_l

Dimensional Data

^Re ^Pr

l^s

O) CA

^rs ^e

^Pr

CD _,

^s ^em ^e ^er

ⁿt ^tCr ^rol

^Re ^pe

r ^it_i

CD <" 13 CD

^e ^Cr

CA CA

♦

B c *

B c


Filter-Drier Block Size	Dimensions			Weight (lbs)
Filter-Drier Block Size	A	B	C	Weight (lbs)
42	6.00	1.58	3.12		.00
48	5.50	1.77	3.72	_	.50
100	6.50	2.06	4.81	_ ₄	.00


Catalog Number	Dimensions			Weight (lbs)
Catalog Number	A	B	C	Weight (lbs)
F-48/F-48R	5.50	2.81	3.88	0.75
F-100	6.50	3.75	4.81	1.50

Emerson Climate Technologies

153
