t
EMERSON
Climate Technologies
m x -a at
i o"
I <
CD CA
—I D
3 l

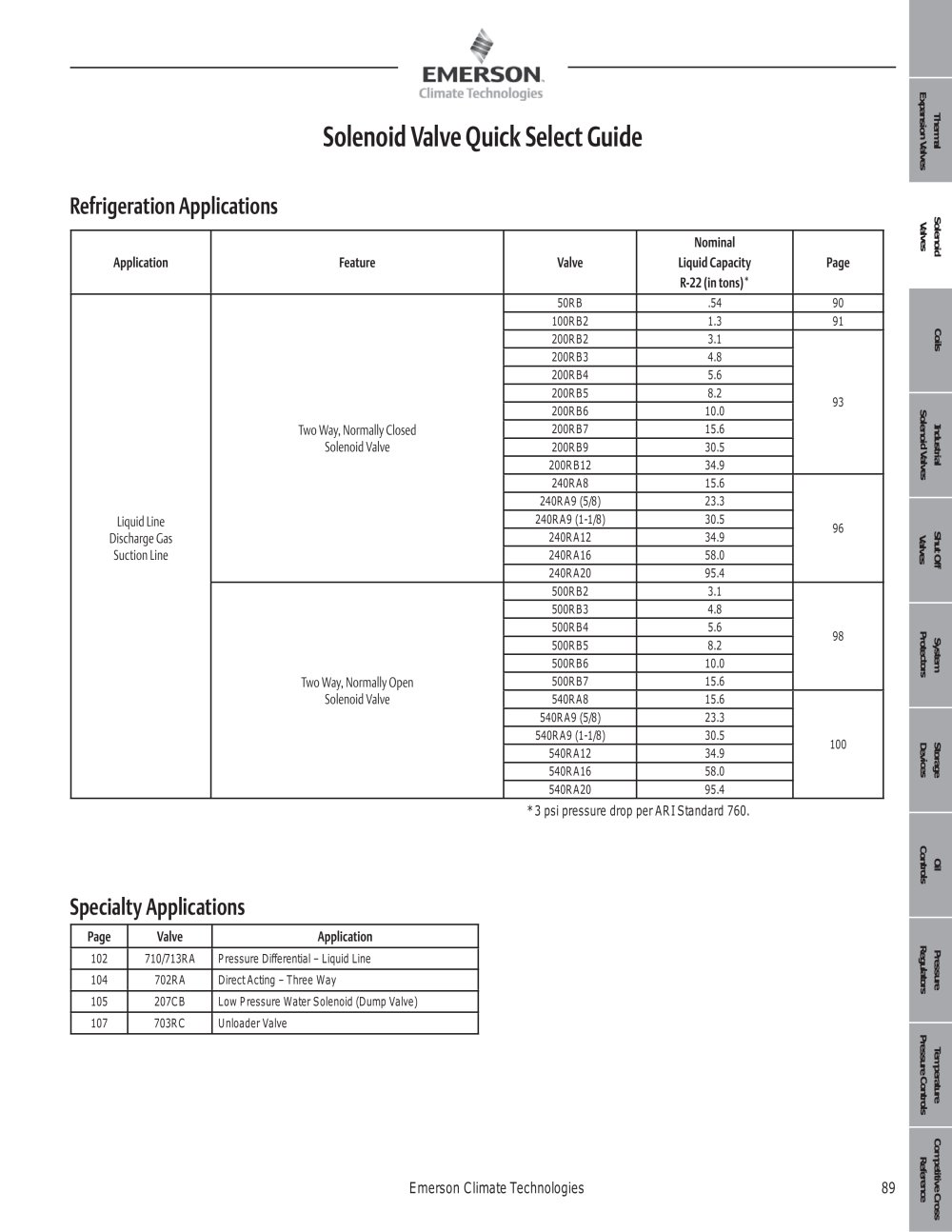

Solenoid Valve Quick Select Guide
Refrigeration Applications
Valve
Nominal Liquid Capacity R-22 (in tons)*
Page
50RB
.54
90
100RB2
1.3
91
200RB2
3.1
93
200RB3
4.8
200RB4
5.6
200RB5
8.2
200RB6
10.0
200RB7
15.6
200RB9
30.5
200RB12
34.9
240RA8
15.6
96
240RA9 (5/8)
23.3
240RA9 (1-1/8)
30.5
240RA12
34.9
240RA16
58.0
240RA20
95.4
500RB2
3.1
98
500RB3
4.8
500RB4
5.6
500RB5
8.2
500RB6
10.0
500RB7
15.6
540RA8
15.6
100
540RA9 (5/8)
23.3
540RA9 (1-1/8)
30.5
540RA12
34.9
540RA16
58.0
540RA20
95.4
e n
Application
Feature
o i
O <
CD CA
Two Way, Normally Closed Solenoid Valve
Liquid Line Discharge Gas Suction Line
< a CD
D
Two Way, Normally Open Solenoid Valve
i d cas
CA CD
* 3 psi pressure drop per ARI Standard 760.
o
o §
CA
Specialty Applications
Page
Valve
Application
102
710/713RA
Pressure Differential - Liquid Line
104
702RA
Direct Acting - Three Way
105
207CB
Low Pressure Water Solenoid (Dump Valve)
107
703RC
Unloader Valve
e DD OC
§ CA
DC e
DD
CD _,
D E
a D
O a
§ D DoO
C
o
o
sS
f CD
S <" 13 CD
e oD
o
CA CA
Emerson Climate Technologies
89
