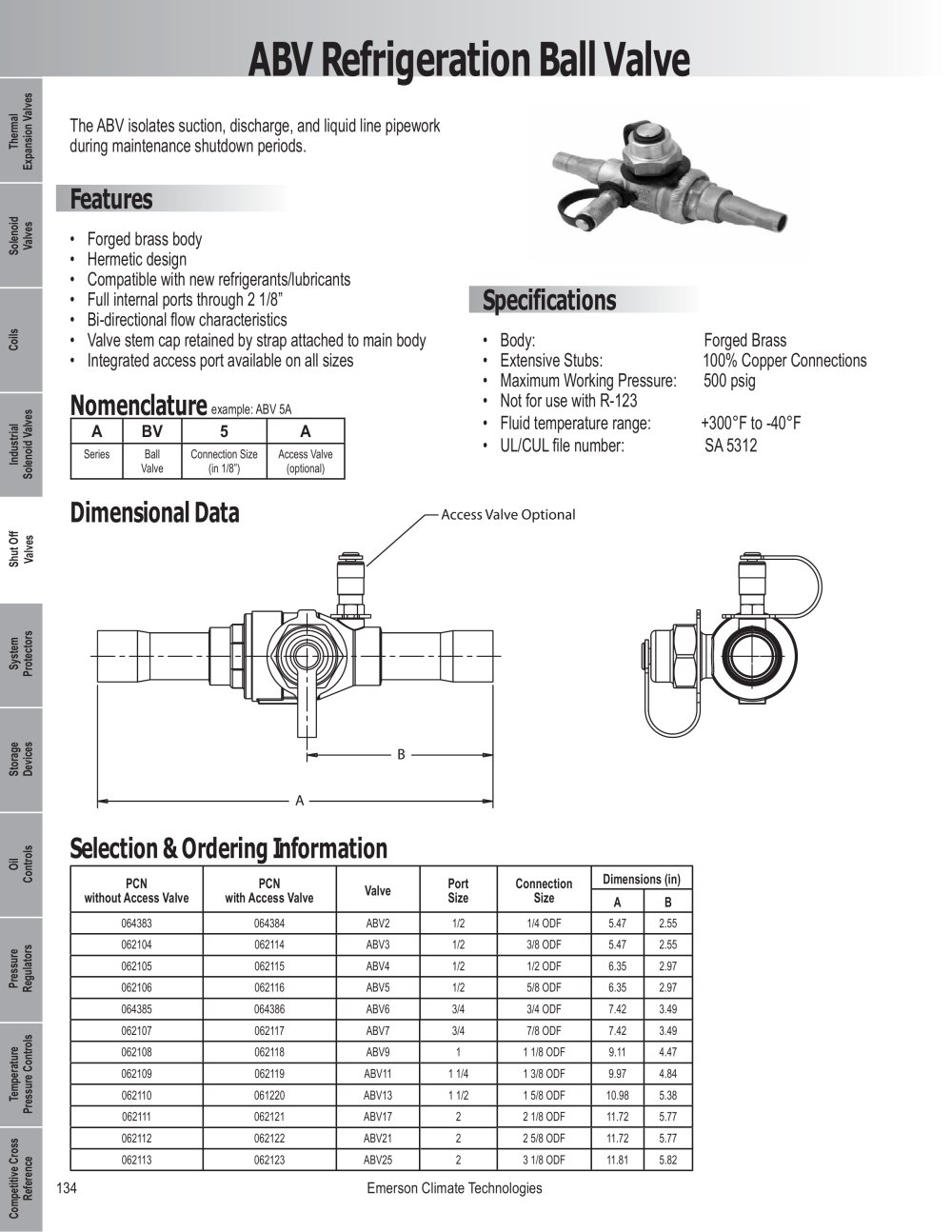

ABV Refrigeration Ball Valve

The ABV isolates suction, discharge, and liquid line pipework during maintenance shutdown periods.• Forged brass body• Hermetic design • Compatible with new refrigerants/lubricants • Full internal ports through 2 1/8” • Bi-directional ow characteristics • Valve stem cap retained by strap attached to main body • Integrated access port available on all sizes Features
Solenoid ValvesTemperature Pressure ControlsCoilsIndustrial Solenoid ValvesShut Off ValvesSystem ProtectorsStorage DevicesOil ControlsPressureRegulatorsCompetitive Cross ReferenceThermalExpansion Valves Specifications
• Body: Forged Brass • Extensive Stubs: 100% Copper Connections • Maximum Working Pressure: 500 psig • Not for use with R-123• Fluid temperature range: +300°F to -40°F • UL/CUL le number: SA 5312 example: ABV 5A ABV5A SeriesBallValveConnection Size(in 1/8”)Access Valve(optional) Selection & Ordering Information Dimensional DataNomenclature
