Text version of the page

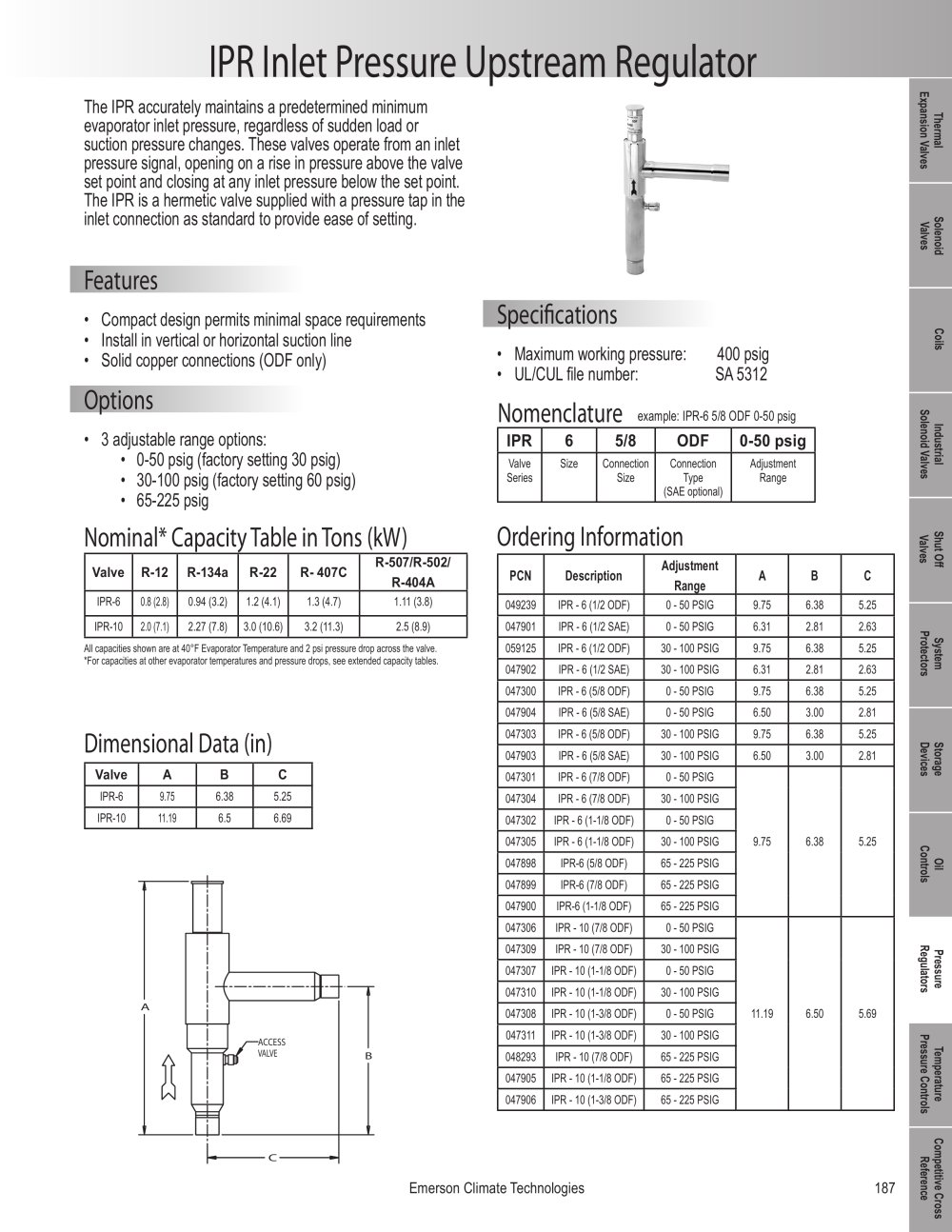

IPR Inlet Pressure Upstream Regulator

The IPR accurately maintains a predetermined minimum evaporator inlet pressure, regardless of sudden load or suction pressure changes. These valves operate from an inlet pressure signal, opening on a rise in pressure above the valve set point and closing at any inlet pressure below the set point. The IPR is a hermetic valve supplied with a pressure tap in the inlet connection as standard to provide ease of setting.

Solenoid ValvesTemperature Pressure ControlsCoilsIndustrial Solenoid ValvesShut Off ValvesSystem ProtectorsStorage DevicesOil ControlsPressureRegulatorsCompetitive Cross ReferenceThermalExpansion Valves

Features

• Compact design permits minimal space requirements• Install in vertical or horizontal suction line • Solid copper connections (ODF only)

Specications

• Maximum working pressure: 400 psig • UL/CUL file number: SA 5312

Options Nomenclature

example: IPR-6 5/8 ODF 0-50 psig

• 3 adjustable range options: • 0-50 psig (factory setting 30 psig) • 30-100 psig (factory setting 60 psig) • 65-225 psig

IPR65/8ODF0-50 psig

ValveSeriesSizeConnectionSizeConnectionType(SAE optional)AdjustmentRange

Nominal* Capacity Table in Tons (kW) Ordering Information

ValveR-12R-134aR-22R- 407CR-507/R-502/R-404A PCNDescription Adjustment RangeABC

IPR-6 0.8 (2.8) 0.94 (3.2)1.2 (4.1)1.3 (4.7)1.11 (3.8)IPR-10 049239IPR - 6 (1/2 ODF)0 - 50 PSIG9.756.385.25047901IPR - 6 (1/2 SAE)0 - 50 PSIG6.312.812.63 059125IPR - 6 (1/2 ODF)30 - 100 PSIG9.756.385.25047902IPR - 6 (1/2 SAE)30 - 100 PSIG6.312.812.63047300IPR - 6 (5/8 ODF)0 - 50 PSIG9.756.385.25 047904IPR - 6 (5/8 SAE)0 - 50 PSIG6.503.002.81047303IPR - 6 (5/8 ODF)30 - 100 PSIG9.756.385.25047903IPR - 6 (5/8 SAE)30 - 100 PSIG6.503.002.81047301IPR - 6 (7/8 ODF)0 - 50 PSIG9.756.385.25047304IPR - 6 (7/8 ODF)30 - 100 PSIG047302IPR - 6 (1-1/8 ODF)0 - 50 PSIG047305IPR - 6 (1-1/8 ODF)30 - 100 PSIG047898IPR-6 (5/8 ODF)65 - 225 PSIG 047899IPR-6 (7/8 ODF)65 - 225 PSIG047900IPR-6 (1-1/8 ODF)65 - 225 PSIG047306IPR - 10 (7/8 ODF)0 - 50 PSIG11.196.505.69047309IPR - 10 (7/8 ODF)30 - 100 PSIG047307IPR - 10 (1-1/8 ODF)0 - 50 PSIG 047310IPR - 10 (1-1/8 ODF)30 - 100 PSIG047308IPR - 10 (1-3/8 ODF)0 - 50 PSIG047311IPR - 10 (1-3/8 ODF)30 - 100 PSIG048293IPR - 10 (7/8 ODF)65 - 225 PSIG047905IPR - 10 (1-1/8 ODF)65 - 225 PSIG 047906IPR - 10 (1-3/8 ODF)65 - 225 PSIG 2.0 (7.1) 2.27 (7.8)3.0 (10.6)3.2 (11.3)2.5 (8.9)
All capacities shown are at 40°F Evaporator Temperature and 2 psi pressure drop across the valve. *For capacities at other evaporator temperatures and pressure drops, see extended capacity tables.

Dimensional Data (in)

ValveABC

IPR-6 9.75 6.385.25IPR-10 11.19 6.56.69
A ACCESS VALVE B C

187Emerson Climate Technologies
