Regulators Extended Capacities in kW

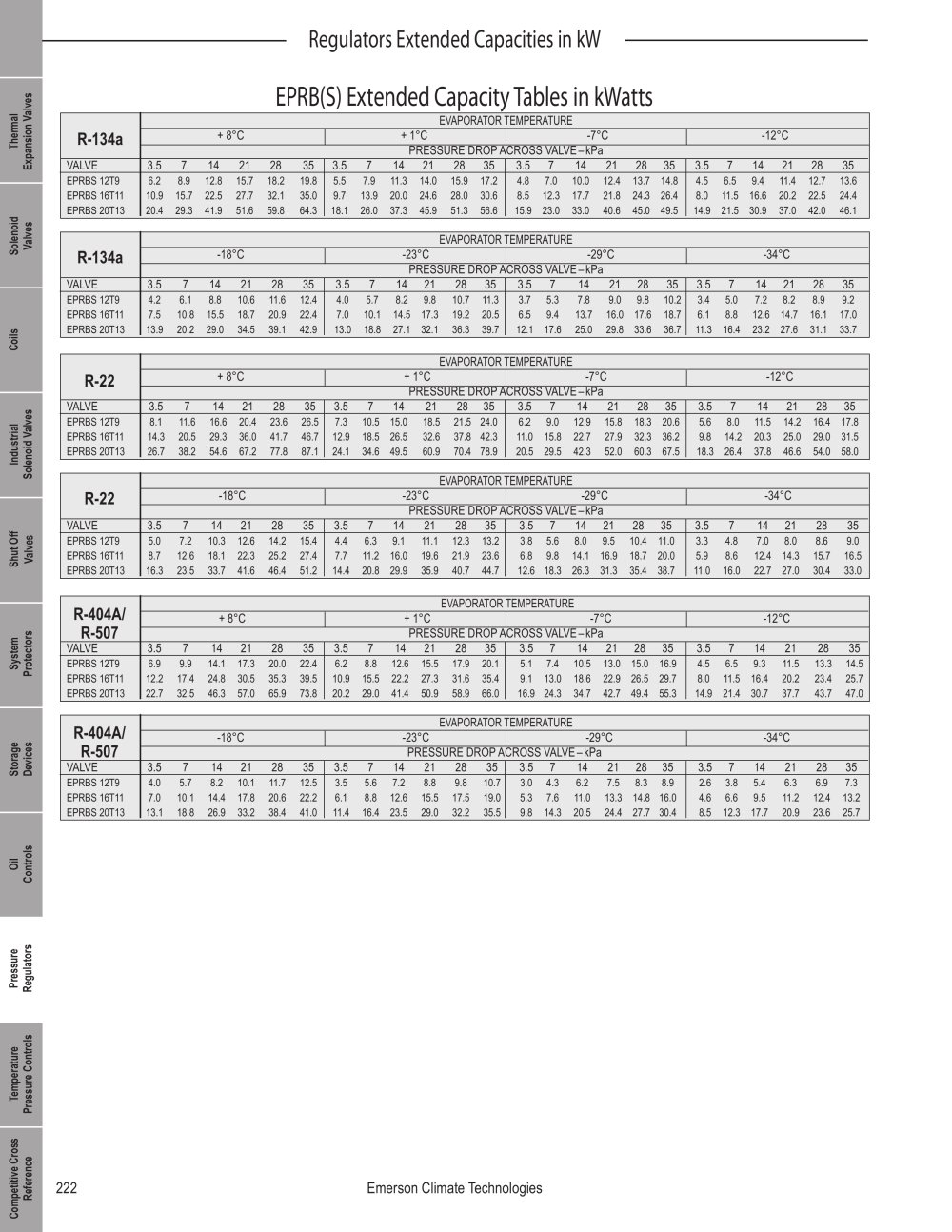

Pressure Regulator - 34558 EPRB(S) Extended Capacity Tables in kWatts

EVAPORATOR TEMPERATURE + 8°C + 1°C -7°C -12°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35

R-134aR-134aR-22R-22

EPRBS 12T9 6.2 8.9 12.8 15.7 18.2 19.8 5.5 7.9 11.3 14.0 15.9 17.2 4.8 7.0 10.0 12.4 13.7 14.8 4.5 6.5 9.4 11.4 12.7 13.6 EPRBS 16T11 10.9 15.7 22.5 27.7 32.1 35.0 9.7 13.9 20.0 24.6 28.0 30.6 8.5 12.3 17.7 21.8 24.3 26.4 8.0 11.5 16.6 20.2 22.5 24.4 EPRBS 20T13 20.4 29.3 41.9 51.6 59.8 64.3 18.1 26.0 37.3 45.9 51.3 56.6 15.9 23.0 33.0 40.6 45.0 49.5 14.9 21.5 30.9 37.0 42.0 46.1 EVAPORATOR TEMPERATURE
Solenoid ValvesTemperature Pressure ControlsCoilsIndustrial Solenoid ValvesShut Off ValvesSystem ProtectorsStorage DevicesOil ControlsPressureRegulatorsCompetitive Cross ReferenceThermalExpansion Valves -18°C -23°C -29°C -34°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35
EPRBS 12T9 4.2 6.1 8.8 10.6 11.6 12.4 4.0 5.7 8.2 9.8 10.7 11.3 3.7 5.3 7.8 9.0 9.8 10.2 3.4 5.0 7.2 8.2 8.9 9.2 EPRBS 16T11 7.5 10.8 15.5 18.7 20.9 22.4 7.0 10.1 14.5 17.3 19.2 20.5 6.5 9.4 13.7 16.0 17.6 18.7 6.1 8.8 12.6 14.7 16.1 17.0 EPRBS 20T13 13.9 20.2 29.0 34.5 39.1 42.9 13.0 18.8 27.1 32.1 36.3 39.7 12.1 17.6 25.0 29.8 33.6 36.7 11.3 16.4 23.2 27.6 31.1 33.7 EVAPORATOR TEMPERATURE + 8°C + 1°C -7°C -12°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35
EPRBS 12T9 8.1 11.6 16.6 20.4 23.6 26.5 7.3 10.5 15.0 18.5 21.5 24.0 6.2 9.0 12.9 15.8 18.3 20.6 5.6 8.0 11.5 14.2 16.4 17.8 EPRBS 16T11 14.3 20.5 29.3 36.0 41.7 46.7 12.9 18.5 26.5 32.6 37.8 42.3 11.0 15.8 22.7 27.9 32.3 36.2 9.8 14.2 20.3 25.0 29.0 31.5 EPRBS 20T13 26.7 38.2 54.6 67.2 77.8 87.1 24.1 34.6 49.5 60.9 70.4 78.9 20.5 29.5 42.3 52.0 60.3 67.5 18.3 26.4 37.8 46.6 54.0 58.0 EVAPORATOR TEMPERATURE -18°C -23°C -29°C -34°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35
EPRBS 12T9 5.0 7.2 10.3 12.6 14.2 15.4 4.4 6.3 9.1 11.1 12.3 13.2 3.8 5.6 8.0 9.5 10.4 11.0 3.3 4.8 7.0 8.0 8.6 9.0 EPRBS 16T11 8.7 12.6 18.1 22.3 25.2 27.4 7.7 11.2 16.0 19.6 21.9 23.6 6.8 9.8 14.1 16.9 18.7 20.0 5.9 8.6 12.4 14.3 15.7 16.5 EPRBS 20T13 16.3 23.5 33.7 41.6 46.4 51.2 14.4 20.8 29.9 35.9 40.7 44.7 12.6 18.3 26.3 31.3 35.4 38.7 11.0 16.0 22.7 27.0 30.4 33.0

R-404A/R-507R-404A/R-507

EVAPORATOR TEMPERATURE + 8°C + 1°C -7°C -12°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35
EPRBS 12T9 6.9 9.9 14.1 17.3 20.0 22.4 6.2 8.8 12.6 15.5 17.9 20.1 5.1 7.4 10.5 13.0 15.0 16.9 4.5 6.5 9.3 11.5 13.3 14.5 EPRBS 16T11 12.2 17.4 24.8 30.5 35.3 39.5 10.9 15.5 22.2 27.3 31.6 35.4 9.1 13.0 18.6 22.9 26.5 29.7 8.0 11.5 16.4 20.2 23.4 25.7 EPRBS 20T13 22.7 32.5 46.3 57.0 65.9 73.8 20.2 29.0 41.4 50.9 58.9 66.0 16.9 24.3 34.7 42.7 49.4 55.3 14.9 21.4 30.7 37.7 43.7 47.0 EVAPORATOR TEMPERATURE -18°C -23°C -29°C -34°C PRESSURE DROP ACROSS VALVE – kPa VALVE 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35 3.5 7 14 21 28 35
EPRBS 12T9 4.0 5.7 8.2 10.1 11.7 12.5 3.5 5.6 7.2 8.8 9.8 10.7 3.0 4.3 6.2 7.5 8.3 8.9 2.6 3.8 5.4 6.3 6.9 7.3 EPRBS 16T11 7.0 10.1 14.4 17.8 20.6 22.2 6.1 8.8 12.6 15.5 17.5 19.0 5.3 7.6 11.0 13.3 14.8 16.0 4.6 6.6 9.5 11.2 12.4 13.2 EPRBS 20T13 13.1 18.8 26.9 33.2 38.4 41.0 11.4 16.4 23.5 29.0 32.2 35.5 9.8 14.3 20.5 24.4 27.7 30.4 8.5 12.3 17.7 20.9 23.6 25.7
