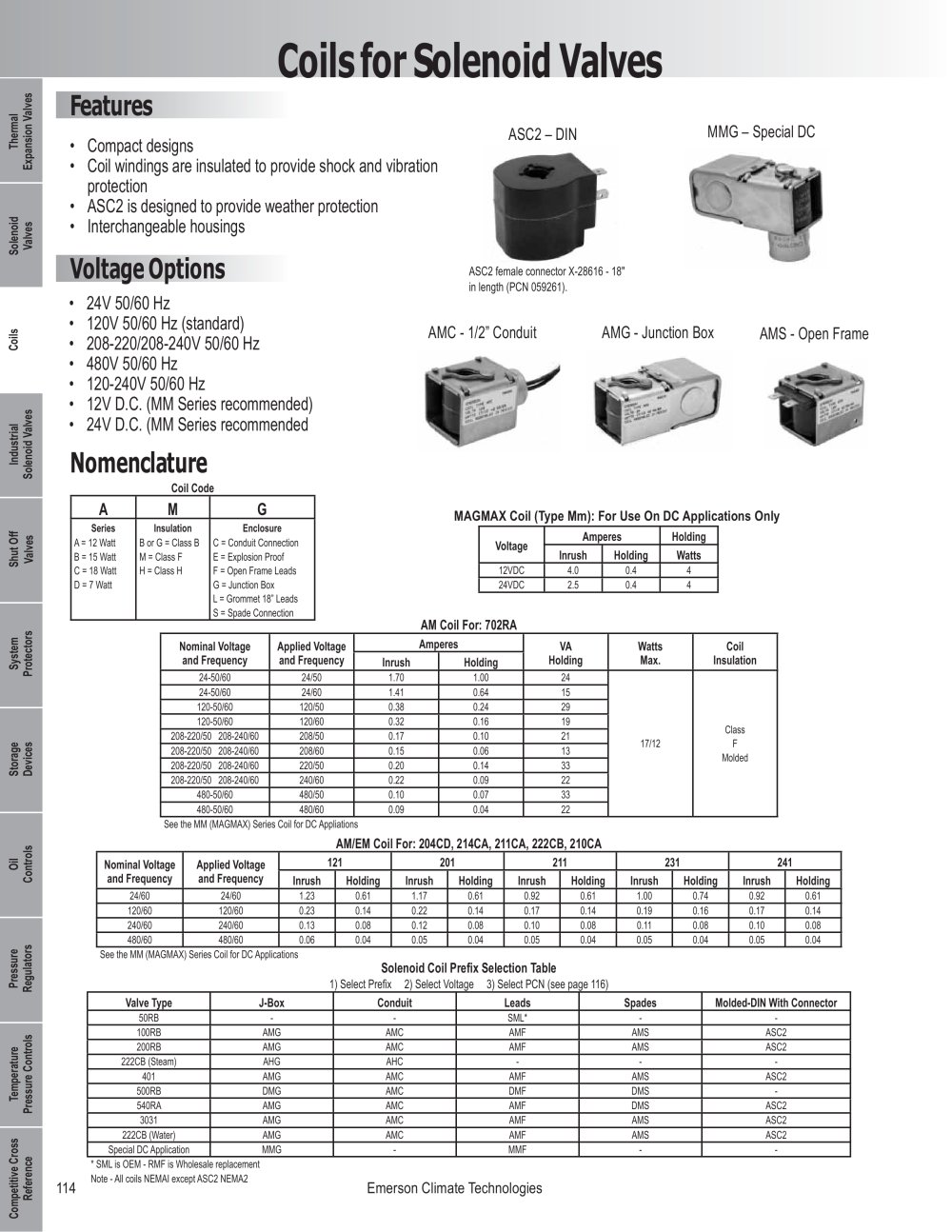

Coi ls for Solenoid Valves

Features

co E

CD |—

c o

Q_ X LU

MMG - Special DC

ASC2 - DIN

Compact designs

Coil windings are insulated to provide shock and vibration protection

ASC2 is designed to provide weather protection Interchangeable housings

"1 g

C/5

Voltage Options

• 24V 50/60 Hz

• 120V 50/60 Hz (standard)

• 208-220/208-240V 50/60 Hz

• 480V 50/60 Hz

• 120-240V 50/60 Hz

• 12V D.C. (MM Series recommended)

• 24V D.C. (MM Series recommended

Nomenclature

Coil Code

ASC2 female connector X-28616 - 18" in length (PCN 059261).

AMC - 1/2" Conduit

AMG - Junction Box

AMS - Open Frame

"Si


A	M	G
Series A = 12 Watt B = 15 Watt C = 18 Watt D = 7 Watt	Insulation B or G = Class B M = Class F H = Class H	Enclosure C = Conduit Connection E = Explosion Proof F = Open Frame Leads G = Junction Box L = Grommet 18" Leads S = Spade Connection

MAGMAX Coil (Type Mm): For Use On DC Applications Only


Voltage	Amperes		Holding
Voltage	Inrush	Holding	Watts
12VDC	4.0	0.4	4
24VDC	2.5	0.4	4

O CD CO


Nominal Voltage and Frequency		Applied Voltage and Frequency	Amperes			VA Holding	Watts Max.	Coil Insulation
Nominal Voltage and Frequency		Applied Voltage and Frequency	In	rush	Holding	VA Holding	Watts Max.	Coil Insulation
24-50/60		24/50	1	.70	1.00	24	17/12	Class F Molded
24-50/60		24/60	1	.41	0.64	15
120-50/60		120/50	0.38		0.24	29
120-50/60		120/60	0.32		0.16	19
208-220/50 208-24	0/60	208/50	0.17		0.10	21
208-220/50 208-24	0/60	208/60	0.15		0.06	13
208-220/50 208-24	0/60	220/50	0.20		0.14	33
208-220/50 208-24	0/60	240/60	0.22		0.09	22
480-50/60		480/50	0.10		0.07	33
480-50/60		480/60	0.09		0.04	22

E o co 2

CO Q

See the MM (MAGMAX) Series Coil for DC Appliations


Nominal Voltage and Frequency	Applied Voltage and Frequency	121		201		211			231		241
Nominal Voltage and Frequency	Applied Voltage and Frequency	Inrush	Holding	Inrush	Holding	Inrush		Holding	Inrush	Holding	Inrush	Holding
24/60	24/60	1.23	0.61	1.17	0.61	0.92		0.61	1.00	0.74	0.92	0.61
120/60	120/60	0.23	0.14	0.22	0.14	0.	7	0.14	0.19	0.16	0.17	0.14
240/60	240/60	0.13	0.08	0.12	0.08	0.	0	0.08	0.11	0.08	0.10	0.08
480/60	480/60	0.06	0.04	0.05	0.04	0.	5	0.04	0.05	0.04	0.05	0.04

I ° J I

> gj

See the MM (MAGMAX) Series Coil for DC Applications

Solenoid Coil Prefix Selection Table


Valve Type	J-Box		Conduit		Leads		Spades		Molded-DIN With Connector
50RB					SM	L*
100RB	AM	<G	AM	/IC	AM	F	AMS		ASC2
200RB	Ad	<G	At	/IC	AM	F	AMS		ASC2
222CB (Steam)	At	G	At	tC	■
401	Ad	(G	At	/IC	AM	F	AM	S	ASC2
500RB	DM	«3	At	/IC	DM	(F	DM	S
540RA	AM	(G	At	/IC	AM	F	DM	S	ASC2
3031	AM	(G	At	/IC	AM	F	At	S	ASC2
222CB (Water)	AM	(G	At	/IC	AM	F	AM	S	ASC2
Special DC Application	MM	HG	■		MM	F	^-

* SML is OEM - RMF is Wholesale replacement Note - All coils NEMAI except ASC2 NEMA2

114

Emerson Climate Technologies
