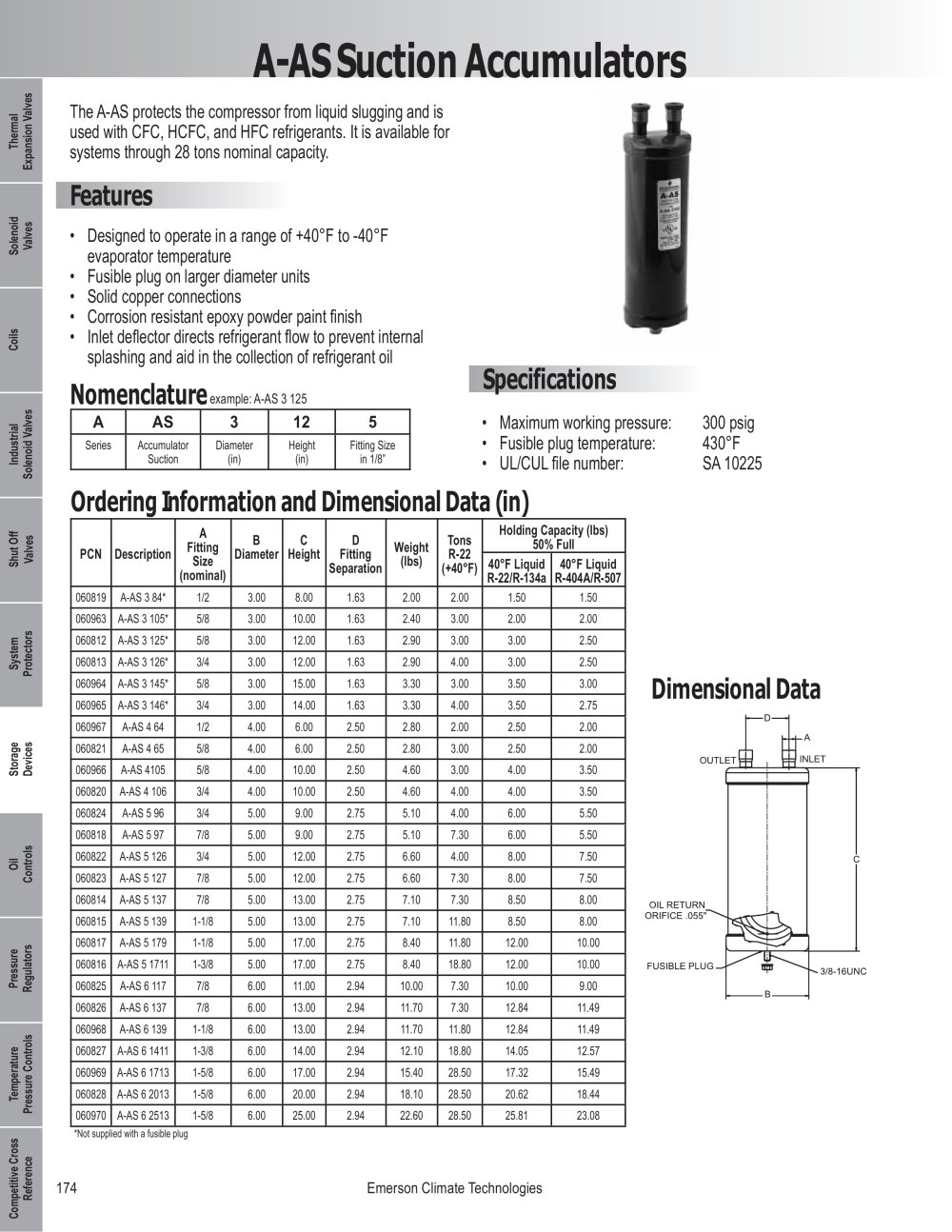

A-AS Suction Accumulators
The A-AS protects the compressor from liquid slugging and is used with CFC, HCFC, and HFC refrigerants. It is available for systems through 28 tons nominal capacity.
Features
• Designed to operate in a range of +40°F to -40°F evaporator temperature
• Fusible plug on larger diameter units
• Solid copper connections
• Corrosion resistant epoxy powder paint fi nish
• Inlet defl ector directs refrigerant flow to prevent internal splashing and aid in the collection of refrigerant oil
co E
CD |—
c o
c
Q_ X LU
"O
"1 g
C/5
in
Specifications
Nomenclature
example: A-AS 3 125
A
AS
3
12
5
Series
Accumulator
Diameter
Height
Fitting Size
Suction
(in)
(in)
in 1/8"
Maximum working pressure: 300 psig Fusible plug temperature: 430°F UL/CUL fi le number: SA 10225
"Si
Ordering Information and Dimensional Data (in)
PCN
Description
A Fitting Size (nominal)
B
Diameter
C
Height
D
Fitting Separation
Weight (lbs)
Tons R-22 (+40°F)
Holding Capacity (lbs) 50% Full
40°F Liquid R-22/R-134a
40°F Liquid R-404A/R-507
060819
A-AS 3 84*
1/2
3.00
8.00
1.63
2.00
2.00
1.50
1.50
060963
A-AS 3 105*
5/8
3.00
10.00
1.63
2.40
3.00
2.00
2.00
060812
A-AS 3 125*
5/8
3.00
12.00
1.63
2.90
3.00
3.00
2.50
060813
A-AS 3 126*
3/4
3.00
12.00
1.63
2.90
4.00
3.00
2.50
060964
A-AS 3 145*
5/8
3.00
15.00
1.63
3.30
3.00
3.50
3.00
060965
A-AS 3 146*
3/4
3.00
14.00
1.63
3.30
4.00
3.50
2.75
060967
A-AS 4 64
1/2
4.00
6.00
2.50
2.80
2.00
2.50
2.00
060821
A-AS 4 65
5/8
4.00
6.00
2.50
2.80
3.00
2.50
2.00
060966
A-AS 4105
5/8
4.00
10.00
2.50
4.60
3.00
4.00
3.50
060820
A-AS 4 106
3/4
4.00
10.00
2.50
4.60
4.00
4.00
3.50
060824
A-AS 5 96
3/4
5.00
9.00
2.75
5.10
4.00
6.00
5.50
060818
A-AS 5 97
7/8
5.00
9.00
2.75
5.10
7.30
6.00
5.50
060822
A-AS 5 126
3/4
5.00
12.00
2.75
6.60
4.00
8.00
7.50
060823
A-AS 5 127
7/8
5.00
12.00
2.75
6.60
7.30
8.00
7.50
060814
A-AS 5 137
7/8
5.00
13.00
2.75
7.10
7.30
8.50
8.00
060815
A-AS 5 139
1-1/8
5.00
13.00
2.75
7.10
11.80
8.50
8.00
060817
A-AS 5 179
1-1/8
5.00
17.00
2.75
8.40
11.80
12.00
10.00
060816
A-AS 5 1711
1-3/8
5.00
17.00
2.75
8.40
18.80
12.00
10.00
060825
A-AS 6 117
7/8
6.00
11.00
2.94
10.00
7.30
10.00
9.00
060826
A-AS 6 137
7/8
6.00
13.00
2.94
11.70
7.30
12.84
11.49
060968
A-AS 6 139
1-1/8
6.00
13.00
2.94
11.70
11.80
12.84
11.49
060827
A-AS 6 1411
1-3/8
6.00
14.00
2.94
12.10
18.80
14.05
12.57
060969
A-AS 6 1713
1-5/8
6.00
17.00
2.94
15.40
28.50
17.32
15.49
060828
A-AS 6 2013
1-5/8
6.00
20.00
2.94
18.10
28.50
20.62
18.44
060970
A-AS 6 2513
1-5/8
6.00
25.00
2.94
22.60
28.50
25.81
23.08
O CD CO
E o co 2
0_
Dimensional Data
A
NLET
OUTLET
1
CO O
O
o
Ö
OIL RETURN ORIFICE .055,;
il
I §>
I ° J I
Q_
s s
ro o
FUSIBLE PLUG
*Not supplied with a fusible plug
