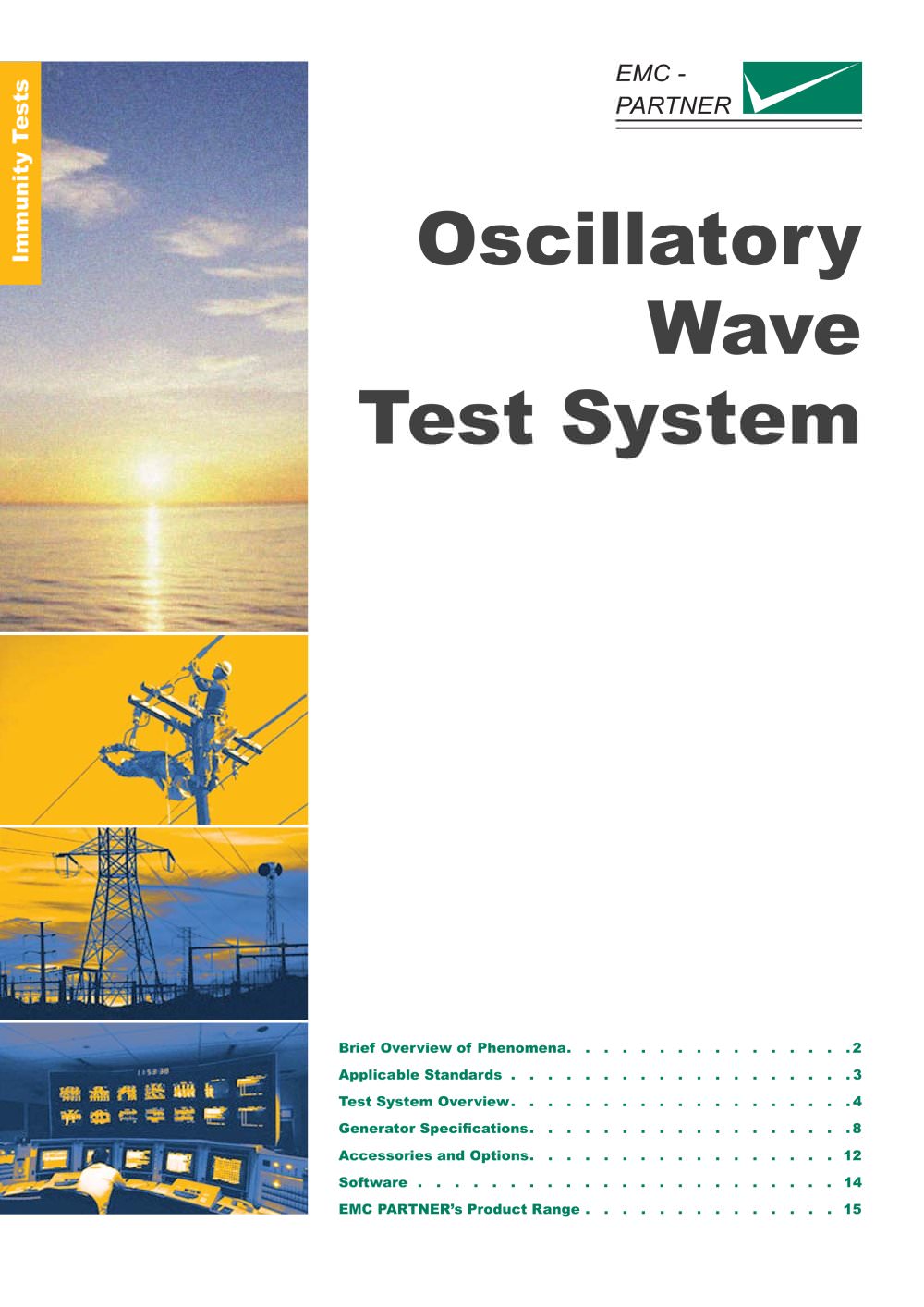

Oscillatory Wave Test System
16Pages

{{requestButtons}}

Catalog excerpts

Oscillatory Wave Test System - 2

Brief Overview of Phenomena Rptitive damped oscillatory waves are phenomena associated with the opening and closing of high voltage (HV) busbars in high voltage (HV) and medium voltage (MV) power transmission stations. The physical environment influences the fundamental oscil驭lation frequency and repetition of the impulses. The most common type of switch used in power distribution is an air insulated type which has been measured as generating damped oscillatory impulses up to 1MHz with a repetition rate up to 400Hz. Damped oscillatory impulses up to 1MHz are termed "Slow Waves". The modern...

Open the catalog to page 2
Oscillatory Wave Test System - 3

Applicable Standards International Electrotechnical Committee (IEC) IEC 61000-4-18 Ed2 (2009): Electromagnetic compatibility (EMC) - Testing and meas-urement techniques - Damped oscillatory wave immunity test. IEC60255-22-1 Ed3 (2007): Measuring relays and protection equipment - Electrical disturbance tests - 1 MHz burst immunity tests. IEC60947-1 Ed5 (2007): Low-voltage switchgear and control gear - General rules. IEC 61000-6-6 Ed1 (2003): Electromagnetic compatibility (EMC) - Generic standards - HEMP immunity for indoor equipment. IEC61000-4-10 Ed1.1 (2001): Electromagnetic compatibility...

Open the catalog to page 3
Oscillatory Wave Test System - 4

Test System Overview Test System Feature - Slow oscillatory waves 100kHz, 1MHz - Pulse repetition up to 400Hz for slow waves - Amplitude up to 3000V - Output impedance 200 ohm - Fast oscillatory waves 3MHz, 10MHz, 30MHz - Pulse repetition 5kHz - Burst duration 1ms to 50s - Burst repetition 20ms to 999s - Amplitude up to 4000V - Output impedance 50 ohm - Automatic coupling path selection - Impulse parameters defined at CDN output - Parameter ramp feature - Electronic polarity change - Semiconductor switches - Compact design - High degree of automation without software - 2 year warranty User...

Open the catalog to page 4
Oscillatory Wave Test System - 5

- MIG-OS-OS1 The "classic" damped oscillatory wave generator for IEC, EN and ANSI applications. The slow waves are available through either balanced differential or grounded outputs. The 100kHz and 1MHz waveforms can be programmed up to 3000V. This generator is ideal for applications requiring only the slow waves. - MIG0603OSI A combination of slow wave generator up to 3000V, combination wave generator up to 6000V/3000A and 1.2/50us voltage impulse up to 6000V with 0.5J energy content. All impulses can be used for IEC, EN and ANSI applications. - MIG-OS-OM A combination of the "classic"...

Open the catalog to page 5
Oscillatory Wave Test System - 7

Damped Oscillatory Wave Magnetic Field ^ematest'mngerI customized solution I 1 MIG-OS-OM MIG-OS-MF MIG0603OMI *_± MF1000-1 MF1000-2 MF1000-3 EUT Slow Damped Oscillatory Waves for Signal and Control Ports jTem⢢tESt manager| : customized solution ; MIG-OS-OS1 MIG0603OSI MIG-OS-OM MIG0603OMI Signal Lines CDN2000-06-25 EUT Immunity Tests: Oscillatory Wave Test System 7

Open the catalog to page 7
Oscillatory Wave Test System - 8

FastDampedOscillatoryWavesforSignal and ControlPorts TEMA TEST MANAGER Ojatccnizci aofcjton I MIO0S-0S1 MIG060X)SI MI&OSOM MIG0603OMI 1 MtG-S-OM-EXT in es CN-EFT1000 EUT Generator Sp۩cifications MIG-OS-OS1 DampedOscillatoryWaves Oscillation frequency ^fatage range Source impdance Voltage incrment Damping rate Pub» rts»Mme Burst rptition at 100kHz Burst r驩ptition at 1MHz Polarity 100kHz & 1MHz 0,2 up to 3kV OOohms IVttept 50% between 3n) and 6th penods 75ns up to 50H z up to 500Hz Positive, n鎩gative, altemating MIG0603OSI DampedOscillatoryWaves Oscillation frequency Voltage range i Source...

Open the catalog to page 8
Oscillatory Wave Test System - 9

CombinationWave1.2 50ps(820ps) Voltage range 0.5 up to 6kV Voltage incrment 1V steps Short circuit current 0.25 up to 3000A Source impdance 2 ohms Energy at 6kV 220J Puise interval 8 seconds at max. voltage Polarity Positive, n驩gative, aiternating Programmable parameter ramps Voltage, synchronisation, polarity ImpulseVoltage1.2/50ps(0-5J) Voltage range 025 up to 6.3kV Source impdance 500ohms Voltage incrment IV steps Energy 0.5J_ _ Puise interval 8 seconds at max. voltage Polarity Positive, n驩gative, aiternating Programmable parameter ramps Voltage, synchronisation, polarity MIG-OS-OM...

Open the catalog to page 9
Oscillatory Wave Test System - 10

MIG0603OMI Damped Oscillatory Waves (DOW) Oscillation frequency 100kHz & 1MHz Voltage range 0.2 up to 3kV Source impedance 200 ohms Voltage increment 1V steps Damping rate 50% between 3rd and 6th periods Pulse rise time 75ns Burst repetition at 100kHz up to 50Hz Burst repetition at 1MHz up to 500Hz Polarity Positive, negative, alternating Damped Oscillatory Waves Magnetic Field with MF1000-1 Oscillation frequency 100kHz Antenna dimension 1m x 1m Current range 1 up to 150A (100A/m) with MF1000-2 (100kHz) Oscillation frequency 100kHz Antenna dimension 1m x 2.6m Current range 1 up to 130A...

Open the catalog to page 10
Oscillatory Wave Test System - 11

CombinationWave1-250us(820us) Voltage range Voltage incrment Sbocl circuit current Source impdance Energy at 6kV Puise interval Potorrty Programmable parameter ramps 0.5 up to6kV IVsteps 025 up to 3000A 2 ohms 220J B seconds atmax. voltage Positive, n驩gative, altemating Voltage, synchronisation, polarity SurgeIEC60255-50.5J 500 Ohm Waveform at no toad No ioad = R > lOOOhm ttm_IJtut_ Urneto hatf value 50ps ftdjustaWe voltage range 500V - 6000V Polarity_p». / neg. / attemate Test Energy voltage 0.5kV 0.5J 1kV 0.5J 3kV 0.5J 5kV 0.5J ImpcdancecapacitorWavcform OC Currcnl Wavetor m SC tA1.2/50ys...

Open the catalog to page 11
Oscillatory Wave Test System - 12

iccessories and Options External Three Phase Couplers Damped oscillatory wave testers can be extended with automatic or manual three-phase coupling networks. The CDN2000-06-25 and CDN3000A-06-25 can also be used for EFT, CWG surge and ring wave. Coupling path selection is either from the MIG firmware, from GENECS and TEMA software or manually on the CDN front panel (manual version only). The coupling networks fulfill the requirements laid down in the IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-12 (ring wave), IEC61000-4-18, ANSI C37.90 and ANSI C62.41 standards. CDN2000-06-25 Manual three...

Open the catalog to page 12
Oscillatory Wave Test System - 13

- MIG-OS-OM-EXT MIG-OS-OM-EXT Extends slow wave generators to include the fast wave impulses 3, 10 and 30MHz. Controlled from the MIG-OS-OS1, MIG0603OSI, MIG-OS-OM or MIG0603OMI ^^^^^ generator front panel. Spcifications fast waves Oscillation frequency 3, 10 & 30MHz Source impedance 50 ohm Voltage range 0.25 up to 4000V Damping rate 50% between 5th and 10th peak Pulse risetime 5ns Burst period 300ms Burst duration 50ms at 3MHz 15ms at 10MHz 5ms at 30MHz Polarity positive, negative VERI01 OSI 0.1 ohm shunt for use with MIG-OS-OM-EXT calibration of current wave in accordance with...
