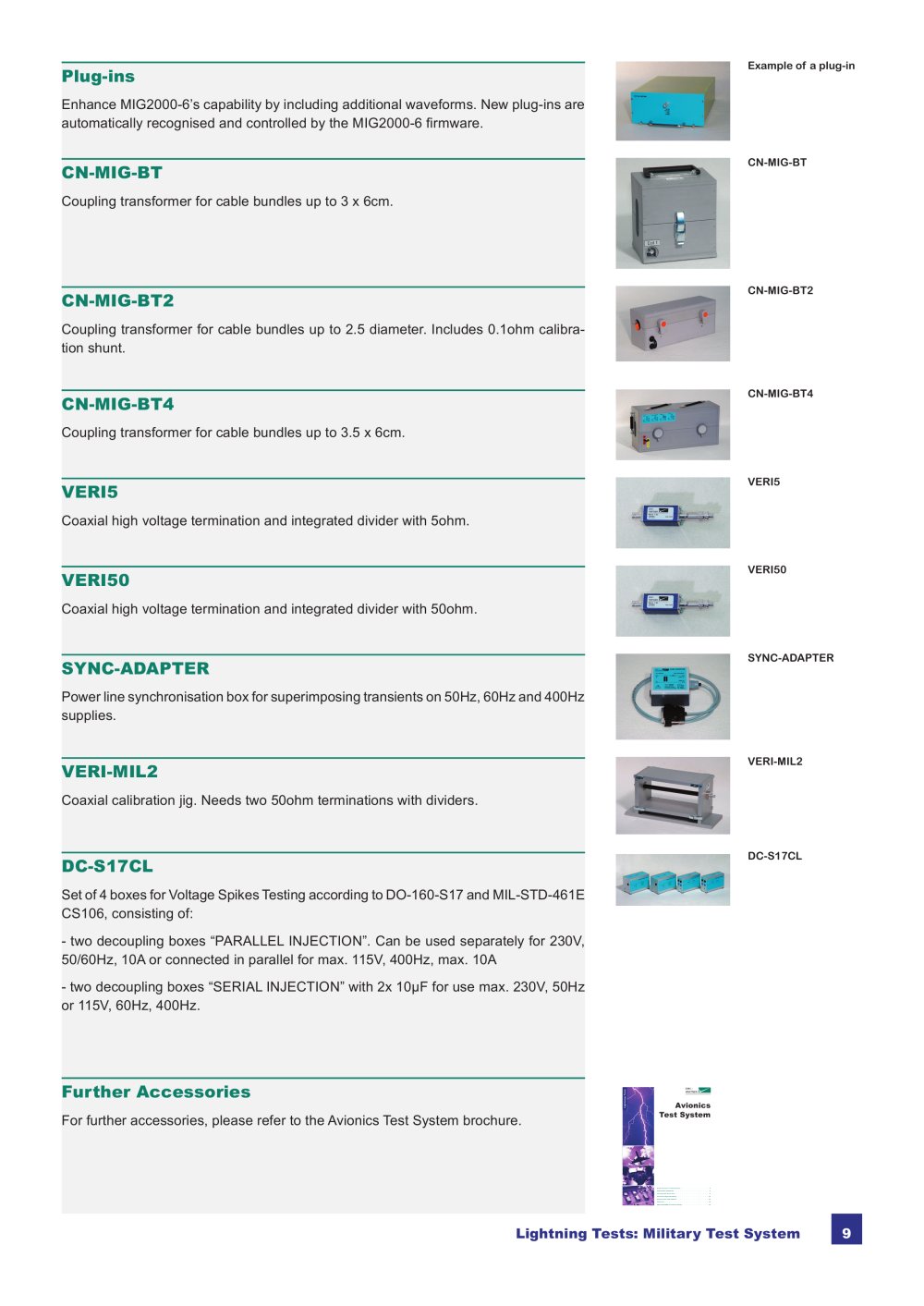

Lightning Tests: Military Test System 9 VERI5 Coaxial high voltage termination and integrated divider with 5ohm. VERI5 Example of a plug-in Plug-ins Enhance MIG2000-6’s capability by including additional waveforms. New plug-ins are automatically recognised and controlled by the MIG2000-6 fi rmware. DC-S17CL Set of 4 boxes for Voltage Spikes Testing according to DO-160-S17 and MIL-STD-461E CS106, consisting of: - two decoupling boxes “PARALLEL INJECTION”. Can be used separately for 230V, 50/60Hz, 10A or connected in parallel for max. 115V, 400Hz, max. 10A - two decoupling boxes “SERIAL INJECTION” with 2x 10ìF for use max. 230V, 50Hz or 115V, 60Hz, 400Hz. DC-S17CL CN-MIG-BT4 Coupling transformer for cable bundles up to 3.5 x 6cm. CN-MIG-BT4 VERI-MIL2 Coaxial calibration jig. Needs two 50ohm terminations with dividers. VERI-MIL2 SYNC-ADAPTER Power line synchronisation box for superimposing transients on 50Hz, 60Hz and 400Hz supplies. SYNC-ADAPTER VERI50 Coaxial high voltage termination and integrated divider with 50ohm. VERI50 CN-MIG-BT2 Coupling transformer for cable bundles up to 2.5 diameter. Includes 0.1ohm calibration shunt. CN-MIG-BT2 CN-MIG-BT Coupling transformer for cable bundles up to 3 x 6cm. CN-MIG-BT Further Accessories For further accessories, please refer to the Avionics Test System brochure. Lightning Tests: Avionics Test System 1 Avionics Test System Lightning Tests Brief Overview of Phenomena. . . . . . . . . . . . . . . . 2 Applicable Standards . . . . . . . . . . . . . . . . . . . 3 Test System Overview. . . . . . . . . . . . . . . . . . . 4 Generator Specifications. . . . . . . . . . . . . . . . . 10 Accessories and Options. . . . . . . . . . . . . . . . . 12 Software . . . . . . . . . . . . . . . . . . . . . . . 18 EMC PARTNER’s Product Range . . . . . . . . . . . . . . 19
