Catalog excerpts

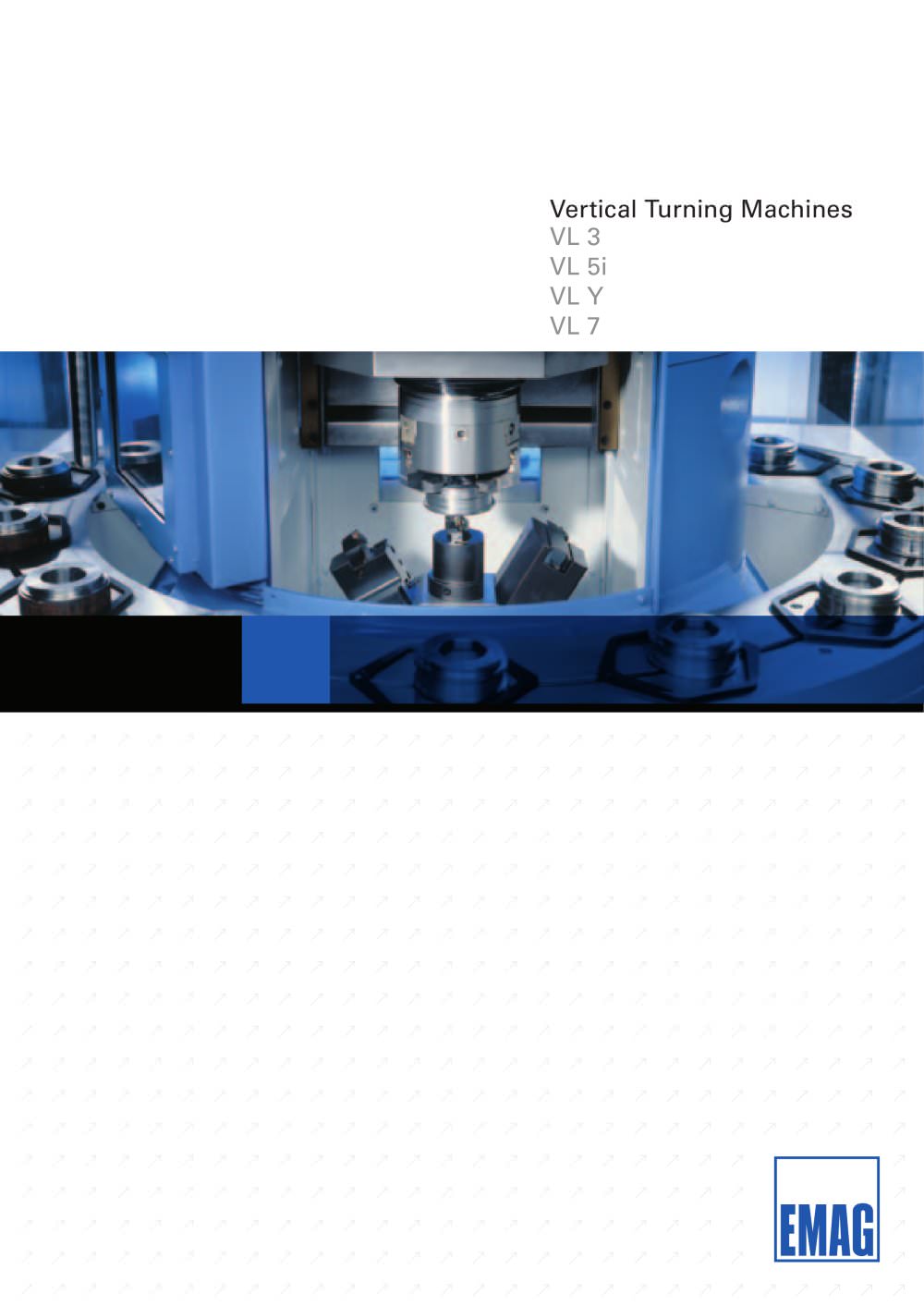

Vertical Turning Machines VL 3 VL 5i VL Y VL 7
Open the catalog to page 1Automation + turning integrated into a single machine and implemented on the smallest possible footprint. The outstanding characteristics of the VL series of machines are high productivity levels, an extremely high degree of constantly maintained precision, outstanding operational safety and ease of operation. VL stands for short travel times and great acceleration. It is ideal for small to medium batches. VL – an altogether economical solution. V V V V 2 L L L L 3 5 i Y 7
Open the catalog to page 2Turning + automation = VL. This system has many advantages: •• Integrated automation, low capital outlay •• Automatic workpiece changeover in the shortest possible time •• Short travel times for loading and machining, resulting in shortest possible cycle times •• High degree of machine availability •• Ideal chip flow conditions •• Very short chip-to-chip times •• Small footprint •• Integrated measuring (optional VL 5i) V V V V L L L L 3 5 i Y 7 Every VL embodies the experience gained from over 8,500 EMAG vertical turning centers in the field. Well-designed components, high standards of...
Open the catalog to page 4Every VL is a manufacturing cell – with workhandling integrated. Every VL is a manufacturing cell where On the VL, the guideways for the slides, loading and unloading of the workpieces the energy supply system, the turret is integrated. A circulating conveyor belt housing and the pick-up station are with carrier prisms, takes the workpieces all kept separate from the machining to the pick-up station behind the area. The vertical construction and the machining area. At the front of the VL absence of telescopic covers guarantee finish-machined components can be ideal chip flow conditions....
Open the catalog to page 6One automation system for different workpieces. The recirculating, prism-type loading A release system on the gimballed frames – the carrier prisms – that take pick-up station prevents damage to the the components to and from the pick-up machine. When a workpiece that has station are of simple design and do not machine‘s emergency stop is activated size, shape and diameter. Even large and the pick-up station tipped out of component families can be machined harm‘s way. As soon as the workpiece is with the same carrier prisms and removed, the pick-up station returns to without the need for...
Open the catalog to page 8h carrier pin carrier prism workpiece locating pin conveyor chain Workpieces on the storage conveyor workpiece dia. “d” in dm in dm ax dm direction automation equipment VL 3 VL 5i VL Y 30 – 85 mm 27 comp. 37 comp. 30 comp. 30 – 130 mm 18 comp. VL 7 20 comp. 30 – 160 mm 22 comp. 32 comp. 120 – 220 mm 16 comp. 24 comp. 120 – 340 mm workpiece height “h” Optional 16 comp. 100 mm 145 mm 175 mm 110 mm 160 mm 145 mm The principle of recirculating automation 9
Open the catalog to page 9Reliable machine modules for great process integrity. Driven by rapid response, frequency The high-precision, preloaded linear controlled, maintenance-free roller guides in X- and Z-axis are the threephase motors, the overhead cornerstone for high-precision turning slide travels free of play and stick-slip. work. They also permit the use of high The encapsulated linear measuring axis speeds and rapid acceleration. systems in X- and Z-axis and the maintenance-free, centrally lubricated guideways of the slide are completely separate from the machining area. V V V V L L L L 3 5 i Y 7 In the...
Open the catalog to page 10The outstanding feature of the rapid VL with Y-axis. response 12-station disc-type turret with electrical indexing drive is its very The VL is also available with Y-axis. This short indexing times. All tool stations allows the machining of very complex accommodate driven tools for drilling geometries. In fact, with the Y-axis and milling work (VDI tool receptors to offcenter drilling and milling can now DIN 69880). be done without the need for expensive special tools. For the drilling operations the workpiece is very quickly moved into position by the C-axis. For contour milling work it is...
Open the catalog to page 11Quality and ease of maintenance. The ergonomic layout of the machines of the VL series is the basis for optimal working conditions. All components needed by the operator are less than 500 mm away, making it easier to operate and maintain the machine. The layout also saves time in repairing and maintaining the machine and offers a clear view as well as easy access to the ball screw, the X-axis drive and all supply systems (hydraulics, coolant, cutting fluid and central lubrication). Once the side panels have been taken off, the overhead slide and its constituent components are also fully...
Open the catalog to page 12A forklift can move the machine, making it easy to „hook-up-and install“ the machine in a new location quickly. All machine elements that influence the precision of the machine are fluidcooled. A heat exchanger keeps the temperature of spindle motor, turret and electrical cabinet in line with the ambient tempera- Spindle motor ture (illustration VL 3). Turret Electrical cabinet 13
Open the catalog to page 13Technical data. Capacity VL 3 VL 5i VL Y VL 7 200 250 200 400 Chuck diameter mm Swing diameter mm 210 270 210 420 Travel in X mm 400 660 570 850 Travel in Y mm – – ± 25 – Travel in Z mm 200 300 200 315 s 2–4 2–4 2–4 4–6 Loading time Depending on workpiece Main spindle Spindle flange to DIN 55 026 Spindle bearing, front Speed, max. Size 5 6 6 11 Ø in mm 80 110 110 160 rpm 7 ,500 4,500 4,500 3,400 Main drive AC-Asynchronous motor Power rating, 40% / 100% duty cycle kW 25 / 16 22 / 18 22 / 18 45 / 35 Torque, 40% / 100% duty cycle Nm 134 / 85 250 / 202 250 / 202 775 / 600 Feed drive Rapid...
Open the catalog to page 14Disc-type turret VL 3 VL 5i VL Y VL 7 Tool receptors Qty 12 12 12 12 mm for cylindrical shanks to DIN 69880 Shank dia. 40 40 40 40 Driven tools: Power rating, max. kW 8.5 8.5 8.5 8.5 Speed, max. rpm 6,000 6,000 6,000 6,000 Torque 40% duty cycle Nm 23 23 23 23 Max. torque Nm 40 40 40 40 Full power at speed of rpm 3,000 3,000 3,000 3,000 s 0.3 0.3 0.3 0.3 Turret indexing time Electrical equipment Operating voltage V 400 400 400 400 Control voltage DC V 24 24 24 24 AC V 230 230 230 230 Hz 50 50 50 50 without driven tools kW 36 / 36 36 / 36 – 55 / 43 with driven tools kW 36 / 36 36 / 36 36 / 36...
