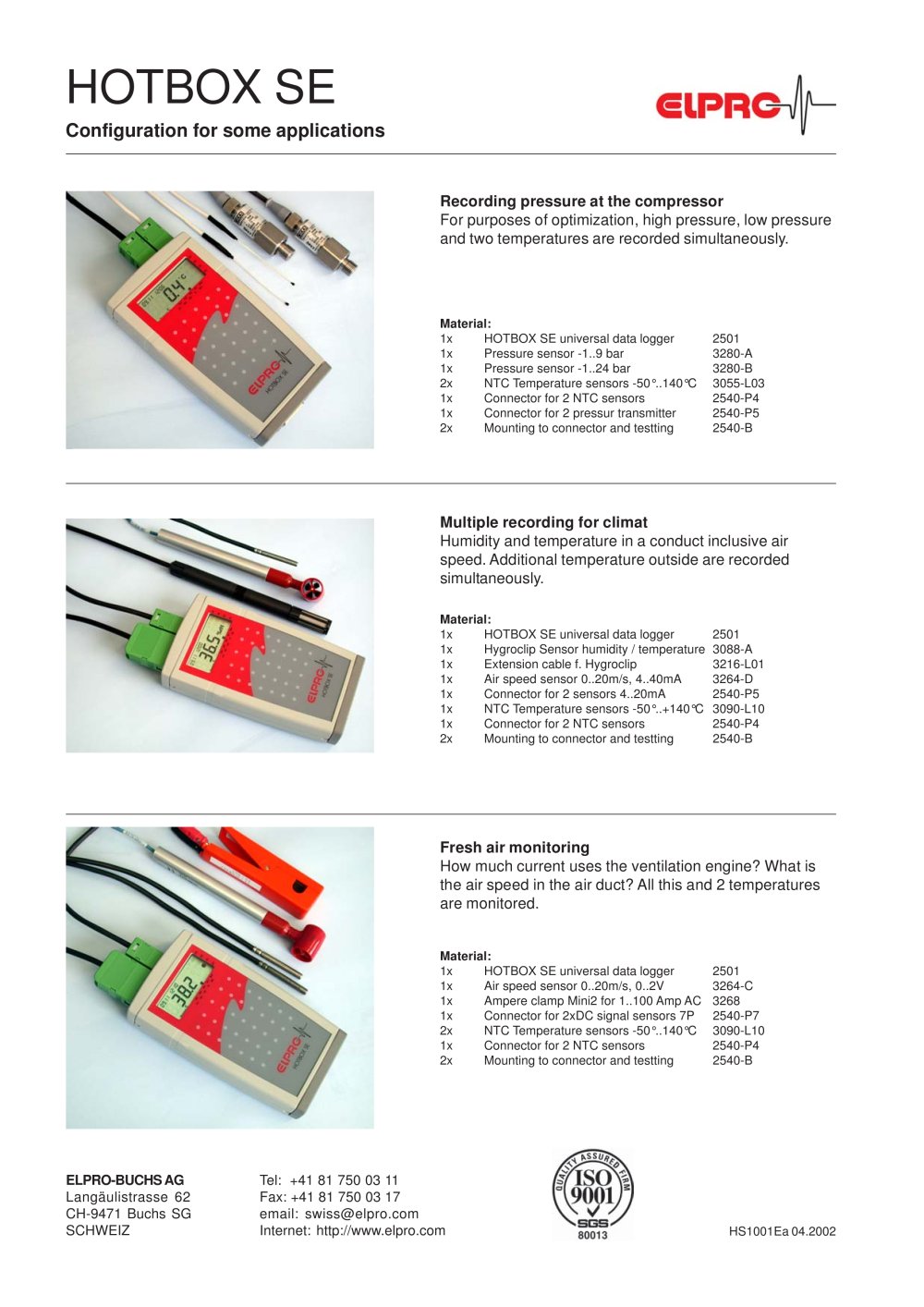

HOTBOX SE _elPRC

Configuration for some applications

Recording pressure at the compressor

For purposes of optimization, high pressure, low pressure and two temperatures are recorded simultaneously.


Material:
1x	HOTBOX SE universal data logger	2501
1x	Pressure sensor -1..9 bar	3280-A
1x	Pressure sensor -1..24 bar	3280-B
2x	NTC Temperature sensors -50°..140°C	3055-L03
1x	Connector for 2 NTC sensors	2540-P4
1x	Connector for 2 pressur transmitter	2540-P5
2x	Mounting to connector and testting	2540-B

Multiple recording for climat

Humidity and temperature in a conduct inclusive air speed. Additional temperature outside are recorded simultaneously.


Material:
1x	HOTBOX SE universal data logger	2501
1x	Hygroclip Sensor humidity / temperature	3088-A
1x	Extension cable f. Hygroclip	3216-L01
1x	Air speed sensor 0..20m/s, 4..40mA	3264-D
1x	Connector for 2 sensors 4..20mA	2540-P5
1x	NTC Temperature sensors -50°..+140°C	3090-L10
1x	Connector for 2 NTC sensors	2540-P4
2x	Mounting to connector and testting	2540-B

Fresh air monitoring

How much current uses the ventilation engine? What is the air speed in the air duct? All this and 2 temperatures are monitored.


Material:
1x	HOTBOX SE universal data logger	2501
1x	Air speed sensor 0..20m/s, 0..2V	3264-C
1x	Ampere clamp Mini2 for 1..100 Amp AC	3268
1x	Connector for 2xDC signal sensors 7P	2540-P7
2x	NTC Temperature sensors -50°..140°C	3090-L10
1x	Connector for 2 NTC sensors	2540-P4
2x	Mounting to connector and testting	2540-B
