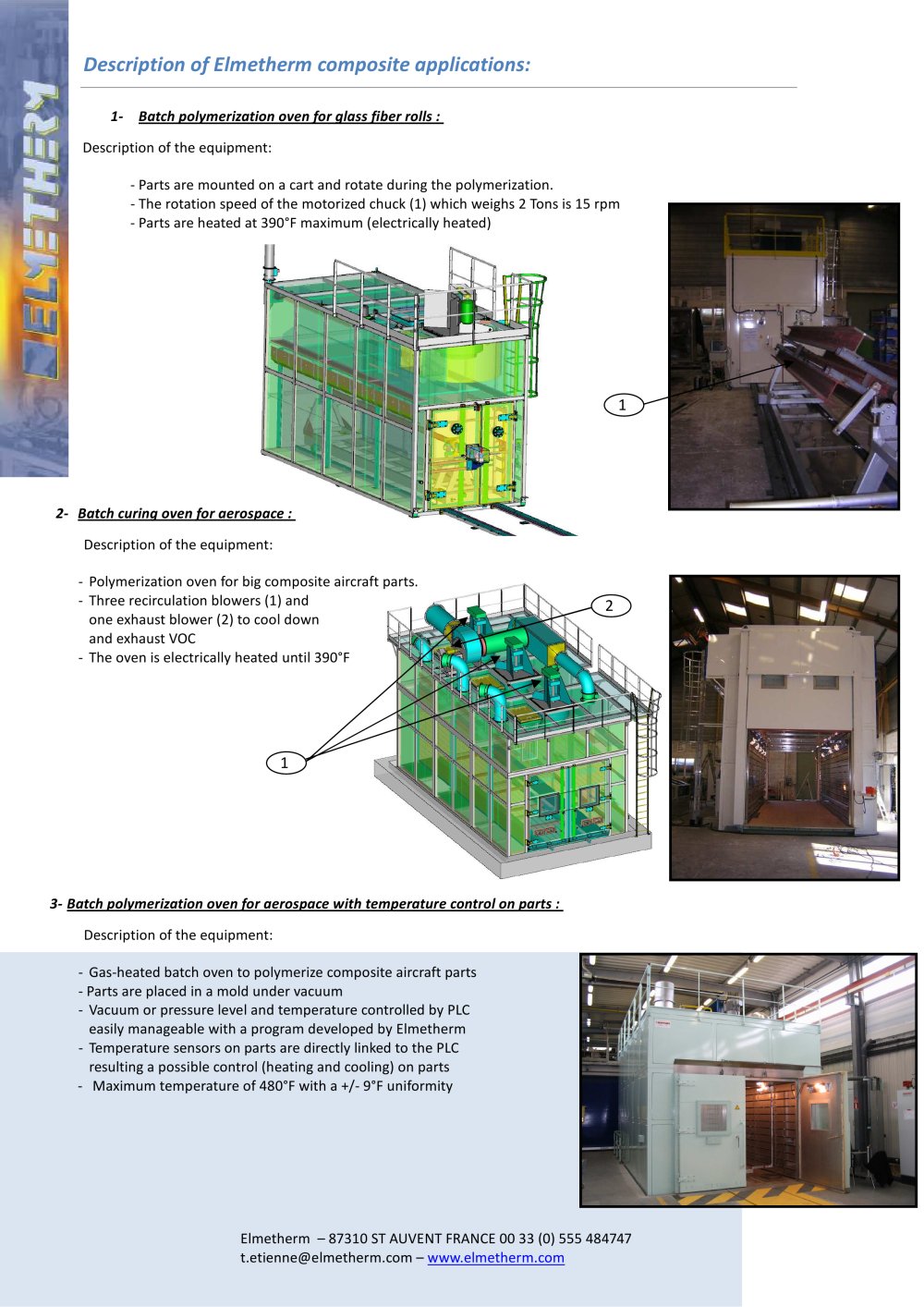

| Description of Elmetherm composite applications: | ||
| | ||
| 1- Batch polymerization oven for glass fiber rolls : Description of the equipment: | ||
| | ||
| Parts are mounted on a cart and rotate during the polymerization. The rotation speed of the motorized chuck (1) which weighs 2 Tons is 15 rpm Parts are heated at 390°F maximum (electrically heated) | ||
| | ||
| Description of the equipment: | ||
| | ||
| 3- Batch polymerization oven for aerospace with temperature control on parts : Description of the equipment: | ||
| | ||
| - Gas-heated batch oven to polymerize composite aircraft parts - Parts are placed in a mold under vacuum - Vacuum or pressure level and temperature controlled by PIC easily manageable with a program developed by Elmetherm - Temperature sensors on parts are directly linked to the PIC resulting a possible control (heating and cooling) on parts - Maximum temperature of 480°F with a +/- 9°F uniformity | ||
| | ||
| Elmetherm - 87310 ST AUVENT PRANCE 00 33 (0) 555 484-74-7 t.etienne@elmetherm.com - www.elmetherm.com | ||
| | ||
