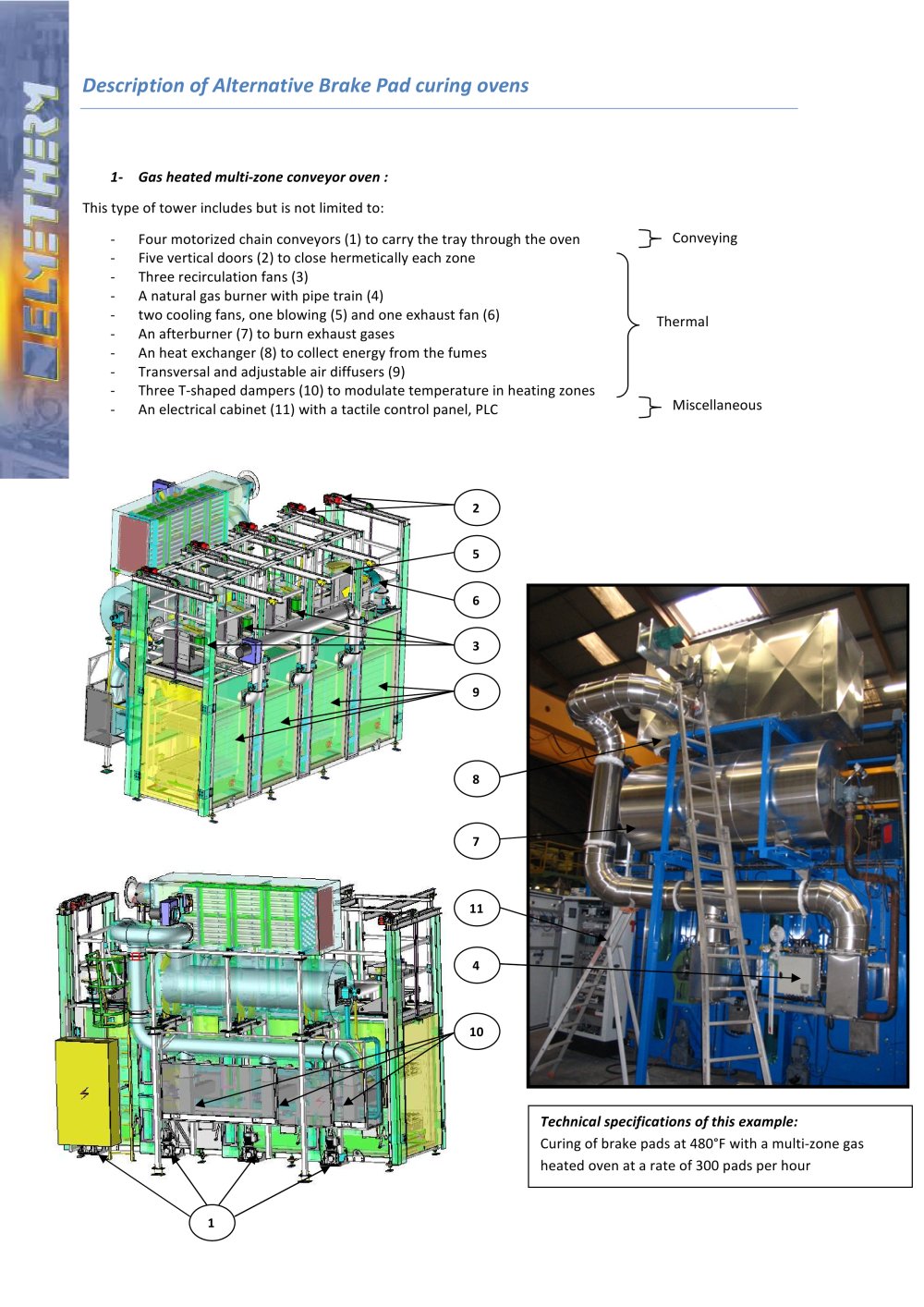

| Description of Alternative Brake Pad curing ovens | ||||
| | ||||
| 1- Gas heated multi-zone conveyor oven : | ||||
| | ||||
| This type of tower includes but is not limited to: - Four motorized chain conveyors (1) to carry the tray through the oven 3~ Conveying - Five vertical doors (2) to close hermetically each zone - Three recirculation fans (3) -A natural gas burner with pipe train (4) | ||||
| | ||||
| -two cooling fans, one blowing (5) and one exhaust fan (6) | Thermal | |||
| | ||||
| -An afterburner (7) to burn exhaust gases -An heat exchanger (8) to collect energy from the fumes - Transversal and adjustable air diffusers (9) - Three T-shaped dampers (10) to modulate temperature in heating zones J -An electrical cabinet (11) with a tactile control panel, PLC 3~ | Miscellaneous | |||
| | ||||
| Technical specifications of this example: Curing of brake pads at 480°F with a multi-zone gas heated oven at a rate of 300 pads per hour | ||||
| | ||||
