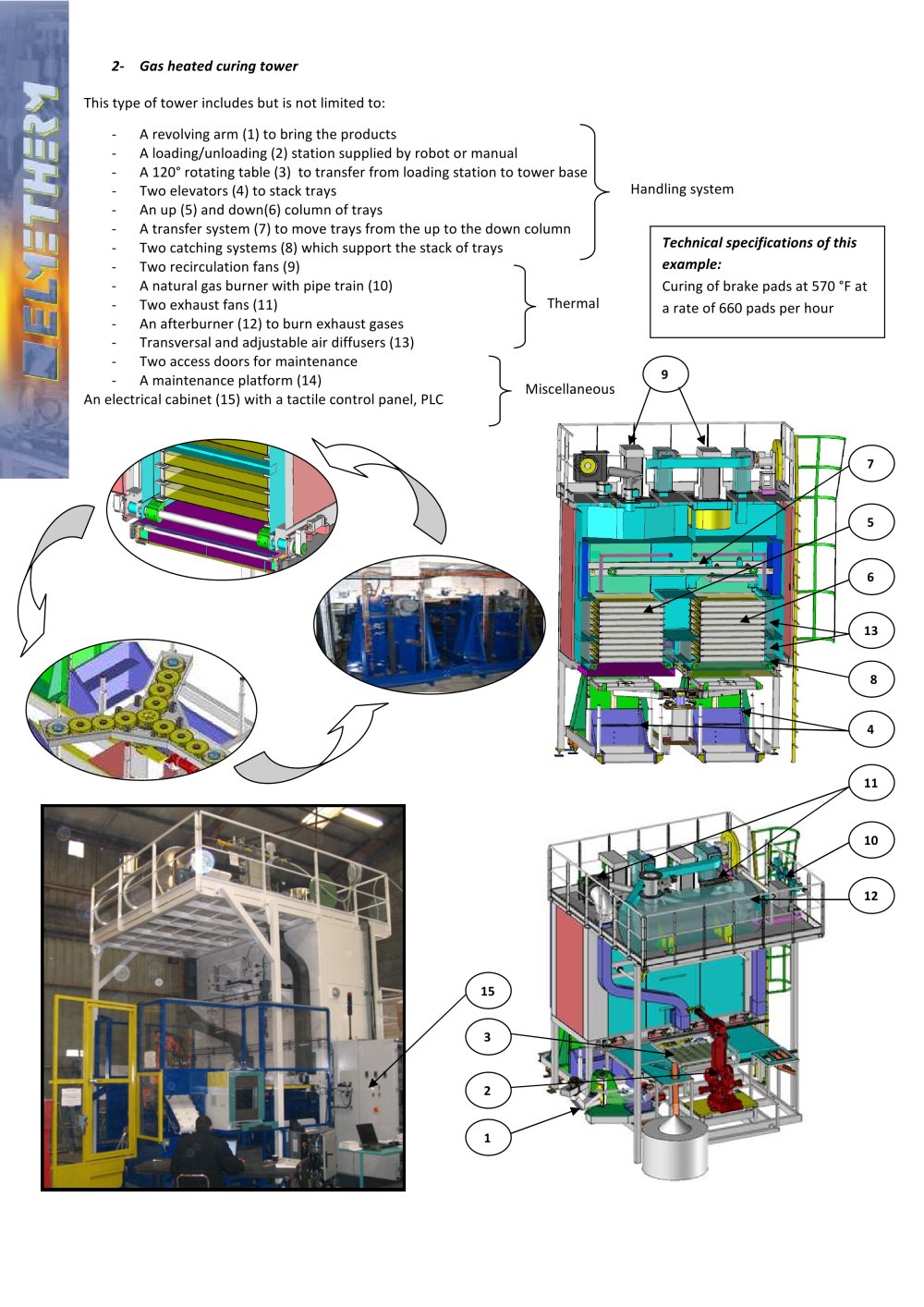

| 2- Gas heated curing tower | ||||
| | ||||
| This type of tower includes but is not limited to: | ||||
| | ||||
| A revolving arm (1) to bring the products A loading/unloading (2) station supplied by robot or manual A 120° rotating table (3) to transfer from loading station to tower base | ||||
| | ||||
| Two elevators (4) to stack trays | S- Handling system | |||
| | ||||
| An up (5) and down(6) column of trays A transfer system (7) to move trays from the up to the down column Two catching systems (8) which support the stack of trays Two recirculation fans (9) A natural gas burner with pipe train (10) Two exhaust fans (11) \- Thermal An afterburner (12) to burn exhaust gases Transversal and adjustable air diffusers (13) Two access doors for maintenance -A maintenance platform (14) An electrical cabinet (15) with a tactile control panel, PLC | 7echn/ca/ speci/fcatfbns o/ th/s examp/e: Curing of brake pads at 570 °F at a rate of 660 pads per hour | |||
| | ||||
