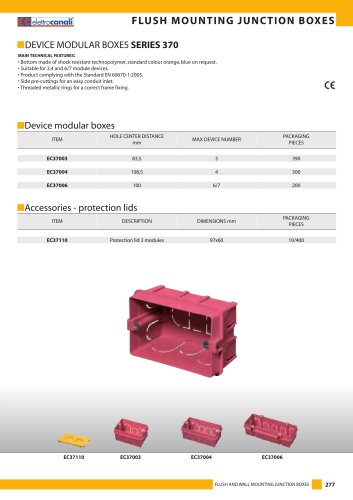

FLUSH MOUNTING JUNCTION BOXES - 10 / 16 Pages

í^»j elettrocanali'

FLUSH MOUNTING JUNCTION BOXES

■DEVICE MODULAR BOXES SERIES 370

MAIN TECHNICAL FEATURES!

• Bottom made of shock resistant technopolymer, standard colour orange, blue on request.

• Suitable for 3,4 and 6/7 module devices.

• Product complying with the Standard EN 60670-1:2005.

• Side pre-cuttings for an easy conduit inlet.

•Threaded metallic rings for a correct frame fixing.

Device modular boxes

ITEM

HOLE CENTER DISTANCE

mm

MAX DEVICE NUMBER

PACKAGING

PIECES

EC37003

EC37004

EC37006

83,5

108,5

100

3

4

6/7

390

300

200

Accessories - protection lids

ITEM

DESCRIPTION

DIMENSIONS mm

PACKAGING

PIECES

EC37110

Protection lid 3 modules

97x60

10/400

EC37110

EC37003

EC37004

EC37006

FLUSH AND WALL MOUNTING JUNCTION BOXES I I 277
