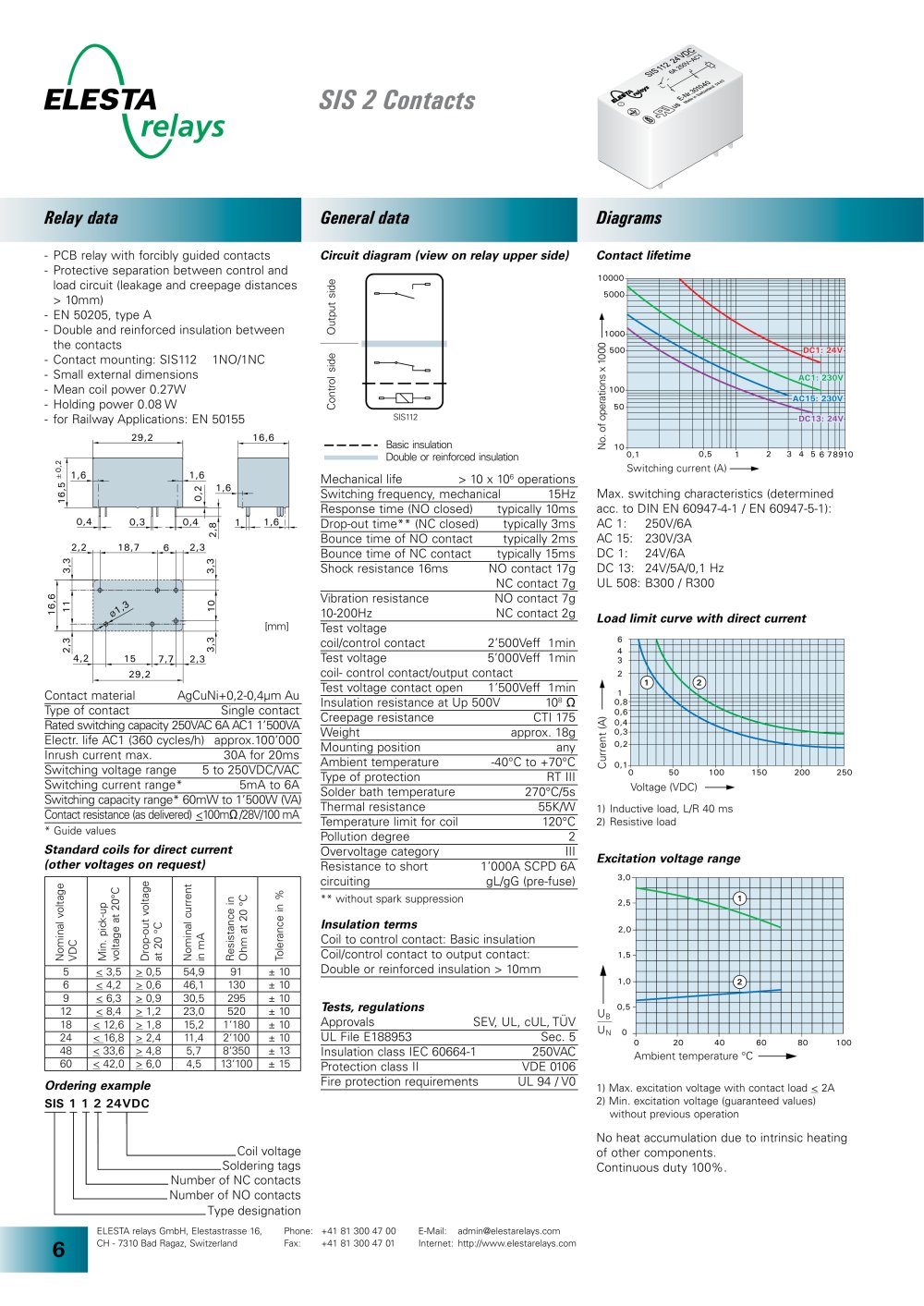

ELESTA relays - 208296, 5179, 208315
/ 36
See other catalogues for ELESTA relays
Text version of the page
SIS 2 Contacts
^re/ays
Relay data
General data
Diagrams
Pcb relay with forcibly guided contacts Protective separation between control and load circuit (leakage and creepage distances > 10mm) EN 50205, type A
Double and reinforced insulation between the contacts
Contact mounting: SIS112 1NO/1NC
Small external dimensions
Mean coil power 0.27W
Holding power 0.08 W
for Railway Applications: EN 50155
Circuit diagram (view on relay upper side) Contact lifetime
10000
ut
tp ut
O
1000
o o o
500
x
■B 1
CD
Q_
O
CO
o
c
o u
50
SIS112
29,2
16,6
Basic insulation
Double or reinforced insulation
1,6 .
.1,6
!.. - .....L
<N I 1,6
-3 1
i„ ..
0,1 0,5
Switching current (A)
3 4 5 6 78910
> 10 x 106 operations
Mechanical life
Switching frequency, mechanical 15Hz
Response time (NO closed)
typically 10ms
Drop-out time** (NC closed)
typically 3ms
Bounce time of NO contact
typically 2ms
Bounce time of NC contact
typically 15ms
Shock resistance 16ms
NO contact 17g
NC contact 7g
Vibration resistance
NO contact 7g
10-200Hz
NC contact 2g
Test voltage
coil/control contact
2'500Veff 1min
Test voltage
5'000Veff 1min
coil- control contact/output contact
Test voltage contact open
1'500Veff 1min
Insulation resistance at Up 500V 108 Q
Creepage resistance
CTI 175
Weight
approx. 18g
Mounting position
any
Ambient temperature
-40°C to +70°C
Type of protection
RT III
Solder bath temperature
270°C/5s
Thermal resistance
55K/W
Temperature limit for coil
120°C
Pollution degree
2
Overvoltage category
III
Resistance to short
1'000A SCPD 6A
circuiting
gL/gG (pre-fuse)
** without spark suppression
Insulation terms
Coil to control contact: Basic insulation
Coil/control contact to output contact:
Double or reinforced insulation > 10mm
Tests, regulations
Approvals SEV, UL, cUL, TUV
UL File E188953
Sec. 5
Insulation class IEC 60664-1
250VAC
Protection class II
VDE 0106
Fire protection requirements
UL 94 / V0
Max. switching characteristics (determined acc. to DIN EN 60947-4-1 / EN 60947-5-1):
AC 1: 250V/6A AC 15: 230V/3A DC 1: 24V/6A
DC 13: 24V/5A/0,1 Hz
UL 508: B300 / R300
Load limit curve with direct current
1,6j[].
0,4 I 0,3
0,4
co
2,
001
j !
, j
--4
___^
o
if--------i
4,2_
15
.7,7
-
00
,2,3
29,2
[mm]
6
4
3
2
t 1
0,8
_ 0,6"
< 0,4-
^ 0,3-
§5 0,2-
1
5
:-:
:-:
:-:
:-:
:-:
:-:
\
>>=:
EEE
EEE
EEE
EEE
EEE
EEE
---
:=:
___
Contact material Type of contact
AgCuNi+0,2-0,4um Au _Single contact
Rated switching capacity 250VAC 6A AC1 1'500VA Electr. life AC1 (360 cycles/h) approx.100'000 Inrush current max. 30A for 20ms
Switching voltage range Switching current range*
5 to 250VDC/VAC 5mA to 6A
0 50
Voltage (VDC)
100
150
200
250
Switching capacity range* 60mW to 1'500W (VA) Contact resistance (as delivered) <100mQ /28V/100 mA * Guide values
Standard coils for direct current (other voltages on request)
1) Inductive load, L/R 40 ms
2) Resistive load
Excitation voltage range
3,0
Nominal voltage VDC
Min. pick-up voltage at 20°C
Drop-out voltage at 20 °C
Nominal current in mA
Resistance in Ohm at 20 °C
Tolerance in %
5
< 3,5
> 0,5
54,9
91
± 10
6
< 4,2
> 0,6
46,1
130
± 10
9
< 6,3
> 0,9
30,5
295
± 10
12
< 8,4
> 1,2
23,0
520
± 10
18
< 12,6
> 1,8
15,2
1'180
± 10
24
<_16,8
> 2,4
11,4
2'100
± 10
48
< 33,6
> 4,8
5,7
8'350
± 13
60
< 42,0
> 6,0
4,5
13'100
± 15
2,5 2,0 1,5 1,0
Ub 0,5
un 0
{2}
0 20 40 60 Ambient temperature °C —
80
100
Ordering example SIS 1 1 2 24VDC
1) Max. excitation voltage with contact load < 2A
2) Min. excitation voltage (guaranteed values) without previous operation
No heat accumulation due to intrinsic heating of other components. Continuous duty 100%.
_Coil voltage
Soldering tags Number of NC contacts Number of NO contacts
_Type designation
ELESTA relays GmbH, Elestastrasse 16, CH - 7310 Bad Ragaz, Switzerland
Phone: Fax:
+41 81 300 47 00 +41 81 300 47 01
E-Mail: admin@elestarelays.com Internet: http://www.elestarelays.com
