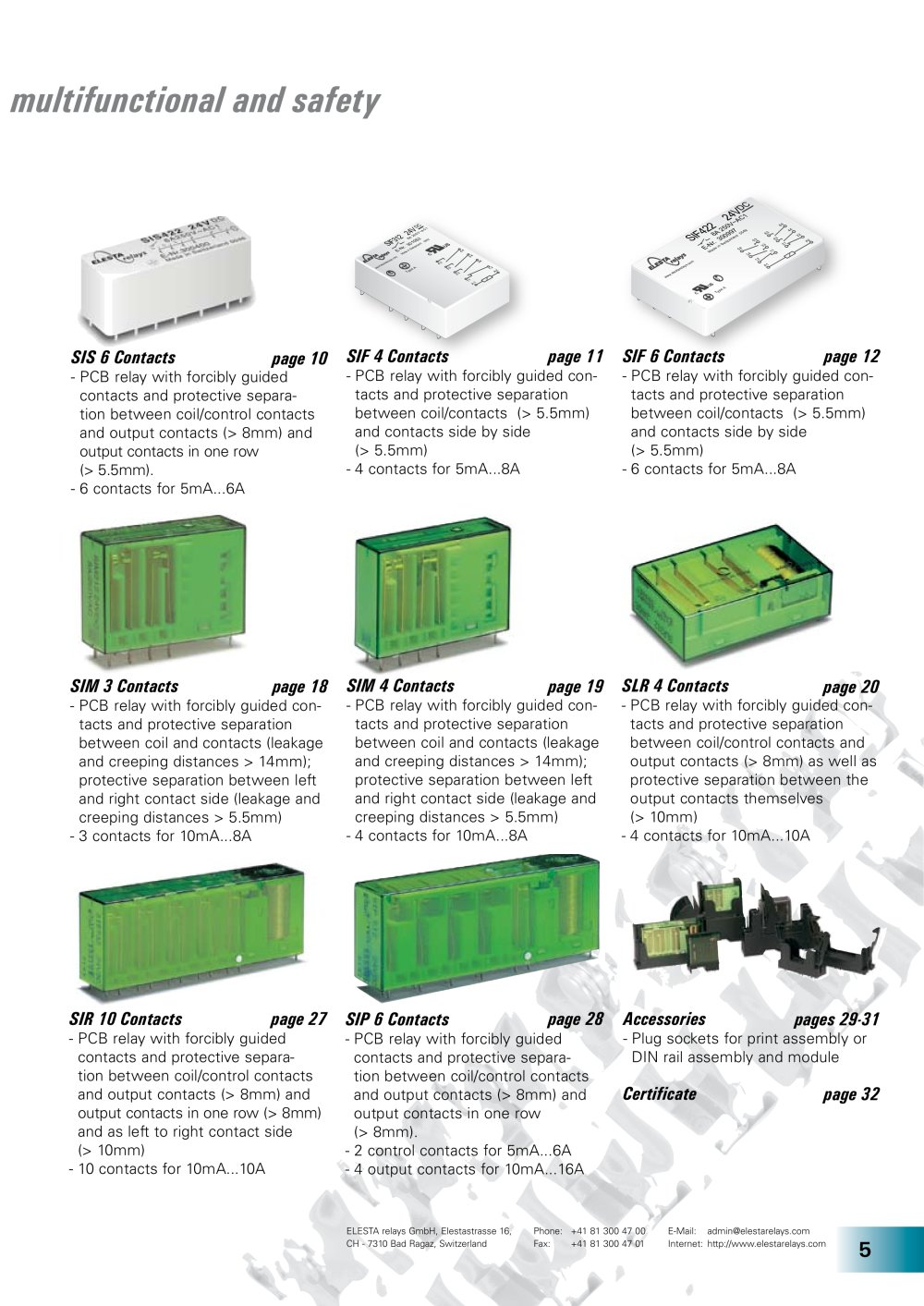

| | | SIF 4 Contacts page 11 - Pcb relay with forcibly guided contacts and protective separation between coil/contacts (> 5.5mm) and contacts side by side (> 5.5mm) - 4 contacts for 5mA...8A | | SIF 6 Contacts page 12 - PCB relay with forcibly guided contacts and protective separation between coil/contacts (> 5.5mm) and contacts side by side (> 5.5mm) - 6 contacts for 5mA...8A | | |
| | | SIM 3 Contacts page 18 - PCB relay with forcibly guided contacts and protective separation between coil and contacts (leakage and creeping distances > 14mm); protective separation between left and right contact side (leakage and creeping distances > 5.5mm) - 3 contacts for 10mA...8A | | SIM 4 Contacts page 19 - PCB relay with forcibly guided contacts and protective separation between coil and contacts (leakage and creeping distances > 14mm); protective separation between left and right contact side (leakage and creeping distances > 5.5mm) - 4 contacts for 10mA...8A | | SLR 4 Contacts page 20 - PCB relay with forcibly guided contacts and protective separation between coil/control contacts and output contacts (> 8mm) as well as protective separation between the output contacts themselves (> 10mm) fi ||L - 4 contacts for 10mA...10A | | |
| | | ■ PCB relay with forcibly guided contacts and protective separation between coil/control contacts and output contacts (> 8mm) and output contacts in one row (> 8mm) and as left to right contact side (> 10mm) ■ 10 contacts for 10mA...10A | | PCB relay with forcibly guided contacts and protective separation between coil/control contacts and output contacts (> 8mm) and output contacts in one row (> 8mm). 2 control contacts for 5mA...6A 4 output contacts for 10mA...16A | | Plug sockets for print assembly or DIN rail assembly and module | | |
| | | ELESTA relays GmbH, Elestastrasse 16, Phone: +41 81 300 47 00 E-Mail: admin@elestarelays.com CH - 7310 Bad Ragaz, Switzerland Fax: +41 81 300 47 01 Internet: http://www.elestarelays.com | | |
