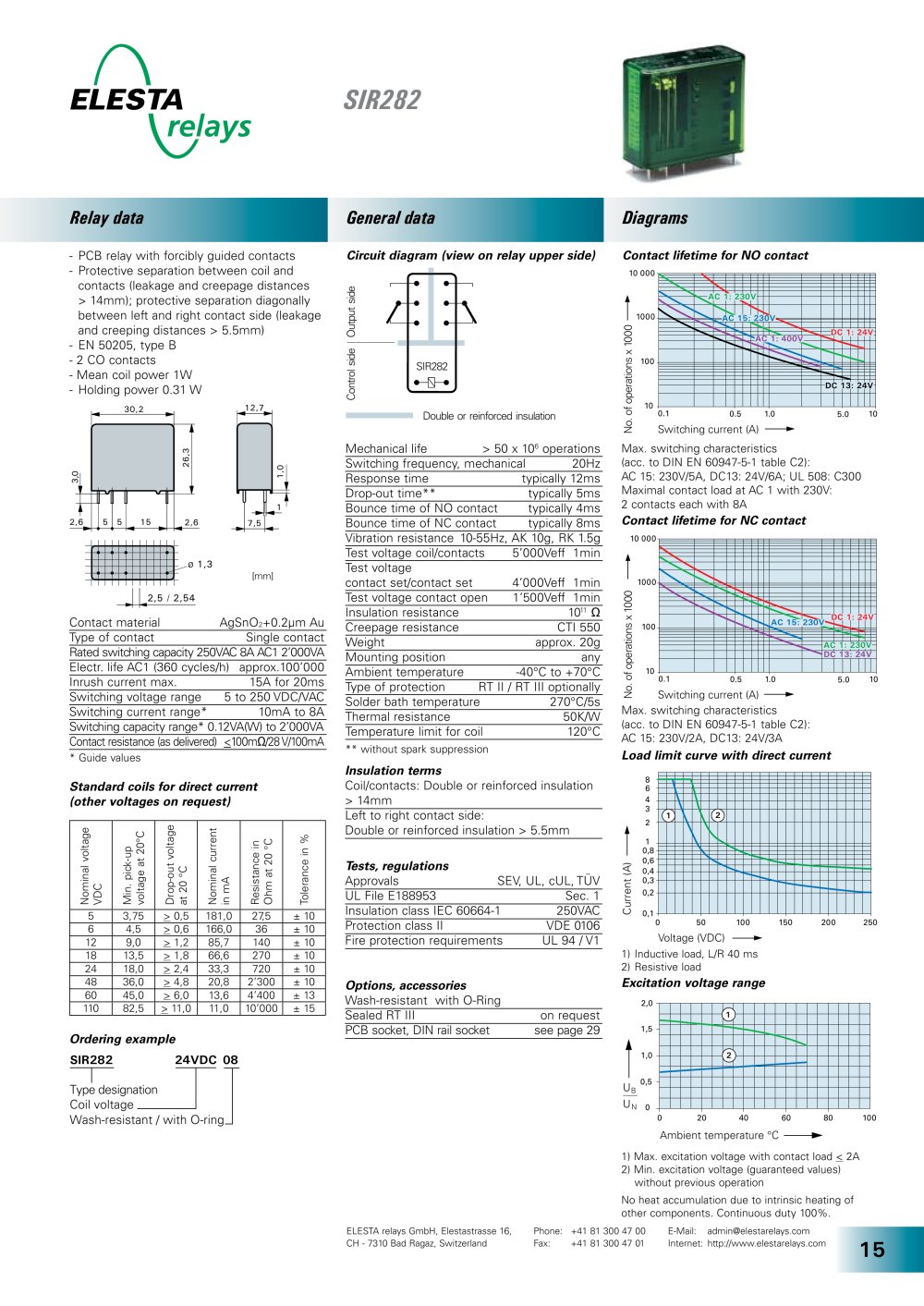

SIR282

\relays

Relay data

General data

Diagrams

Circuit diagram (view on relay upper side)

Contact lifetime for NO contact

10 000-,

■ Pcb relay with forcibly guided contacts

■ Protective separation between coil and contacts (leakage and creepage distances > 14mm); protective separation diagonally between left and right contact side (leakage and creeping distances > 5.5mm)

■ EN 50205, type B

■ 2 CO contacts

■ Mean coil power 1W

■ Holding power 0.31 W

1000

o o o

cd d.

100

.12,7.

30,2

0.1 0.5

Switching current (A)

1.0

5.0 10

Double or reinforced insulation

> 50 x 10⁶ operations

Max. switching characteristics

(acc. to DIN EN 60947-5-1 table C2):

AC 15: 230V/5A, DC13: 24V/6A; UL 508: C300

Maximal contact load at AC 1 with 230V:

2 contacts each with 8A

Contact lifetime for NC contact

Mechanical life


	Switching frequency, mechanical 20Hz
	Response time	typically 12ms
	Drop-out time**	typically 5ms
	Bounce time of NO contact	typically 4ms
	Bounce time of NC contact	typically 8ms
	Vibration resistance 10-55Hz, AK 10g, RK 1.5g
	Test voltage coil/contacts	5'000Veff 1min
	Test voltage
	contact set/contact set	4'000Veff 1min
	Test voltage contact open	1'500Veff 1min
	Insulation resistance	10¹¹ n
	Creepage resistance	CTI 550
	Weight	approx. 20g
	Mounting position	any
	Ambient temperature	-40°C to +70°C
	Type of protection RT II / RT III optionally
	Solder bath temperature	270°C/5s
	Thermal resistance	50K/W
	Temperature limit for coil	120°C
	** without spark suppression
	*Insulation terms*
	Coil/contacts: Double or reinforced insulation
	> 14mm
	Left to right contact side:
	Double or reinforced insulation > 5.5mm
	*Tests, regulations*
	Approvals SEV, UL, cUL, TUV
	UL File E188953	Sec. 1
	Insulation class IEC 60664-1	250VAC
	Protection class II	VDE 0106
	Fire protection requirements	UL 94 / V1
	*Options, accessories*
	Wash-resistant with O-Ring
	Sealed RT III	on request
	PCB socket, DIN rail socket	see page 29

_,0

7,5

10 000

eee^^

—

^^^m^e

AC 15:

230

DC 1:

—

AC 1:

23ÜV

■

DC 13

24V

iii

0 1,3

[mm]

1000

o o o

s n _io

_ra^t_er

p o

o^f

Contact material

AgSnO2+0.2um Au

100

Single contact

Type of contact

Rated switching capacity 250VAC 8A AC1 2'000VA Electr. life AC1 (360 cycles/h) approx.100'000 Inrush current max. 15A for 20ms

0.1 0.5

Switching current (A)

1.0

5.0

Switching voltage range Switching current range*

5 to 250 VDC/VAC 10mA to 8A

Max. switching characteristics (acc. to DIN EN 60947-5-1 table C2): AC 15: 230V/2A, DC13: 24V/3A Load limit curve with direct current

Switching capacity range* 0.12VA(W) to 2'000VA Contact resistance (as delivered) <100mQ/28 V/100mA * Guide values

Standard coils for direct current (other voltages on request)


Nominal voltage VDC	Min. pick-up voltage at 20°C	Drop-out voltage at 20 °C	Nominal current in mA	Resistance in Ohm at 20 °C	Tolerance in %
5	3,75	> 0,5	181,0	27,5	± 10
6	4,5	> 0,6	166,0	36	± 10
12	9,0	> 1,2	85,7	140	± 10
18	13,5	> 1,8	66,6	270	± 10
24	18,0	> 2,4	33,3	720	± 10
48	36,0	> 4,8	20,8	2'300	± 10
60	45,0	> 6,0	13,6	4'400	± 13
110	82,5	> 11,0	11,0	10'000	± 15

₍A⁾

c cd

0 1

100

150

200

250

Voltage (VDC) -»►

1) Inductive load, L/R 40 ms

2) Resistive load Excitation voltage range

2,0

Ordering example

sir282 24vdc 08

1,0

Type designation Coil voltage

^un 0

Wash-resistant / wit h O-ring.

100

Ambient temperature °C ■

1) Max. excitation voltage with contact load < 2A

2) Min. excitation voltage (guaranteed values) without previous operation

No heat accumulation due to intrinsic heating of other components. Continuous duty 100%.
