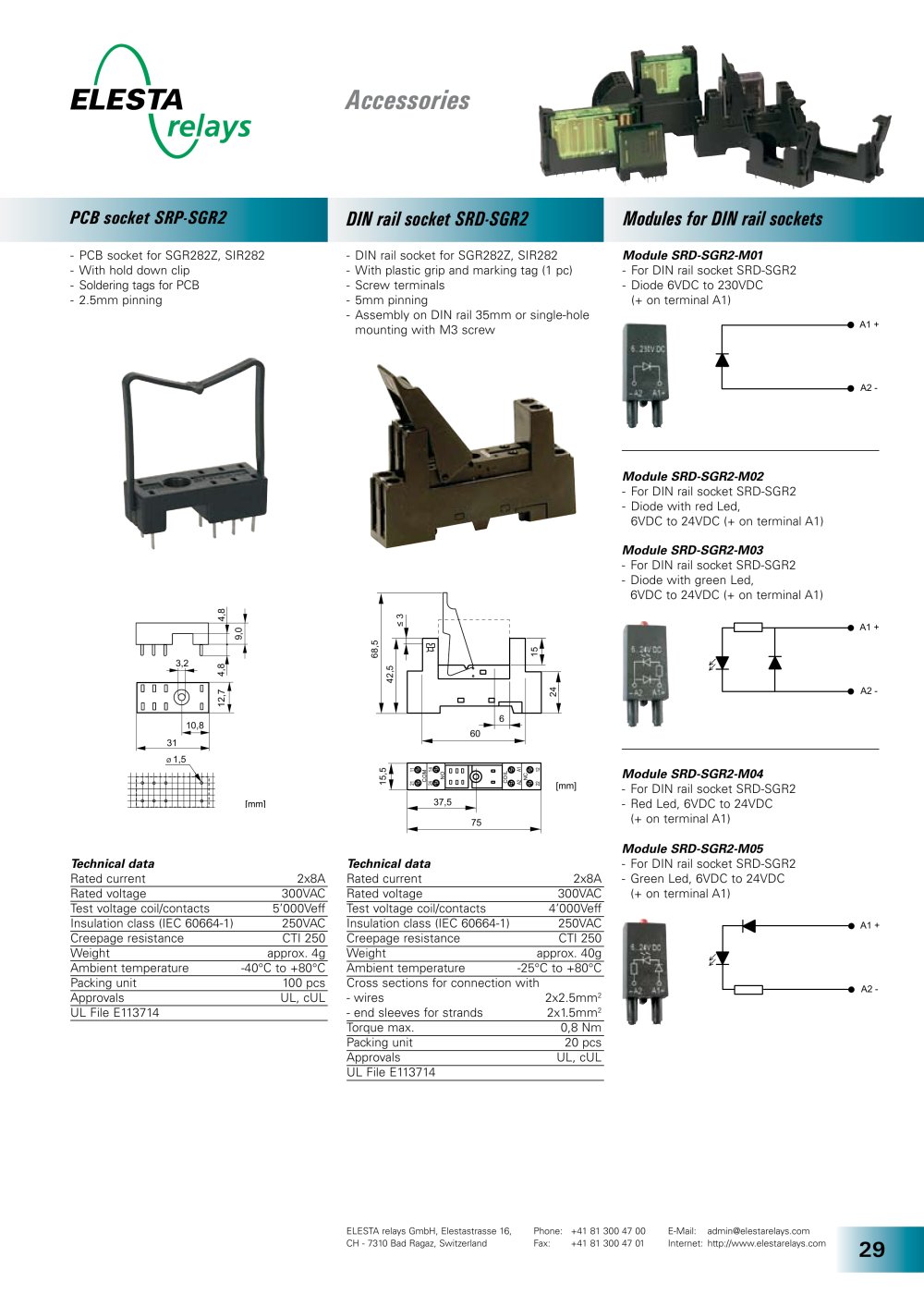

Accessories

PCB socket SRP-SGR2

DIN rail socket SRD-SGR2 Modules for DIN rail sockets

- DIN rail socket for SGR282Z, SIR282- With plastic grip and marking tag (1 pc)- Screw terminals - 5mm pinning - Assembly on DIN rail 35mm or single-hole mounting with M3 screw Module SRD-SGR2-M01 - For DIN rail socket SRD-SGR2 - Diode 6VDC to 230VDC (+ on terminal A1)
A1 +A2 - Module SRD-SGR2-M02 - For DIN rail socket SRD-SGR2 - Diode with red Led, 6VDC to 24VDC (+ on terminal A1) Module SRD-SGR2-M03 - For DIN rail socket SRD-SGR2 - Diode with green Led, 6VDC to 24VDC (+ on terminal A1)
4,89,04,812,7 A1 +A2 - 1524 68,542,5≤ 3 Module SRD-SGR2-M04
606 - For DIN rail socket SRD-SGR2 - Red Led, 6VDC to 24VDC (+ on terminal A1)
3110,8 Ø 1,5 3,2 Module SRD-SGR2-M05
COMNO COILNC A2A12212 15,5 21112414 - For DIN rail socket SRD-SGR2 - Green Led, 6VDC to 24VDC (+ on terminal A1)
[mm] [ mm ] 7537,5 Technical data Technical data Rated current 2x8A Rated voltage 300VACTest voltage coil/contacts 5’000Veff Insulation class (IEC 60664-1) 250VAC Creepage resistance CTI 250 Weight approx. 4g Ambient temperature -40°C to +80°C Packing unit 100 pcs Approvals UL, cULUL File E113714 - PCB socket for SGR282Z, SIR282- With hold down clip - Soldering tags for PCB - 2.5mm pinning Rated current 2x8ARated voltage 300VACTest voltage coil/contacts 4’000VeffInsulation class (IEC 60664-1) 250VACCreepage resistance CTI 250 Weight approx. 40g Ambient temperature -25°C to +80°CCross sections for connection with - wires 2x2.5mm
A1 +A2 - 2 - end sleeves for strands 2x1.5mm
2 Torque max. 0,8 Nm Packing unit 20 pcs Approvals UL, cUL UL File E113714
