ElectroCraft

powering innovation™

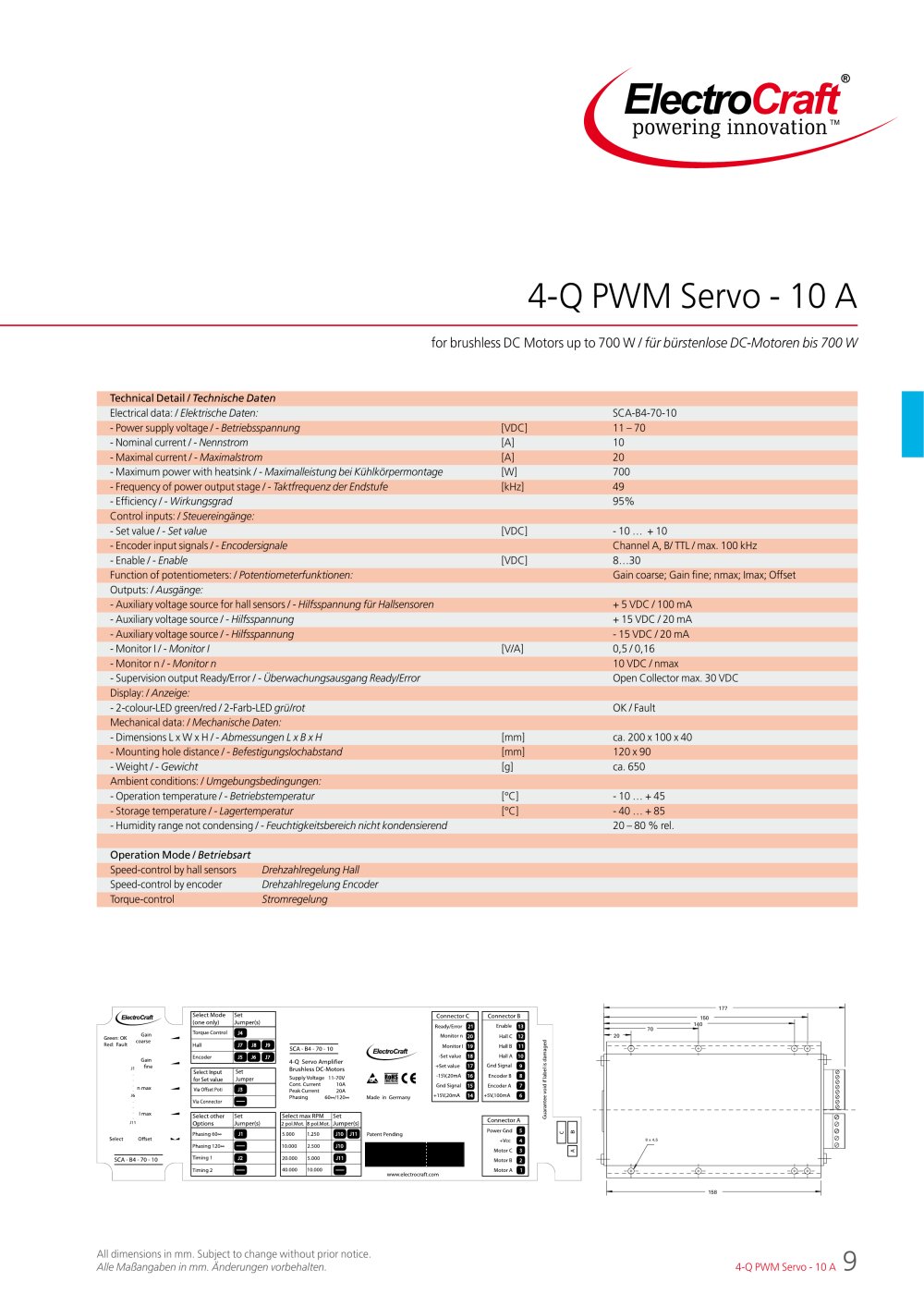

4-Q PWM Servo - 10 A

for brushless DC Motors up to 700 W /für bürstenlose DC-Motoren bis 700 W



Electrical data: / Elektrische Daten:		SCA-B4-70-10
- Power supply voltage / - Betriebsspannung	[VDC]
- Nominal current/- Nennstrom	[A]	10
- Maximal current/- Maximalstrom	[A]
- Maximum power with heatsink/ - Maximalleistung bei Kühlkörpermontage	[W]	700
- Frequency of power output stage / - Taktfrequenz der Endstufe	[kHz]
- Efficiency/ - Wirkungsgrad		95%

- Setvalue/- Set value	[VDC]	- 10 ... + 10
- Encoder input signals / - Encodersignale		Channel A, B/TTL/max. 100 kHz
- Enable/ - Enable	[VDC]	8...30
Function of potentiometers: / Potentiometerfunktionen:		Gain coarse; Gain fine; nmax; Imax; Offset
Outputs: / Ausgänge:
- Auxiliary voltage source for hall sensors / - Hilfsspannung für Hallsensoren		+ 5VDC/100mA
- Auxiliary voltage source / - Hilfsspannung		+ 15VDC/20mA
- Auxiliary voltage source / - Hilfsspannung		- 15VDC/20mA
-Monitori/- Monitor I	[V/A]	0,5/0,16
		10 VDC/nmax
- Supervision output Ready/Error / - Überwachungsausgang Ready/Error		Open Collector max. 30 VDC
Display: / Anzeige:
- 2-colour-LED green/red / 2-Farb-LED grü/rot		OK/Fault
Mechanical data: / Mechanische Daten:
- Dimensions LxWx H / - Abmessungen L x B x H	[mm]	ca. 200x 100x40
- Mounting hole distance / - Befestigungslochabstand	[mm]	120x90
-Weight/ - Gewicht	[g]	ca. 650
Ambient conditions: / Umgebungsbedingungen:
- Operation temperature/- Betriebstemperatur	ra	-10 ... + 45
- Storage temperature/- Lagertemperatur	PC]	-40 ... + 85
- Humidity range not condensing / - Feuchtigkeitsbereich nicht kondensierend		20-80% rei.
Operation Mode / Betriebsart

Speed-control by encoder Drehzahlregelung Encoder
Torque-control Stromregelung


	Connector C		Connector B
	Ready/Error Q		Enable Q
	Monitor n ^		HallC Q
	Monitori Q		Hall B Q
	-Setvalue Q		Hall A Q
	+Set value (Q		Gnd Signal Q
	-15V,20mA Q		EncoderB Q
	Gnd Signal		Encoder A Q
	+15V,20mA ^		+5V,100mA Q


□ne only)	Jumpers]		SCA-B4-70-10
brque Control	O
Hall	OOS
ncoder			4-Q Servo Amplifier Brushless DC-Motors SuDDtyVoltaae 11-70V

Select Input
Select Input		Cont Current 10A
		Cont Current 10A
Vu Offset Poti	o		Peak Current 2OA Phasing «W120-
Via Connector	B

Options	Jumpers)				JumpeKs
Options	Jumpers)		polJnot	apoLMot	JumpeKs
■basing *SOm*	a			1.250
Phasing 120«	a		0.000	*2500*	69
lmlng 1	a		0.000	5.000	GD
Timing 2	B		40.000	10.000	B

A HfiCC

Made in Germany

Select Offset «

SCA-B4-70-10

www.electrotraftcom

All dimensions in mm. Subject to change without prior notice. Alle Maßangaben in mm. Änderungen vorbehalten.

4-Q PWM Servo - 10 A 9
