ElectroCraft

powering innovation™

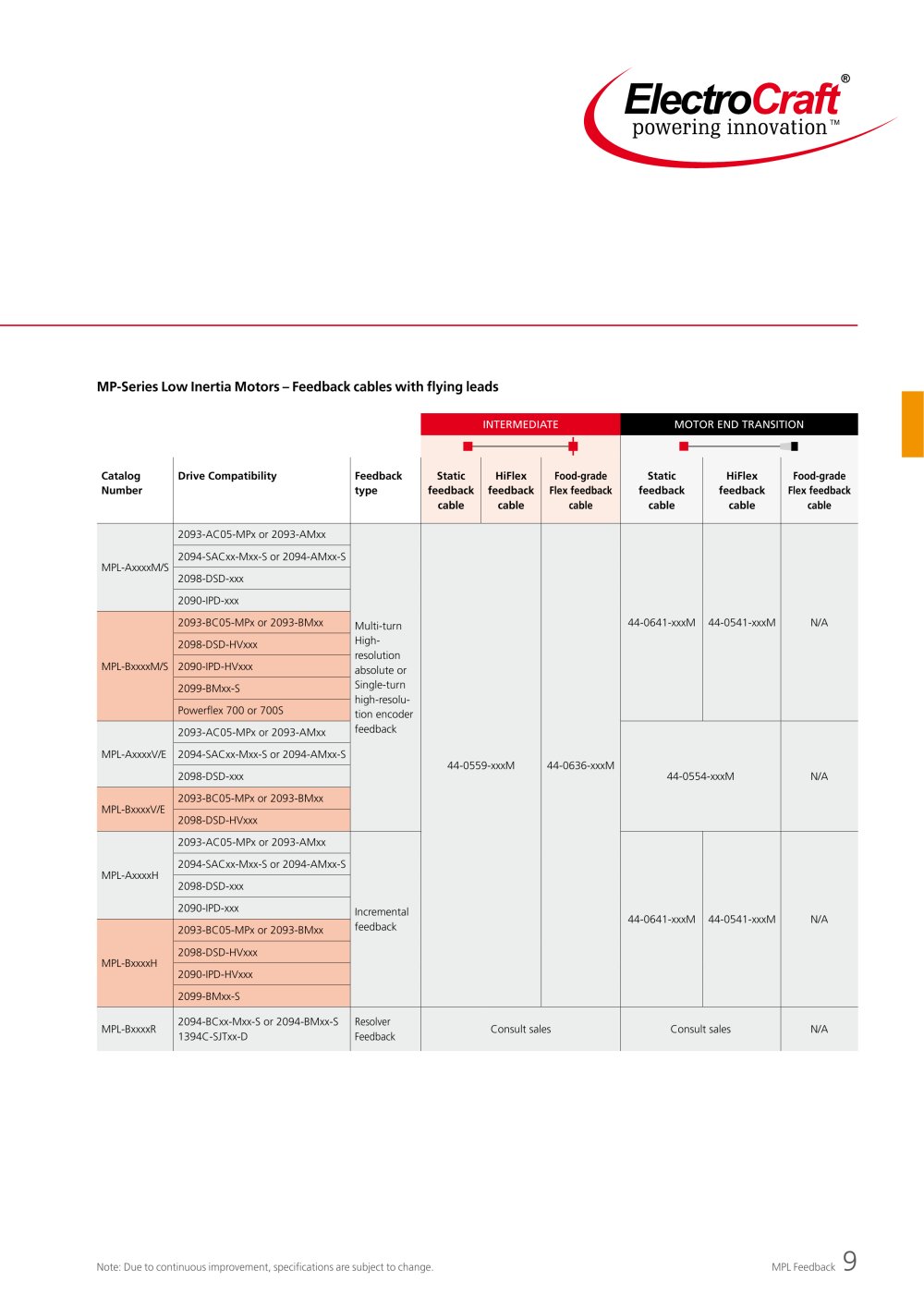

MP-Series Low Inertia Motors - Feedback cables with flying leads


				INTERMEDIATE			MOTOR END TRANSITION
	Catalog Number	Drive Compatibility	Feedback type	■ Static feedback cable	HiFlex feedback cable	—+ Food-grade Flex feedback cable	Static feedback cable	HiFlex feedback cable	m Food-grade Flex feedback cable
	MPL-AxxxxM/S	2093-AC05-MPx or 2093-AMxx 2094-SACxx-Mxx-S or 2094-AMxx-S 2098-DSD-xxx 2090-IPD-xxx	Multi-turn High-resolution absolute or Single-turn high-resolution encoder feedback	44-0559-xxxM		44-0636-xxxM	44-0641-xxxM	44-0541-xxxM	N/A
	MPL-BxxxxM/S	2093-BC05-MPx or 2093-BMxx 2098-DSD-HVxxx 2090-IPD-HVxxx 2099-BMxx-S Powerflex 700 or 700S					44-0641-xxxM	44-0541-xxxM	N/A
	MPL-AxxxxV/E	2093-AC05-MPx or 2093-AMxx 2094-SACxx-Mxx-S or 2094-AMxx-S 2098-DSD-xxx					44-0554-xxxM		N/A
	MPL-BxxxxV/E	2093-BC05-MPx or 2093-BMxx 2098-DSD-HVxxx					44-0554-xxxM		N/A
	MPL-AxxxxH	2093-AC05-MPx or 2093-AMxx 2094-SACxx-Mxx-S or 2094-AMxx-S 2098-DSD-xxx 2090-IPD-xxx	Incremental feedback				44-0641-xxxM	44-0541-xxxM	N/A
	MPL-BxxxxH	2093-BC05-MPx or 2093-BMxx 2098-DSD-HVxxx 2090-IPD-HVxxx 2099-BMxx-S	Incremental feedback				44-0641-xxxM	44-0541-xxxM	N/A
	MPL-BxxxxR	2094-BCxx-Mxx-S or 2094-BMxx-S 1394C-SJTxx-D	Resolver Feedback	Consult sales			Consult sales		N/A

Note: Due to continuous improvement, specifications are subject to chang

MPL Feedback 9
