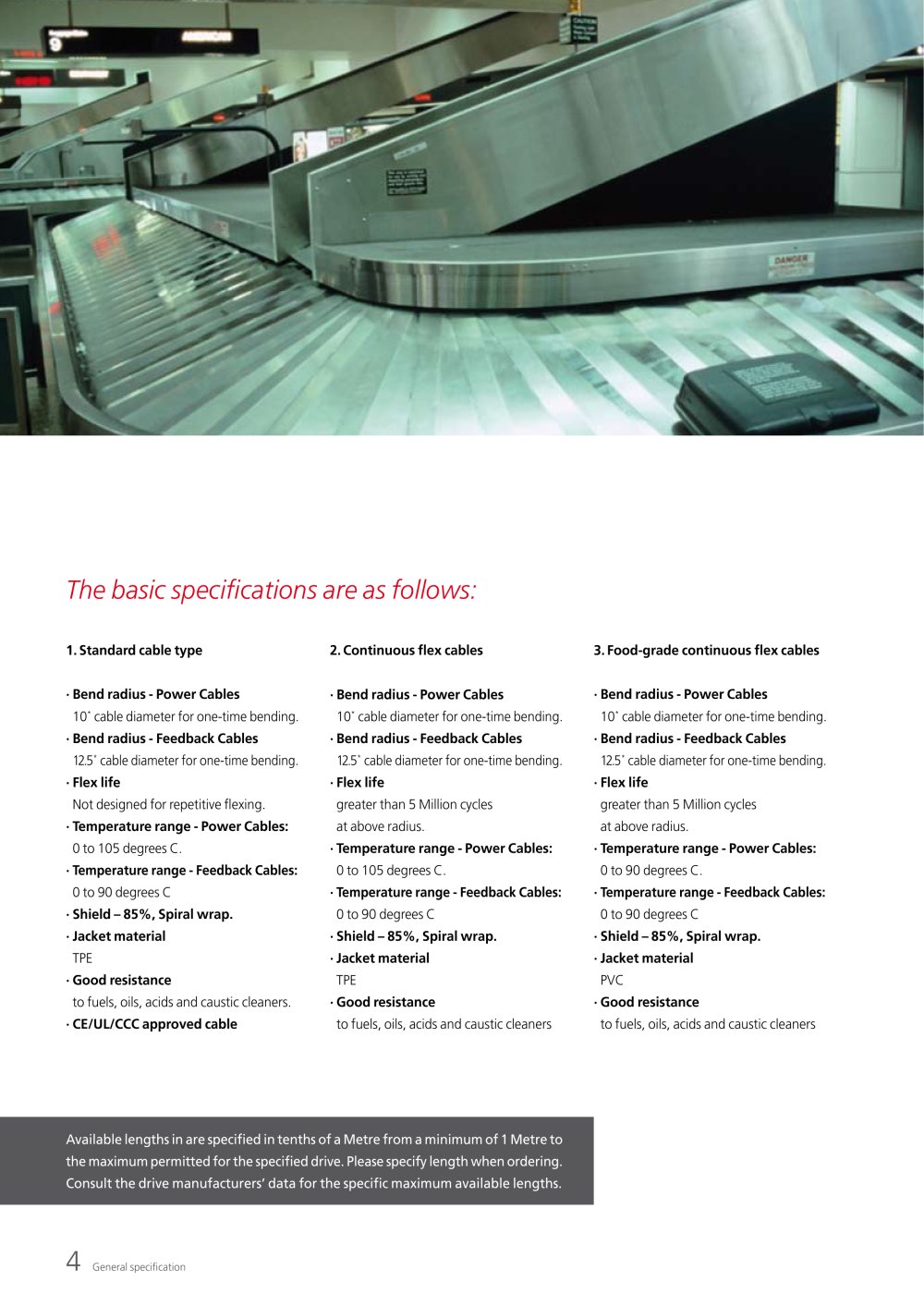

The basic specifications are as follows:

2. Continuous flex cables · Bend radius - Power Cables 3. Food-grade continuous flex cables 1. Standard cable type· Bend radius - Power Cables · Bend radius - Power Cables 10
* cable diameter for one-time bending. 10
* cable diameter for one-time bending. 10
* cable diameter for one-time bending. · Bend radius - Feedback Cables · Bend radius - Feedback Cables · Bend radius - Feedback Cables 12.5
* cable diameter for one-time bending. 12.5
* cable diameter for one-time bending. 12.5
* cable diameter for one-time bending. · Flex life Not designed for repetitive flexing. · Flex life greater than 5 Million cycles at above radius. · Flex life greater than 5 Million cycles at above radius. · Temperature range - Power Cables: 0 to 105 degrees C. · Temperature range - Power Cables: 0 to 90 degrees C. · Temperature range - Power Cables: 0 to 105 degrees C. · · · Temperature range - Feedback Cables: 0 to 90 degrees C Temperature range - Feedback Cables: 0 to 90 degrees C Temperature range - Feedback Cables: 0 to 90 degrees C · Shield – 85%, Spiral wrap. · Jacket material TPE · Good resistance to fuels, oils, acids and caustic cleaners. · Shield – 85%, Spiral wrap. · Jacket material TPE · Shield – 85%, Spiral wrap. · Jacket material PVC · Good resistance · Good resistance · CE/UL/CCC approved cable to fuels, oils, acids and caustic cleaners to fuels, oils, acids and caustic cleaners Available lengths in are specified in tenths of a Metre from a minimum of 1 Metre to the maximum permitted for the specified drive. Please specify length when ordering. Consult the drive manufacturers’ data for the specific maximum available lengths.

Cable Assemblies - 9175 4

General specification
