ElectroCraft

powering innovation™

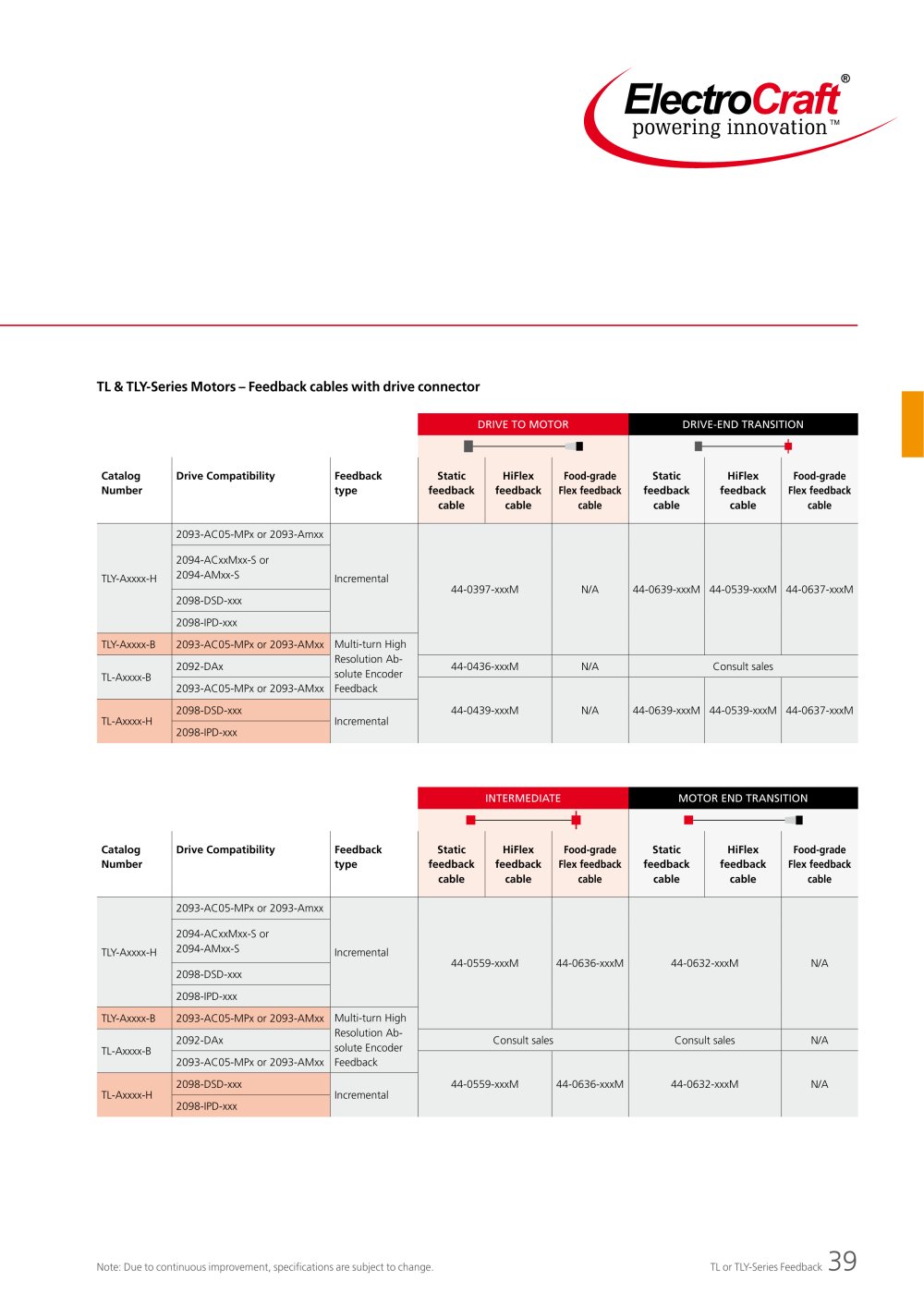

TL & TLY-Series Motors - Feedback cables with drive connector


				DRIVE TO MOTOR			DRIVE-END TRANSITION
	Catalog Number	Drive Compatibility	Feedback type	Static feedback cable	HiFlex feedback cable	—« Food-grade Flex feedback cable	■Static feedback cable	HiFlex feedback cable	4 Food-grade Flex feedback cable
	TLY-Axxxx-H	2093-AC05-MPx or 2093-Amxx 2094-ACxxMxx-S or 2094-AMxx-S 2098-DSD-xxx 2098-IPD-xxx	Incremental	44-0397-xxxM		N/A	44-0639-xxxM	44-0539-xxxM	44-0637-xxxM
	TLY-Axxxx-B	2093-AC05-MPx or 2093-AMxx	Multi-turn High Resolution Absolute Encoder Feedback	44-0397-xxxM		N/A	44-0639-xxxM	44-0539-xxxM	44-0637-xxxM
	TL-Axxxx-B	2092-DAx		44-0436-xxxM		N/A	Consult sales
	TL-Axxxx-B	2093-AC05-MPx or 2093-AMxx		44-0439-xxxM		N/A	44-0639-xxxM	44-0539-xxxM	44-0637-xxxM
	TL-Axxxx-H	2098-DSD-xxx 2098-IPD-xxx	Incremental	44-0439-xxxM		N/A	44-0639-xxxM	44-0539-xxxM	44-0637-xxxM

INTERMEDIATE

MOTOR END TRANSITION


	Catalog Number	Drive Compatibility	Feedback type	Static feedback cable	HiFlex feedback cable	Food-grade Flex feedback cable	Static feedback cable	HiFlex feedback cable	Food-grade Flex feedback cable
	TLY-Axxxx-H	2093-AC05-MPx or 2093-Amxx 2094-ACxxMxx-S or 2094-AMxx-S 2098-DSD-xxx 2098-IPD-xxx	Incremental	44-0559-xxxM		44-0636-xxxM	44-0632-xxxM		N/A
	TLY-Axxxx-B	2093-AC05-MPx or 2093-AMxx	Multi-turn High Resolution Absolute Encoder Feedback	44-0559-xxxM		44-0636-xxxM	44-0632-xxxM		N/A
	TL-Axxxx-B	2092-DAx		Consult sales			Consult sales		N/A
	TL-Axxxx-B	2093-AC05-MPx or 2093-AMxx		44-0559-xxxM		44-0636-xxxM	44-0632-xxxM		N/A
	TL-Axxxx-H	2098-DSD-xxx 2098-IPD-xxx	Incremental	44-0559-xxxM		44-0636-xxxM	44-0632-xxxM		N/A

Note: Due to continuous improvement, specifications are subject to chang
