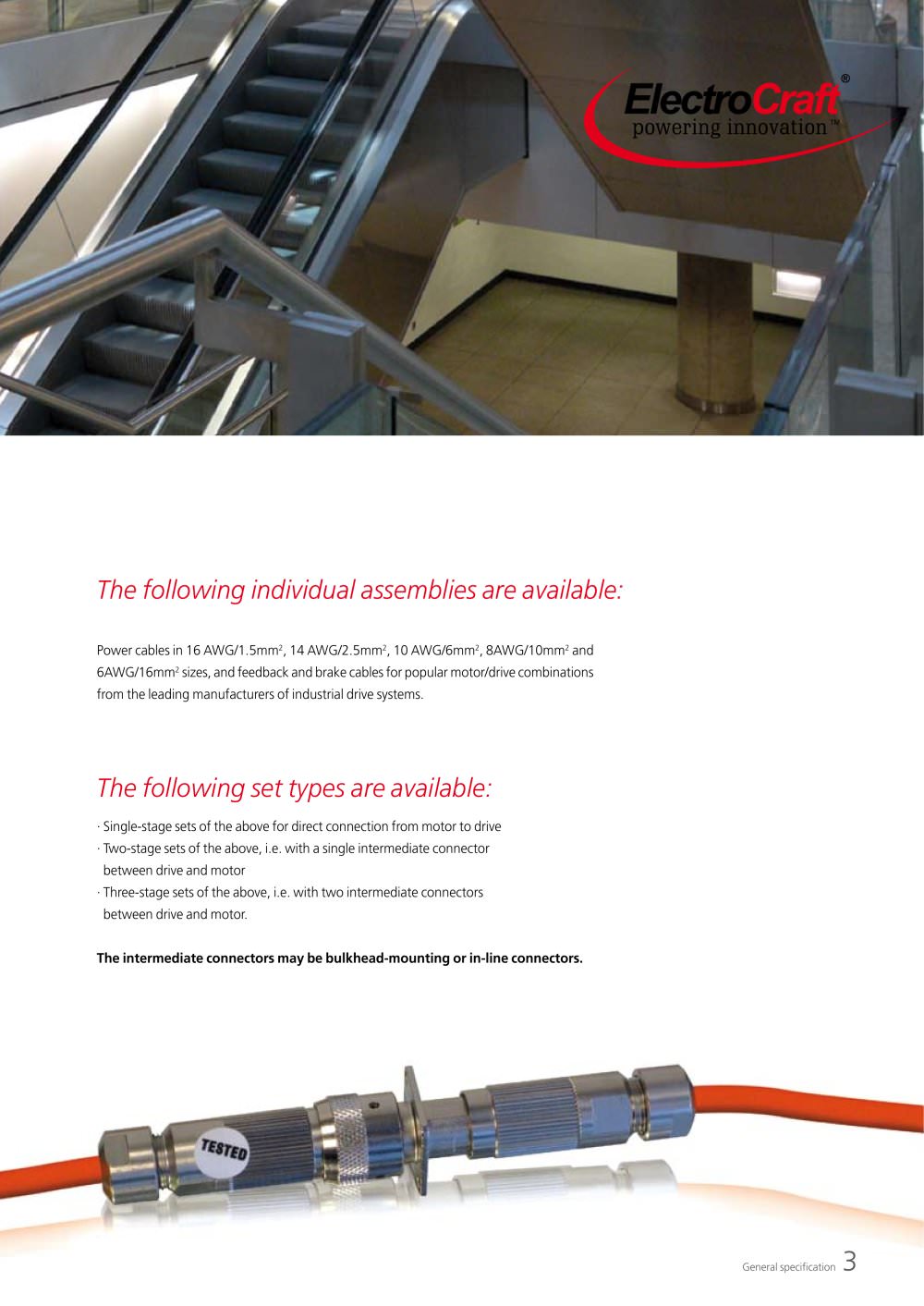

The following individual assemblies are available:
Power cables in 16 AWG/1.5mm2 , 14 AWG/2.5mm
2 , 10 AWG/6mm
2 , 8AWG/10mm
2 and 6AWG/16mm
2 sizes, and feedback and brake cables for popular motor/drive combinations from the leading manufacturers of industrial drive systems.
The following set types are available:
· Single-stage sets of the above for direct connection from motor to drive· Two-stage sets of the above, i.e. with a single intermediate connector between drive and motor· Three-stage sets of the above, i.e. with two intermediate connectors between drive and motor. The intermediate connectors may be bulkhead-mounting or in-line connectors.General specification
