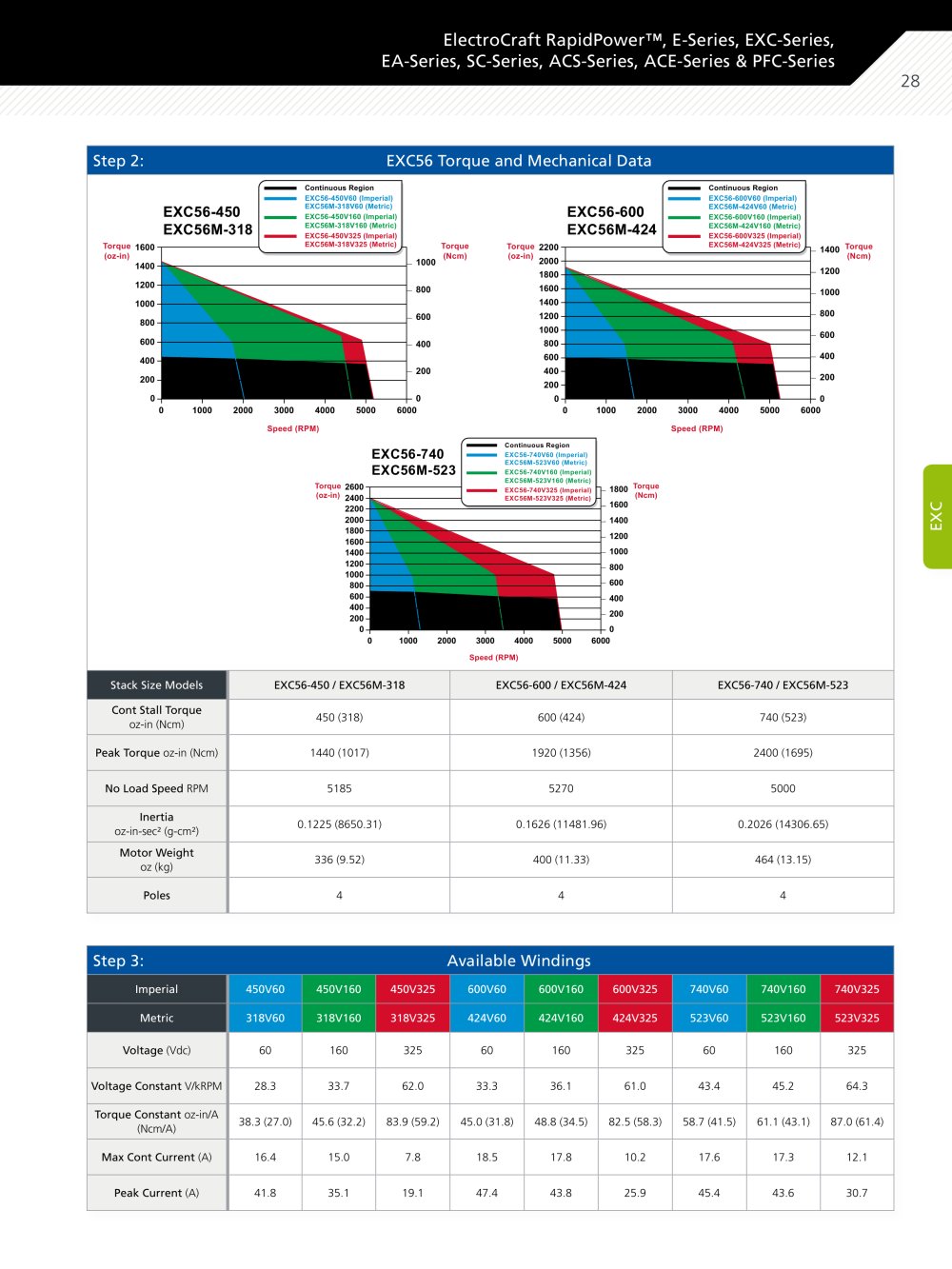

ElectroCraft RapidPower™, E-Series, EXC-Series, EA-Series & SC-Series
Step 2: EXC56 Torque and Mechanical Data
Torque 1600 (oz-in)
1400 1200 1000 800 600 400 200 0
C56-450 C56M-318
Continuous Region C56-450 60 (Imperial) C56M-318 60 (Metric) C56-450 160 (Imperial) C56M-318 160 (Metric) C56-450 325 (Imperial) C56M-318 325 (Metric)
- 1000
Torque (Ncm)
Torque 2200
(oz-in) 2000
1800 1600 1400 1200 1000 800 600 400 200 0
C56-600 C56M-424
Continuous Region C56-600 60 (Imperial) C56M-424 60 (Metric) C56-600 160 (Imperial) C56M-424 160 (Metric) C56-600 325 (Imperial) C56M-424 325 (Metric)
1400
- 1200 1000
- 800 600 400 200 0
Torque (Ncm)
800
600
400
200
0
0
1000
2000
3000 4000 Speed (RPM)
5000
6000
0
1000
2000
3000 4000 Speed (RPM)
5000
6000
Torque 2600 <oz-in) 2400 2200 2000 1800 1600 1400 1200 1000 800 600 400 200 0
!_ 1800 Torque (Ncm)
- 1600 1400 1200 1000 800
- 600
- 400
- 200 0
0
1000
2000
3000 4000 Speed (RPM)
5000
6000
Stack Size Models
EXC56-450 / EXC56M-318
EXC56-600 / EXC56M-424
EXC56-740 / EXC56M-523
Cont Stall Torque
oz-in (Ncm)
450 (318)
600 (424)
740 (523)
Peak Torque
oz-in (Ncm)
1440 (1017)
1920 (1356)
2400 (1695)
No Load Speed
RPM
5185
5270
5000
Inertia
oz-in-sec2 (g-cm2)
0.1225 (8650.31)
0.1626 (11481.96)
0.2026 (14306.65)
Motor Weight
oz(kg)
336 (9.52)
400 (11.33)
464 (13.15)
Poles
4 |4 1 4
U
X
LU
Step 3: Available Windings
Imperial
450V160
450V325
600V60
600V160
600V325
740V160
740V325
Metric
318V60
318V160
318V325
424V60
424V160
424V325
523V60
523V160
523V325
Voltage
(Vdc)
60
160
325
60
160
325
60
160
325
Voltage Constant
V/kRPM
28.3
33.7
62.0
33.3
36.1
61.0
43.4
45.2
64.3
Torque Constant
oz-in/A (Ncm/A)
38.3 (27.0)
45.6 (32.2)
83.9 (59.2)
45.0 (31.8)
48.8 (34.5)
82.5 (58.3
)
58.7(41.5)
61.1 (43.1)
87.0(61.4)
Max Cont Current
(A)
16.4
15.0
7.8
18.5
17.8
10.2
17.6
17.3
12.1
Peak Current
(A)
41.8
35.1
19.1
47.4
43.8
25.9
45.4
43.6
30.7
