Hall Effect Sensors

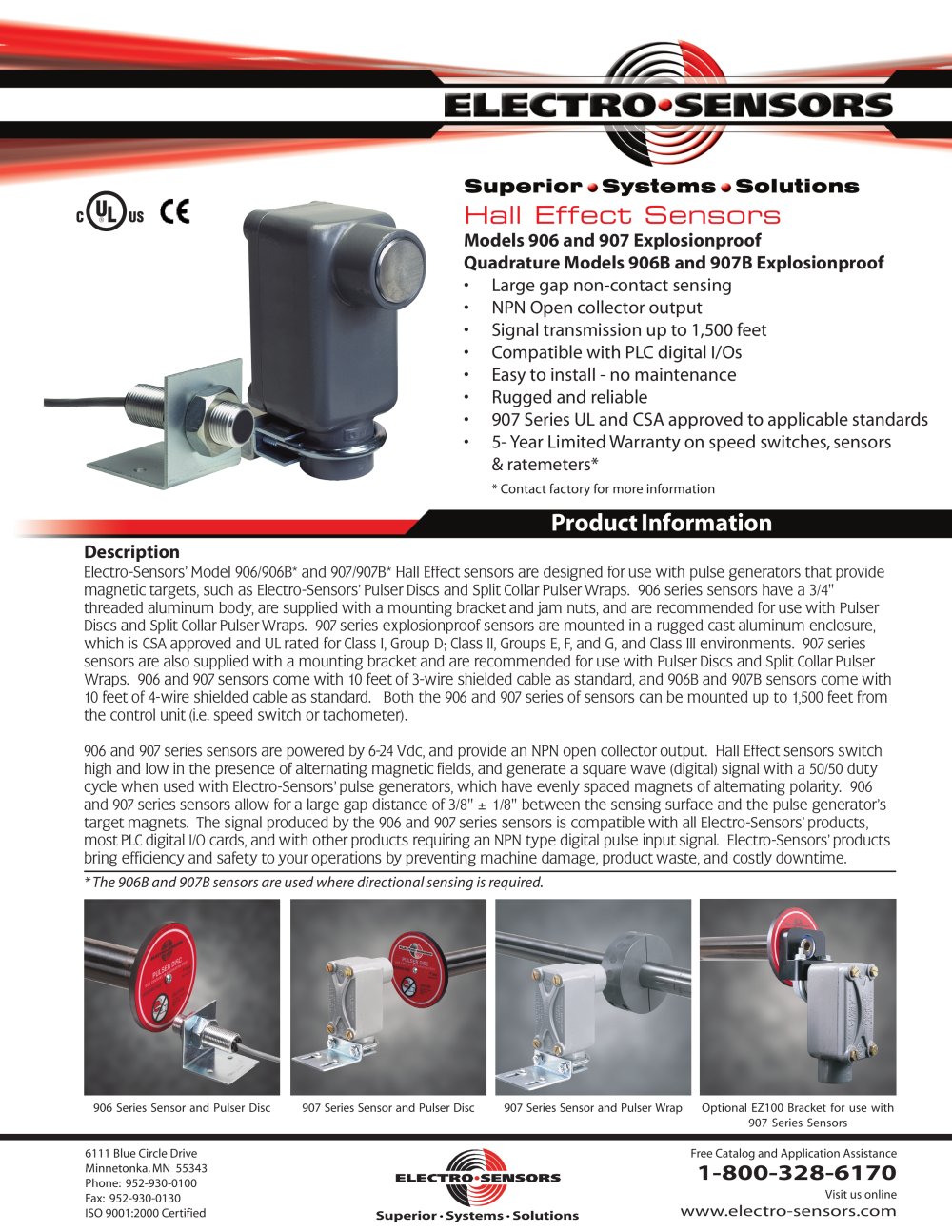

Models 906 and 907 ExplosionproofQuadrature Models 906B and 907B Explosionproof •Large gap non-contact sensing •NPN Open collector output •Signal transmission up to 1,500 feet •Compatible with PLC digital I/Os •Easy to install - no maintenance •Rugged and reliable •907 Series UL and CSA approved to applicable standards •5- Year Limited Warranty on speed switches, sensors& ratemeters*

* Contact factory for more information

Product Information

Description

Electro-Sensors’ Model 906/906B* and 907/907B* Hall Effect sensors are designed for use with pulse generators that providemagnetic targets, such as Electro-Sensors’ Pulser Discs and Split Collar Pulser Wraps. 906 series sensors have a 3/4" threaded aluminum body, are supplied with a mounting bracket and jam nuts, and are recommended for use with PulserDiscs and Split Collar Pulser Wraps. 907 series explosionproof sensors are mounted in a rugged cast aluminum enclosure,which is CSA approved and UL rated for Class I, Group D; Class II, Groups E, F, and G, and Class III environments. 907 series sensors are also supplied with a mounting bracket and are recommended for use with Pulser Discs and Split Collar PulserWraps. 906 and 907 sensors come with 10 feet of 3-wire shielded cable as standard, and 906B and 907B sensors come with10 feet of 4-wire shielded cable as standard. Both the 906 and 907 series of sensors can be mounted up to 1,500 feet from the control unit (i.e. speed switch or tachometer).906 and 907 series sensors are powered by 6-24 Vdc, and provide an NPN open collector output. Hall Effect sensors switchhigh and low in the presence of alternating magnetic fields, and generate a square wave (digital) signal with a 50/50 dutycycle when used with Electro-Sensors’ pulse generators, which have evenly spaced magnets of alternating polarity. 906and 907 series sensors allow for a large gap distance of 3/8" ± 1/8" between the sensing surface and the pulse generator’starget magnets. The signal produced by the 906 and 907 series sensors is compatible with all Electro-Sensors’ products,most PLC digital I/O cards, and with other products requiring an NPN type digital pulse input signal. Electro-Sensors’ productsbring efficiency and safety to your operations by preventing machine damage, product waste, and costly downtime. * The 906B and 907B sensors are used where directional sensing is required.

906 Series Sensor and Pulser Disc907 Series Sensor and Pulser Disc907 Series Sensor and Pulser WrapOptional EZ100 Bracket for use with907 Series Sensors 6111 Blue Circle DriveMinnetonka, MN 55343 Phone: 952-930-0100 Fax: 952-930-0130 ISO 9001:2000 CertifiedFree Catalog and Application Assistance
