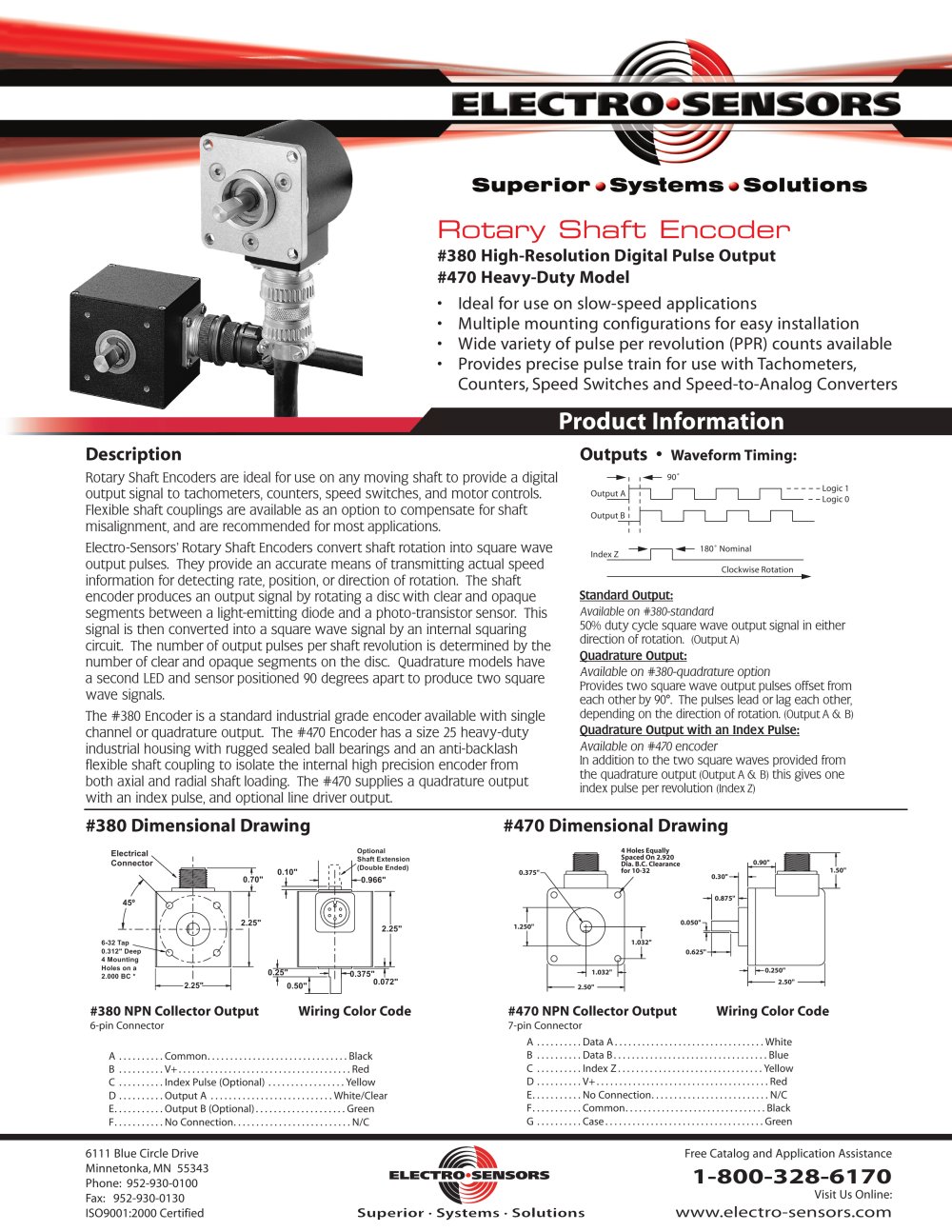

Description Rotary Shaft Encoders are ideal for use on any moving shaft to provide a digital output signal to tachometers, counters, speed switches, and motor controls. Flexible shaft couplings are available as an option to compensate for shaft misalignment, and are recommended for most applications. Electro-Sensors’ Rotary Shaft Encoders convert shaft rotation into square wave output pulses. They provide an accurate means of transmitting actual speed information for detecting rate, position, or direction of rotation. The shaft encoder produces an output signal by rotating a disc with clear and opaque segments between a light-emitting diode and a photo-transistor sensor. This signal is then converted into a square wave signal by an internal squaring circuit. The number of output pulses per shaft revolution is determined by the number of clear and opaque segments on the disc. Quadrature models have a second LED and sensor positioned 90 degrees apart to produce two square wave signals. The #380 Encoder is a standard industrial grade encoder available with single channel or quadrature output. The #470 Encoder has a size 25 heavy-duty industrial housing with rugged sealed ball bearings and an anti-backlash flexible shaft coupling to isolate the internal high precision encoder from both axial and radial shaft loading. The #470 supplies a quadrature output with an index pulse, and optional line driver output. 6111 Blue Circle Drive Minnetonka, MN 55343 Phone: 952-930-0100 Fax: 952-930-0130 ISO9001:2000 Certified Free Catalog and Application Assistance 1-800-328-6170 Visit Us Online: www.electro-sensors.com Rotary Shaft Encoder #380 High-Resolution Digital Pulse Output #470 Heavy-Duty Model • Ideal for use on slow-speed applications • Multiple mounting configurations for easy installation • Wide variety of pulse per revolution (PPR) counts available • Provides precise pulse train for use with Tachometers, Counters, Speed Switches and Speed-to-Analog Converters #380 Dimensional Drawing 0.70" 0.966" 45º 2.25" 2.25" 0.25" 0.50" 0.375" 2.25" 0.072" 0.10" Optional Shaft Extension (Double Ended) 6-32 Tap 0.312" Deep 4 Mounting Holes on a 2.000 BC * Electrical Connector #380 NPN Collector Output 6-pin Connector Outputs • Waveform Timing: Output A Output B Index Z 180° Nominal 90° Clockwise Rotation Logic 0 Logic 1 Standard Output: Available on #380-standard 50% duty cycle square wave output signal in either direction of rotation. (Output A) Quadrature Output: Available on #380-quadrature option Provides two square wave output pulses offset from each other by 90°. The pulses lead or lag each other, depending on the direction of rotation. (Output A & B) Quadrature Output with an Index Pulse: Available on #470 encoder In addition to the two square waves provided from the quadrature output (Output A & B) this gives one index pulse per revolution (Index Z) A . . . . . . . . . . Common. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black B . . . . . . . . . . V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Red C . . . . . . . . . . Index Pulse (Optional) . . . . . . . . . . . . . . . . . Yellow D . . . . . . . . . . Output A . . . . . . . . . . . . . . . . . . . . . . . . . . . White/Clear E. . . . . . . . . . . Output B (Optional) . . . . . . . . . . . . . . . . . . . . Green F. . . . . . . . . . . No Connection. . . . . . . . . . . . . . . . . . . . . . . . . . N/C Wiring Color Code #470 Dimensional Drawing 1.032" 1.250" 1.032" 2.50" 0.250" 2.50" 1.50" 0.30" 0.875" 0.375" 0.90" 0.625" 0.050" 4 Holes Equally Spaced On 2.920 Dia. B.C. Clearance for 10-32 #470 NPN Collector Output 7-pin Connector A . . . . . . . . . . Data A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . White B . . . . . . . . . . Data B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Blue C . . . . . . . . . . Index Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yellow D . . . . . . . . . . V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Red E. . . . . . . . . . . No Connection. . . . . . . . . . . . . . . . . . . . . . . . . . N/C F. . . . . . . . . . . Common. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black G . . . . . . . . . . Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Green Wiring Color Code Product Information
